PUMP
6
Pump enables the central heating water circulation in monothermic and bithermic types. Also in
monothermic types, it enables heating the domestic water passing through the plate heat-exchanger
by causing the central heating water short circuit circulation.
Pump is located on the hydroblock and has 3 speed stages. The pump has expansion vessel and
termomanometer connections and also an automatic air vent on it.

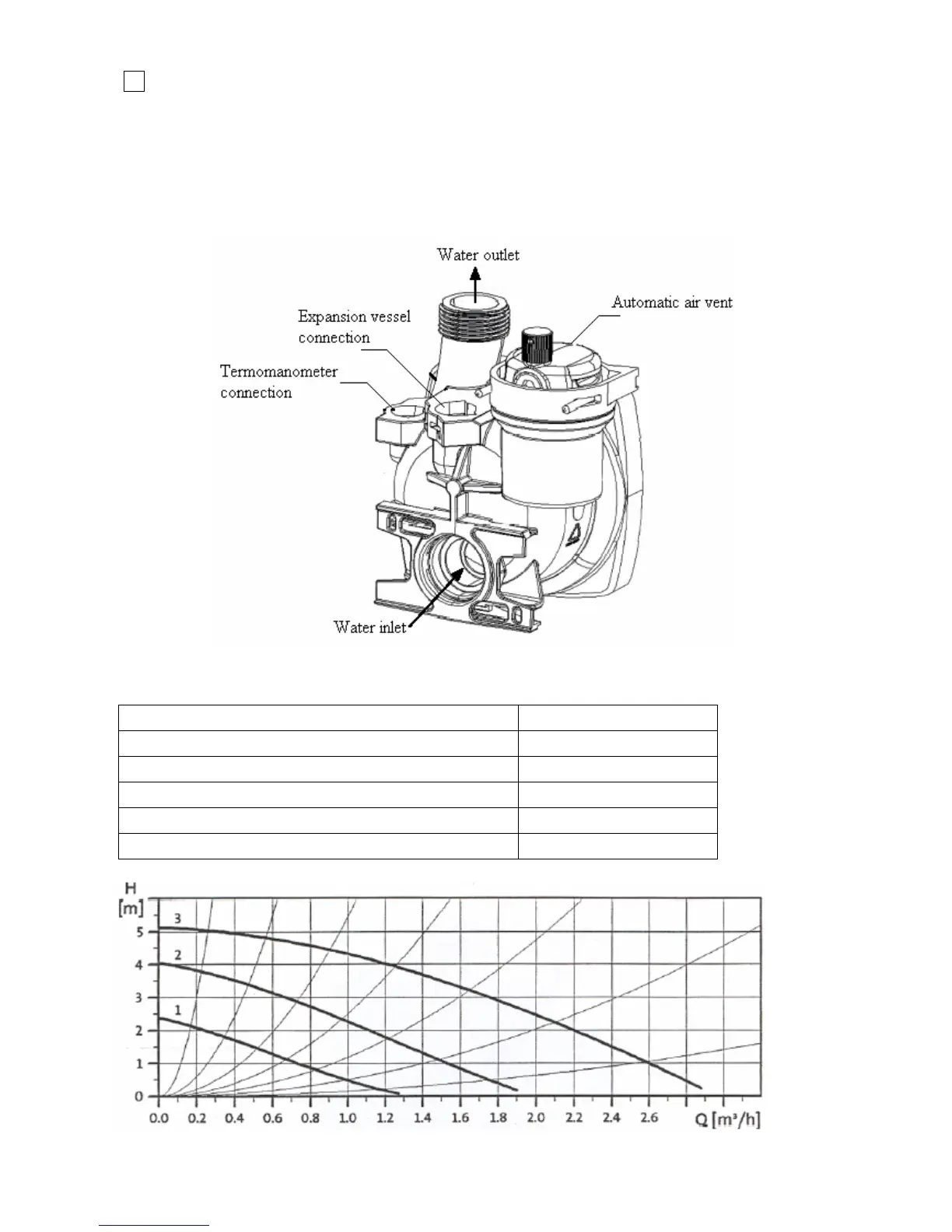

fig. 6 Pump
Table 8 Pump
Maximum Power 85 W
Speed Stages 3
Hydroblock connection (pump water inlet) Rapid connection (O-ring)
Pump water outlet connection G ¾” (External thread)
Termomanometer connection Rapid connection (O-ring)
Expansion vessel connection Rapid connection (O-ring)
fig. 7 Pump’s Characteristic Curve (Height & Flow)
18
