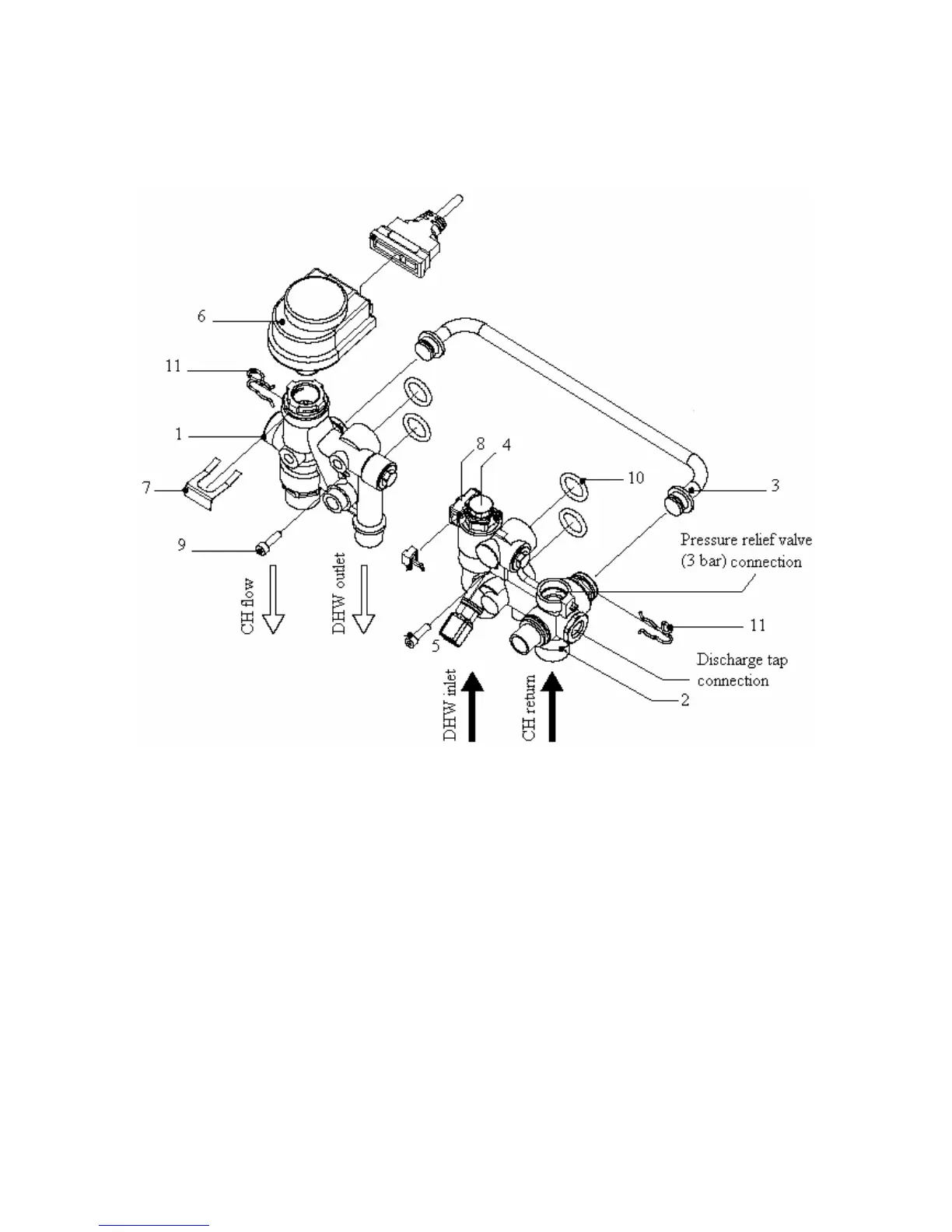

fig. 5b Monothermic Hydroblock
1 3 way electric valve
2 Inlet manifold
3 By-pass pipe
4 Water flow sensor
5 Filling tap
6 Valve motor
7 Valve motor clip
8 Hall effect sensor
9 Bolt
10 Oring
11 By-pass pipe clip
