Running mode selection is active.
L1 L2 L3
7 segment
display
L7 L8 L9
ON OFF
88
fast
blink
OFF
fast
blink
or
Running mode selection is active.
L1 L2 L3
7 segment
display
L7 L8 L9
ON OFF
88
OFF
fast
blink
fast
blink

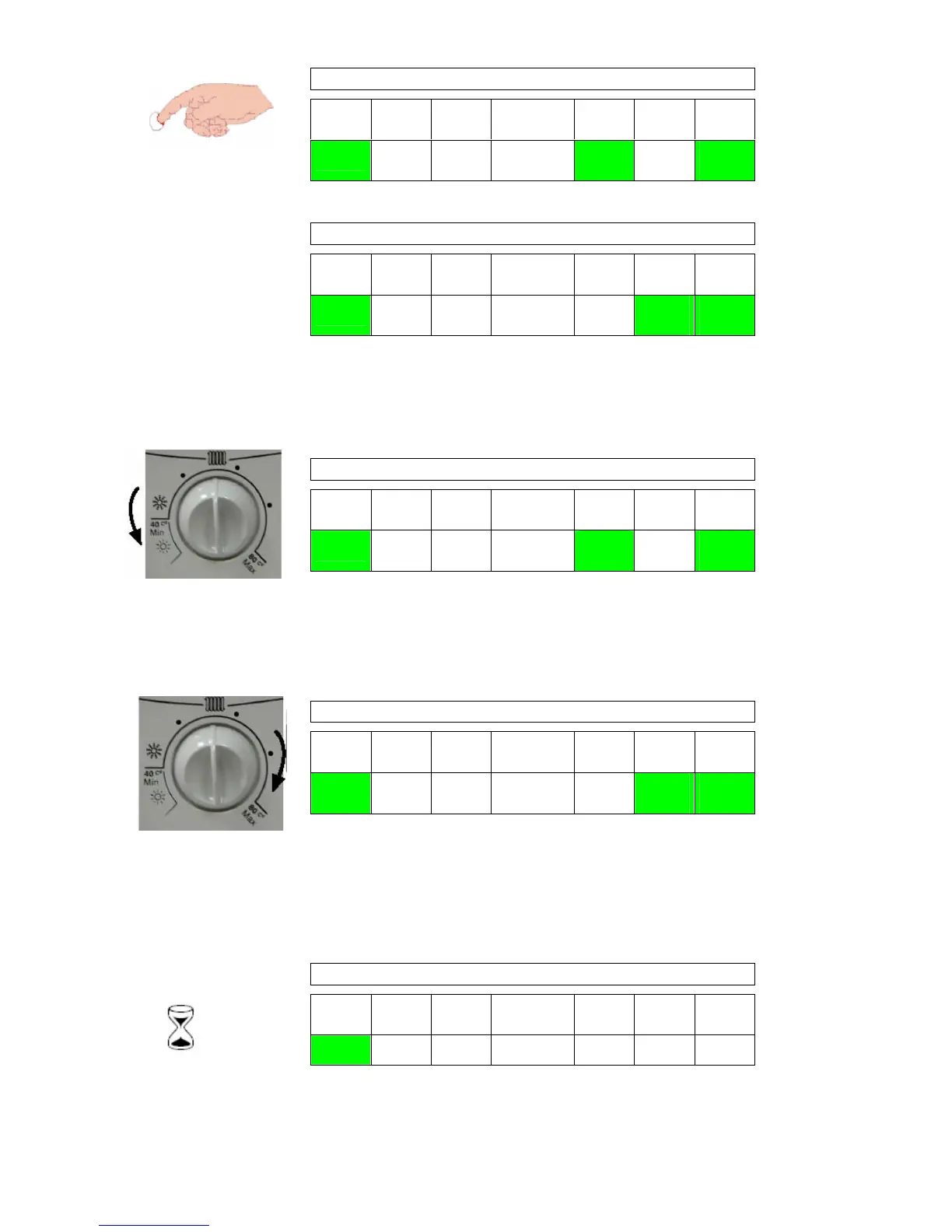

fig. 22a
- Turn the CH potentiometer the minimum position, LED L7 and L9 start blinking to indicate that
minimum running is being selected. (fig. 22b).
The appliance operates in min. load without modulation.
L1 L2 L3
7 segment
display
L7 L8 L9
ON OFF
88
fast
blink
OFF
fast
blink
fig. 22b
- Turn the CH potentiometer the maximum position, LED L8 and L9 start blinking to indicate that
maximum running is being selected (fig. 22c).
The appliance operates in max. load without modulation.
L1 L2 L3
7 segment
display
L7 L8 L9
ON OFF
88
OFF
fast
blink
fast
blink
fig. 22c
- The selected running mode remains activated during 10 hours (fig. 22d) or it can be deactivated by
pressing the push-button again more than 5 seconds (fig. 22e). If running mode is started in
stand-by mode, the system goes back to stand-by mode after the deactivation of the mode.
39
after
10 hours
fig. 22d
Stand – by
L1 L2 L3
7 segment
display
L7 L8 L9
ON OFF OFF
88
OFF OFF OFF
