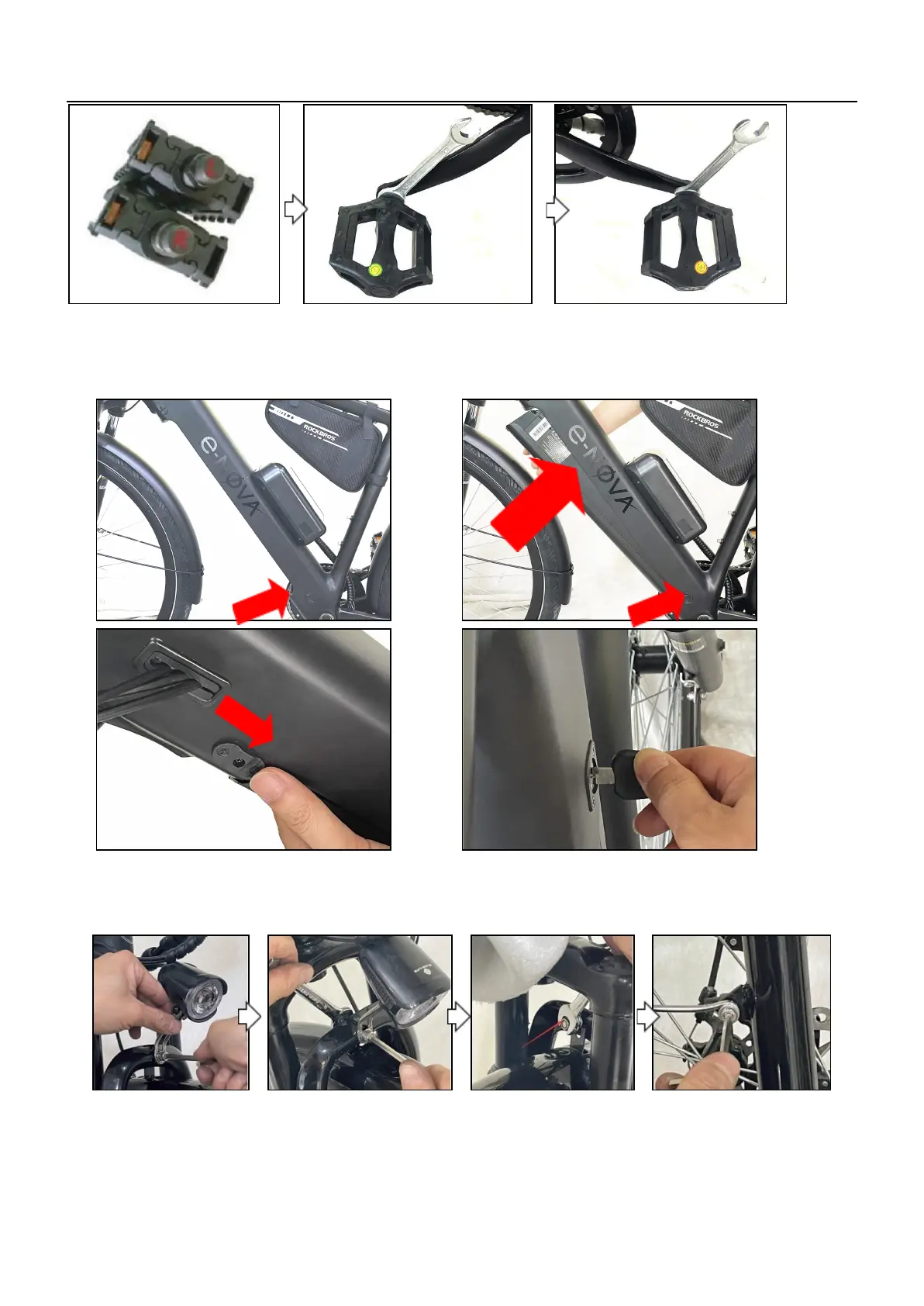

8.6 The battery
①Find the bottom of the battery hole ; ② Insert the battery-end firstly, then put the battery-head inside the
frame.hear the sound of the key lock, then it is locked. ③ Push the sliding lock on the side of the left of the
frame to lock. ④ Check the key then confirm the battery is locked.
① ②
③ ④
8.7 The front light and the front mudguard
①Take the screw out and pass the screw through the center hole of the front light corresponding to the front
fork gantry, paying attention to the gasket on the screw head.
②Take 4# hex key, fix the front screw and lock the screw, pay attention to the position of the front light.
