REX12-Tx-E electronic circuit protector
2045
5
4
REX12-Tx-E electronic circuit protector
Overview of ordering number codes
Supply module: EM12-T01-001-DC24V-40A-E
Circuit
protectors:
1-channel
REX12-TA1-107-DC24V-1A-E
REX12-TA1-107-DC24V-1A-CL2-E (Class2)
REX12-TA1-107-DC24V-2A-E
REX12-TA1-107-DC24V-2A-CL2-E (Class2)
REX12-TA1-107-DC24V-3A-E
REX12-TA1-107-DC24V-3A-CL2-E (Class2)
REX12-TA1-107-DC24V-4A-E
REX12-TA1-107-DC24V-4A-CL2-E (Class2)
REX12-TA1-107-DC24V-6A-E
REX12-TA1-107-DC24V-8A-E
REX12-TA1-107-DC24V-10A-E
Circuit
protectors:
2-channel
REX12-TA2-107-DC24V-1A/1A-E
REX12-TA2-107-DC24V-1A/1A-CL2-E (Class2)
REX12-TA2-107-DC24V-2A/2A-E
REX12-TA2-107-DC24V-2A/2A-CL2-E (Class2)
REX12-TA2-107-DC24V-3A/3A-E
REX12-TA2-107-DC24V-3A/3A-CL2 (Class2)
REX12-TA2-107-DC24V-4A/4A-E
REX12-TA2-107-DC24V-4A/4A-CL2 (Class2)
REX12-TA2-107-DC24V-6A/6A-E
circuit protectors
2-channel,
adjustable
REX12D-TE2-100-DC24V-1A-4A-CL2-E (Class 2)
REX12D-TE2-100-DC24V-1A-10A-E

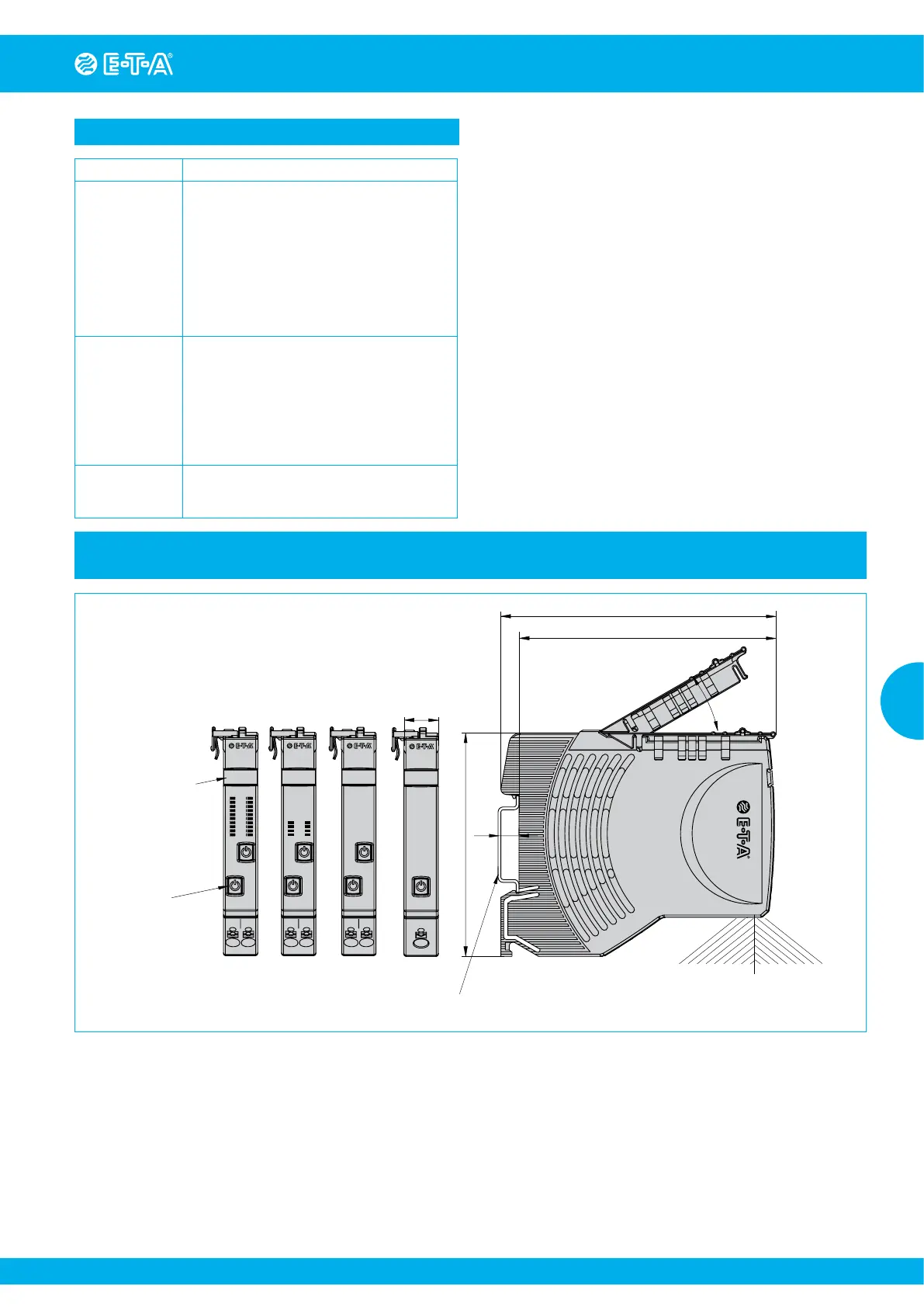

Dimensional drawing with terminal drawing: REX12-TA1-xxx-E/REX12-TA2-xxx-E/
REX12D-TE2-xxx-E circuit protectors
GERMANY
98.5
92
snap-on socket for
rail EN 60715-35x7.5
80
7.5
contact arm
12.5
REX12-
TA1-1xx-E
DC24V
xA
1-channel
Button for ON/OFF
or reset with
integral status
indication
Label e.g. from
Phoenix
Contact ZBF-12
2.1
LOAD +
REX12-
TA2-1xx-E
DC24V
xA
xA
2-channel
LOAD +
2.1 2.2
REX12-
TE2-1xx-E
DC24V
1-10A
1-10A
2-channel
LOAD +
2.1 2.2
10A
9A
8A
7A
6A
5A
4A
3A
2A
1A
REX12-
TE2-1xx-E
DC24V
Class 2
1-4A
1-4A
2-channel
LOAD +
2.1 2.2
4A
3A
2A
1A
operating
area
installation
area
