APPENDIX E
Single Amplifier Configuration with Manual Control

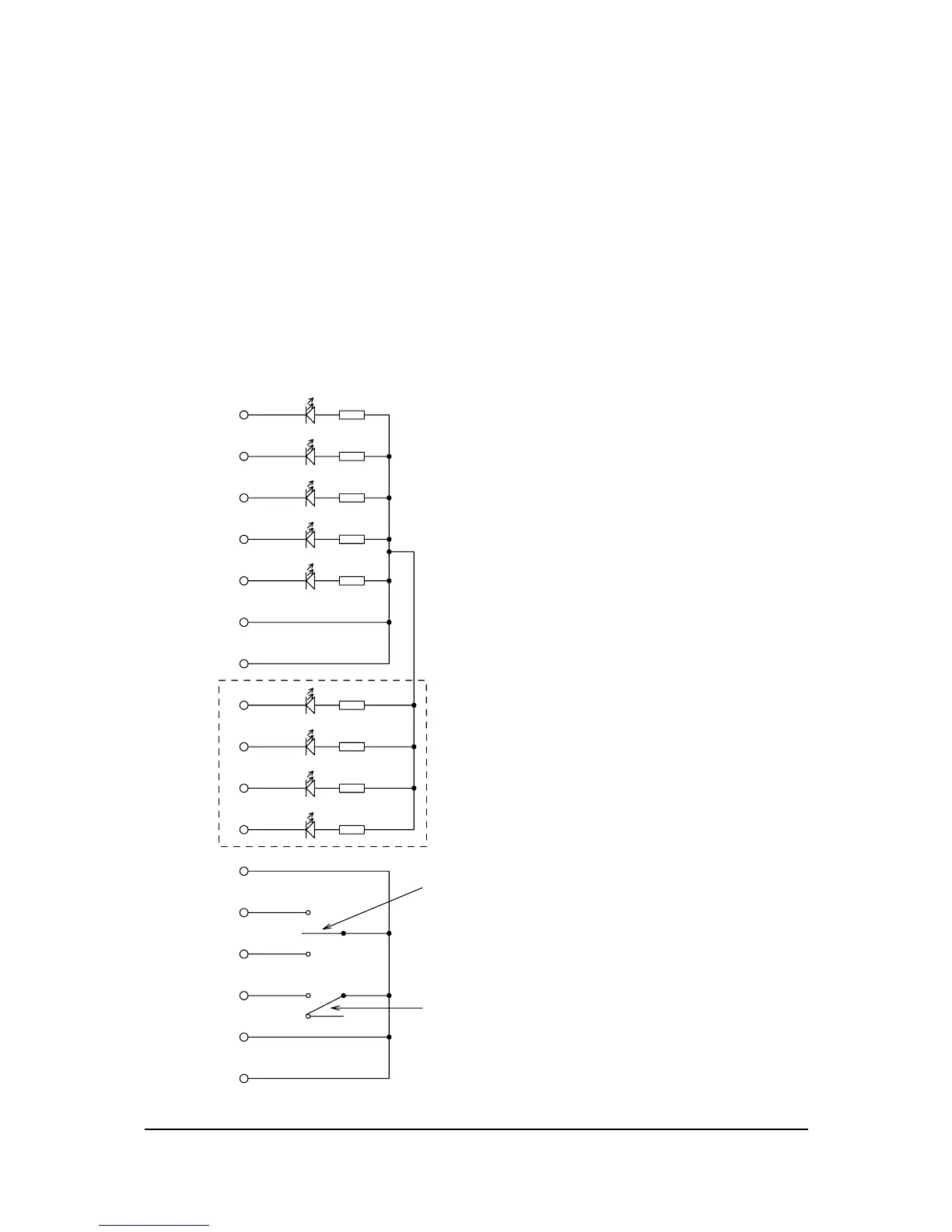

When operating in single amplifier mode with no serial bus controller, it is possible to provide
full control manually as shown below.
Notes:
1. If switch 2 is set to XMIT on application of prime power, the amplifier will automatically
enter the XMIT state after 3 minutes warm-up.
2. To enter the OFF state, switch 2 must be in the STBY position prior to the OFF state
being selected via switch 1.
3. The resistor values will depend on the type of LED used.
4. If specific fault indication is required, this circuit can be used. Refer to section 5.2.1 for
codes.
Printed in England
A
B
C
D
E
U
W
X
Y
Z
a
H
J
K
L
P
R
OFF
WARM UP
STBY
XMIT
SUM FLT
SEE NOTE 4
MUX
0
1
2
3
OFF
STBY
XMIT
STBY
SWITCH 1 MOMENTARY
ACTION CENTRE BIAS
SWITCH 2 (SPST) SHOWN
IN ‘STBY’ POSITION
HBN63xx-1, Issue 8, Page 49
