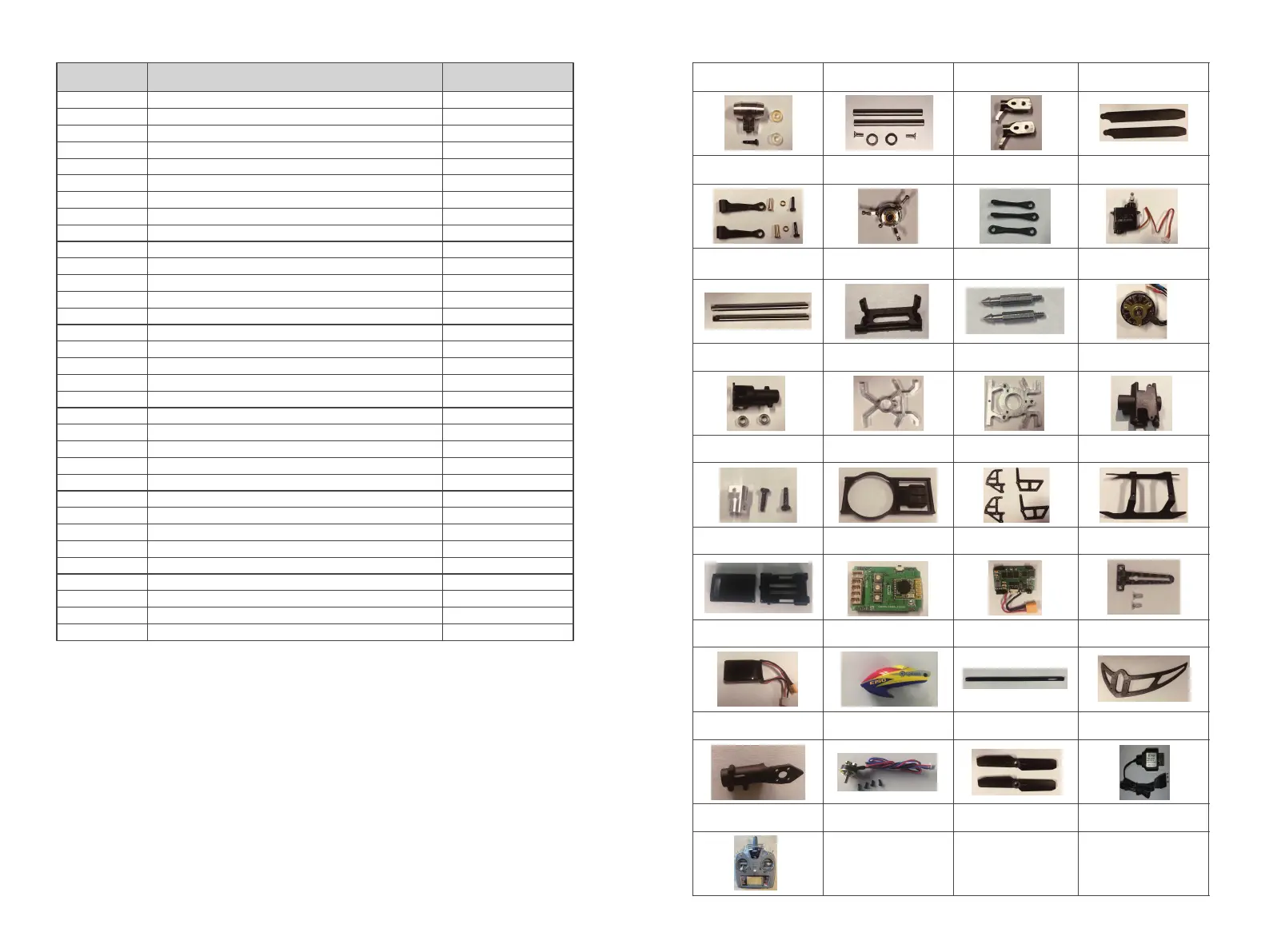

Illustrated Parts List Spare Parts List

Notice for beginners:

1.Please ﬂy with an instructor until you are conﬁdent enough.

2.Before ﬂying the model for the ﬁrst time, you need to fully understand all of

the functions provided by the transmitter and the responses of all of the

switches.

3.Do not attempt to ﬂy in 3D mode yet. Practice hovering and ﬂying in 6G mode

until you are familiar with it. Then you can practice hovering and ﬂying in 3D

mode. Once you are familiar with these two modes you can progress to

practicing inverted ﬂight with an instructor.

4.Practicing inverted hovering and inverted ﬂight will build a solid foundation

towards achieving proficiency in 3D ﬂying.

5.This model is not a toy and it can cause damage to people and property. It is

recommended that you practice with a simulator on a computer before doing

real 3D ﬂying with this model to minimize damage.

NO. PART NAME QUANTITY

Main Rotor Head

Main Grip Feathering Shaft Set

Main Blade Grip Set

Main Blade Set

Primary Linkage Set

Swashplate

Secondary Linkage Set

Servo

Main Shaft Set

Servo Mounting Plate

Canopy Mounting Posts

Main Motor

Main Shaft Bearing Mount

Metal Frame Plate A

Metal Frame Plate B

Tail Boom Mount

Main Shaft to Motor Connector

Landing frame Set

Carbon Fiber Side Frame Set

Landing Skid Set

Flight Control Unit Box

Integrated Flight Control Board

Power Distribution Board (PDB)

Anti Rotation Bracket

Battery

Canopy

Tail Boom

Tail Fin Set

Tail Motor Mount

Tail Motor

Tail Rotor

USB Charger

Radio Control

Part No: 2.32.01.E150-001

Part Name: Main Rotor Head

Part No: 2.32.01.E150-003

Part Name: Main Blade Grip Set

Part No: 2.32.01.E150-004

Part Name: Main Blade Set

Part No: 2.32.01.E150-006

Part Name: Swashplate

Part No: 2.32.01.E150-008

Part Name: Servo

Part No: 2.32.01.E150-009

Part Name: Main Shaft Set

Part No: 2.32.01.E150-010 Part

Name: Servo Mounting Plate

Part No: 2.32.01.E150-012

Part Name: Main Motor

Part No: 2.32.01.E150-014 Part

Name: Metal Frame Plate A

Parit No: 2.32.01.E150-015 Part

Name: Metal Frame Plate B

Part No: 2.32.01.E150-016

Part Name: Tail Boom Mount

Part No: 2.32.01.E150-017

Part Name: Main Shaft to

Motor Connector

Part No: 2.32.01.E150-002

Part Name: Main Grip

Feathering Shaft Set

Part No: 2.32.01.E150-005

Part Name: Primary Linkage

Set

Part No: 2.32.01.E150-007

Part Name: Secondary Linkage

Set

Part No: 2.32.01.E150-011

Part Name: Canopy

Mounting Posts

Part No: 2.32.01.E150-013 Part

Name: Main Shaft Bearing

Mount

Part No: 2.32.01.E150-018 Part

Name：Landing frame Set

Part No: 2.32.01.E150-019

Part Name: Carbon Fiber

Side Frame Set

Part No: 2.32.01.E150-020

Part Name: Landing Skid Set

Part No: 2.32.01.E150-21

Part Name: Flight Control Unit Box

Part No: 2.32.01.E150-22

Part Name: Integrated Flight

Control Board

Part No: 2.32.01.E150-23 Part

Name: Power Distribution

Board (PDB)

Part No: 2.32.01.E150-24

Part Name: Anti Rotation

Bracket

Part No: 2.32.01.E150-25

Part Name：Battery

Part No: 2.32.01.E150-26

Part Name:: Canopy

Part: No: 2.32.01.E150-27

Part Name: Tail Boom

Part No: 2.32.01.E150-28

Part Name: Tail Fin Set

Part No: 2.32.01.E150-29

Part Name：Tail Motor Mount

Part No: 2.32.01.E150-30

Part Name: Tail Motor

Part No: 2.32.01.E150-31

Part Name: Tail Rotor

Part No: 1.03.04.001

Part Name：USB Charger

Part No: 2.03.01.T6-001

Part Name: Transmitter
