6

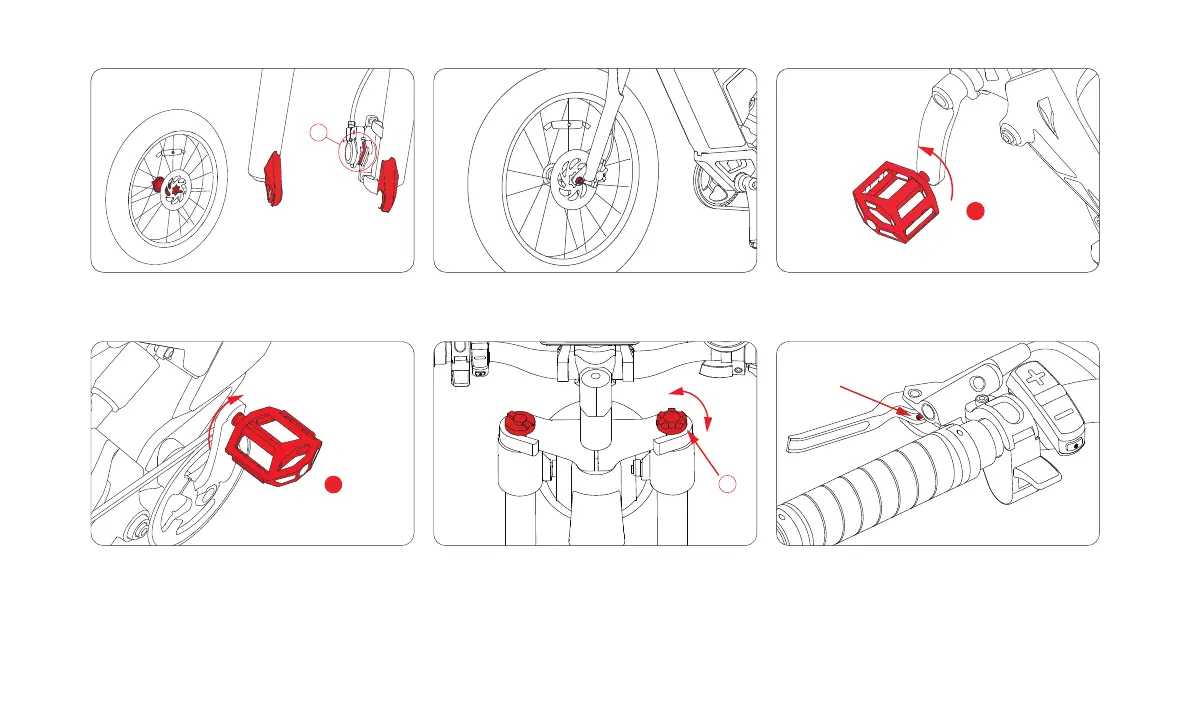

7. Place the wheel brake disc at the front clip
①
, and point the wheel snap release lever at
the front fork dropout.
10. Turn the right foot clockwise and slowly
spin in, tighten it with a wrench, so as not to
cause slippery teeth.
8. Put the wheels right and check the gap
between the brake disc and the clamp, after
the installation, tighten the nuts on both sides.
11. T wist knob
①
to lock/activate the shock
absorber; Air shock absorbers cannot be
adjusted by twisting the knob.
9. Install the pedal, to left and right sides of the
foot, and twist the left one counterclockwise.
12. As shown in the figure, the hydraulic brake
has a built-in screw , which can adjust the grip
distance.
�
R
�
L
