5

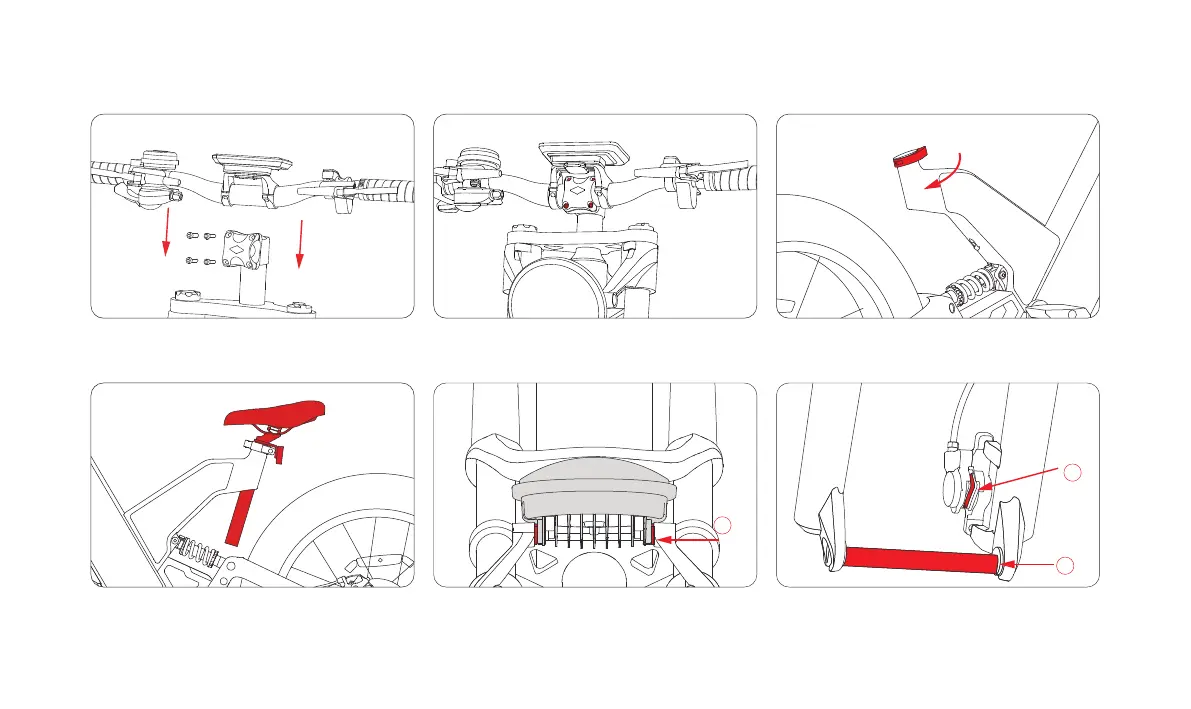

3. Installation instructions
1. Fix the front, unscrew the screws on the
slot first, and correspond the horizontal kit to
the slot.
2. Secure the horizontal kit, tighten it with
a hexagon screwdriver, and finish the
installation, as shown in the figure above.
3. Install the saddle, open the lock and insert
the saddle first.
4. After the saddle is inserted, make sure that
the seat does not turn back, do not shake,
and the lock is tightly fixed.
5. Place the gasket
①
inside of the bracket,
pass through the screws, and install the
headlights.
6. Remove the front fork protector rod
①
and
the front splinter protection plate
②
as shown
in the figure above.
�
