COMPONENTS

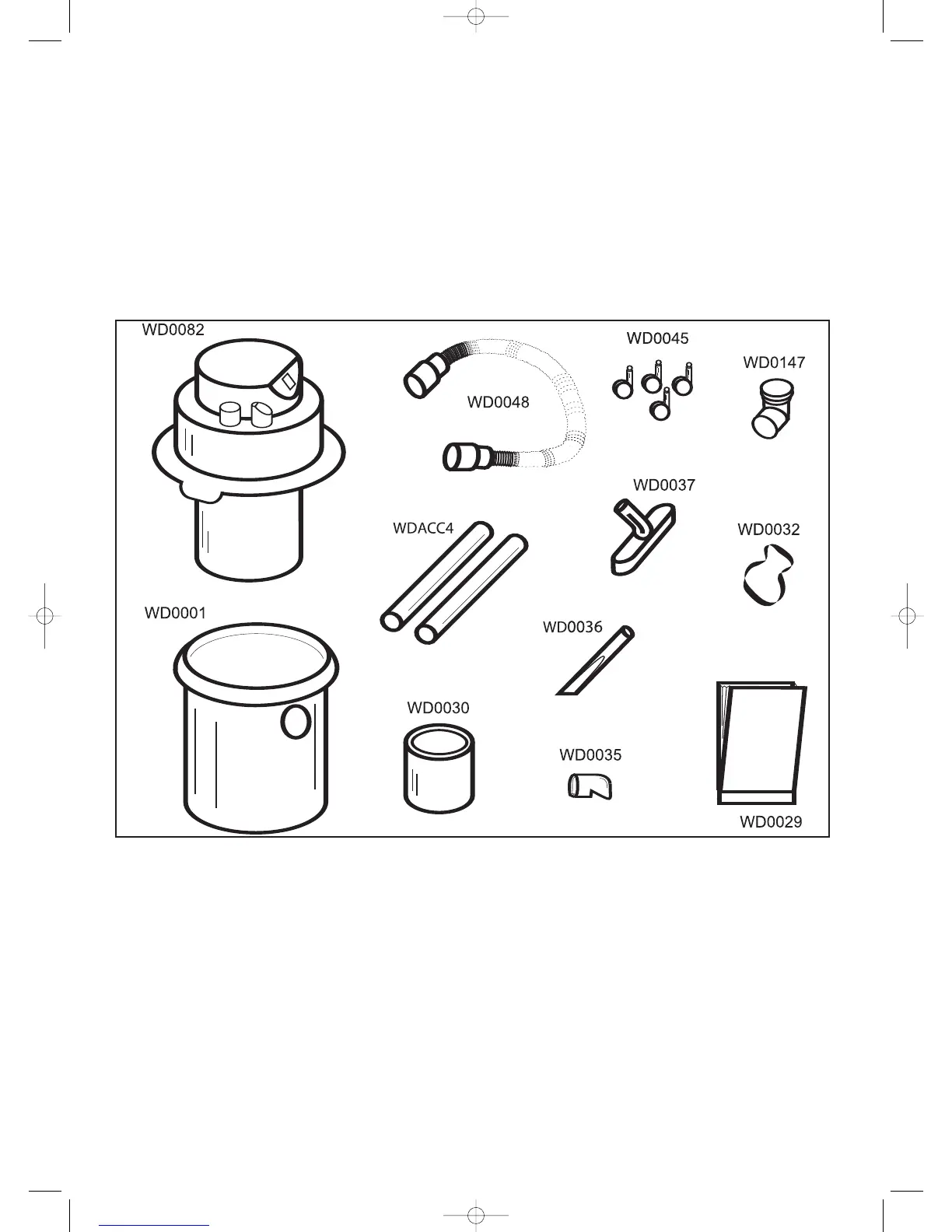

The following components are included in the kit (as illustrated below)
WD0001 Recovery Tank WD0036 Crevice Tool
WDACC4 Extension Tubes x 2 WD0037 Floor Head
WD0029 Paper Filter WD0045 Castors x 4
WD0030 Foam Filter WD0048 Hose
WD0032 Rubber Band WD0082 Motor Housing Assembly
WD0035 Hose Inlet WD0147 Outlet Elbow
UNPACKING AND SETTING UP
1) Remove all packing materials and accessories and lift unit out of the box.
2) Release the two tank clips and lift the motor housing off from the recovery tank.
3)
Remove all components from inside the tank.
4) Turn the tank upside down and insert the 4 castors. These should be pushed in hard until they stop.
Once installed these remain in place permanently.
5) Push the Hose Inlet into the hole in the side of the Recovery Tank. The Hose Inlet must be pushed in
from the outside of the Recovery Tank ensuring that the lug on the side of the Hose Inlet is lined up
with the slot in the hole in the Recovery
T
ank. Grasp the Hose Inlet from inside the Recovery
T
ank and
pull with an up and down motion to engage. Make sure that the clips on the top and bottom of the
Hose Inlet are fixed into place inside the Recovery Tank. Once installed the Hose Inlet can remain in
place permanently.
6) Fit the outlet elbow to the outlet on the motor housing. The outlet elbow can be used to deflect airflow
from the motor away from the work area.
