EarthQuake WE43 - PARTS BREAKDOWN

Operator's Manual
WE43 Series Walk-Behind Edger
Check for parts online at www.getearthquake.com or call 800-345-6007 M-F 8-516

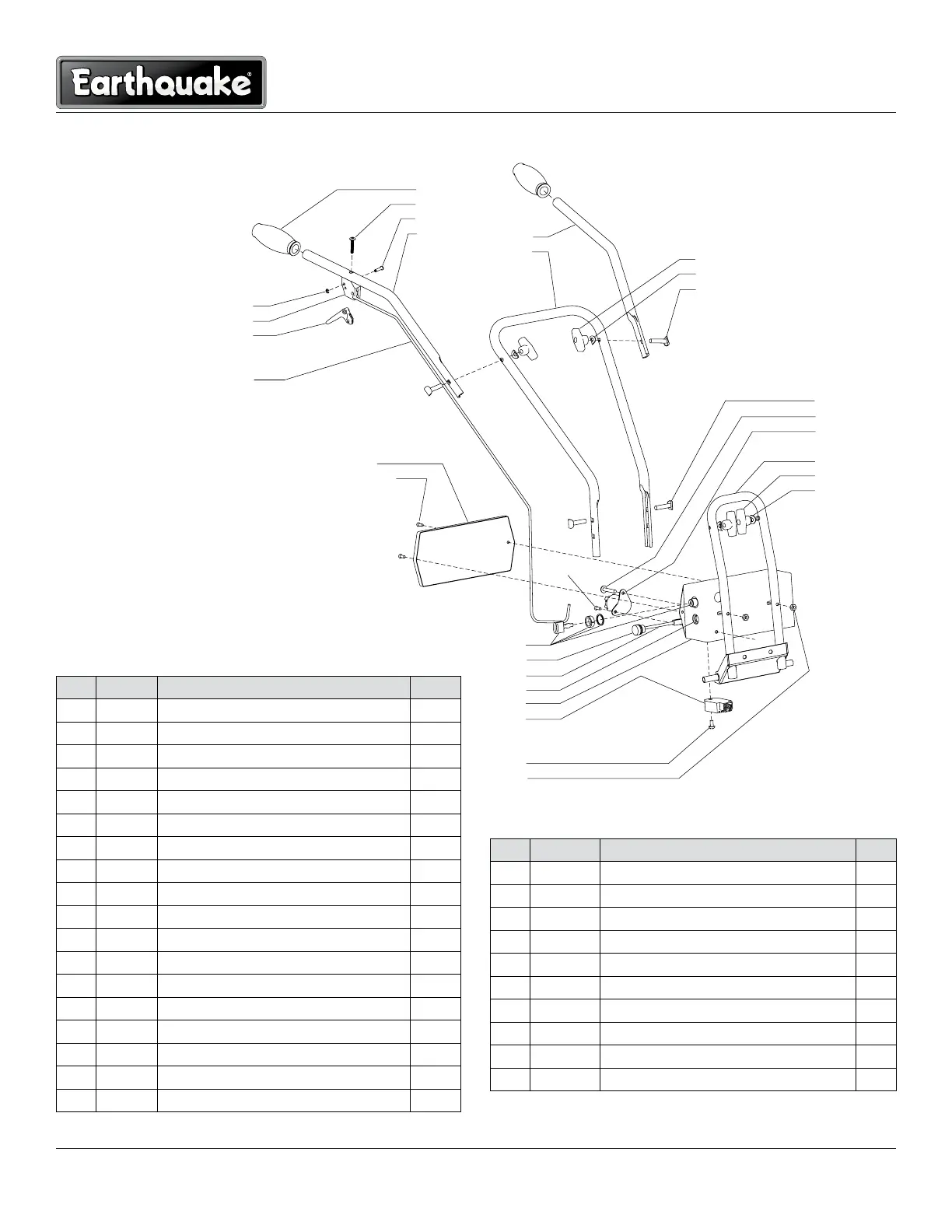

WE43E HANDLEBAR PARTS LIST
KEY PART # DESCRIPTION QT Y.
1 300471 BOLT, M5 X 12MM 3
2 46140 KEY SWITCH 1
3 4639 HANDLE GRIP 2
4 4640 NUT, THANDLE 4
5 4641 WASHER 4
6 4642 BOLT, HANDLE CLAMP 4
7 4656 BATTERY BOX MC43E 1
8 4657 COVER, BATTERY BOX 1
9 4659 VOLTAGE RECTIFIER 1
10 4660 SOLENOID 1
11 4661 CHARGER PIGTAIL 1
12 4662 NUT, CHARGER PIGTAIL 1
13 4663 CAP, CHARGER PIGTAIL 1
14 400041 THROTTLE CABLE 1
15 4669 BOLT, M6 X 1MM X 12MM PAN HD 1
16 4689 HANDLEBAR UPPER RIGHT 1
17 4690 HANDLEBAR UPPER LEFT 1
18 4693 HANDLEBAR MIDDLE 1
KEY PART # DESCRIPTION QT Y.
19 400008 HANDLEBAR LOWER 1
20 4800 THROTTLE HOUSING 1
21 4803 CLEVIS PIN, .188 DIA. GROOVED 1
22 4804 E CLIP, RETAINING RING FOR .188 PIN 1
23 4805 THROTTLE TRIGGER, LONG THROW 1
24 4814 BOLT 1024 X 11/4” PHILLIPS TRUSS HD 1
25 53106 NUT 1/420 BIWAY LOCK 2
26 6041612 BOLT 1/420 X 11/2” PTH ZN 2
 46122 BATTERY 12V 7A NOT SHOWN 1
 4681 BATTERY CHARGER NOT SHOWN 1
3 (2)
24
21
16
17
18
22
20
23
14
4 (2)
5 (2)
6 (2)
6 (2)
26 (2)
10
19
4 (2)
5 (2)
8
1 (2)
1
2
13
11
12
7
9
15
25 (2)
PARTS BREAKDOWN
