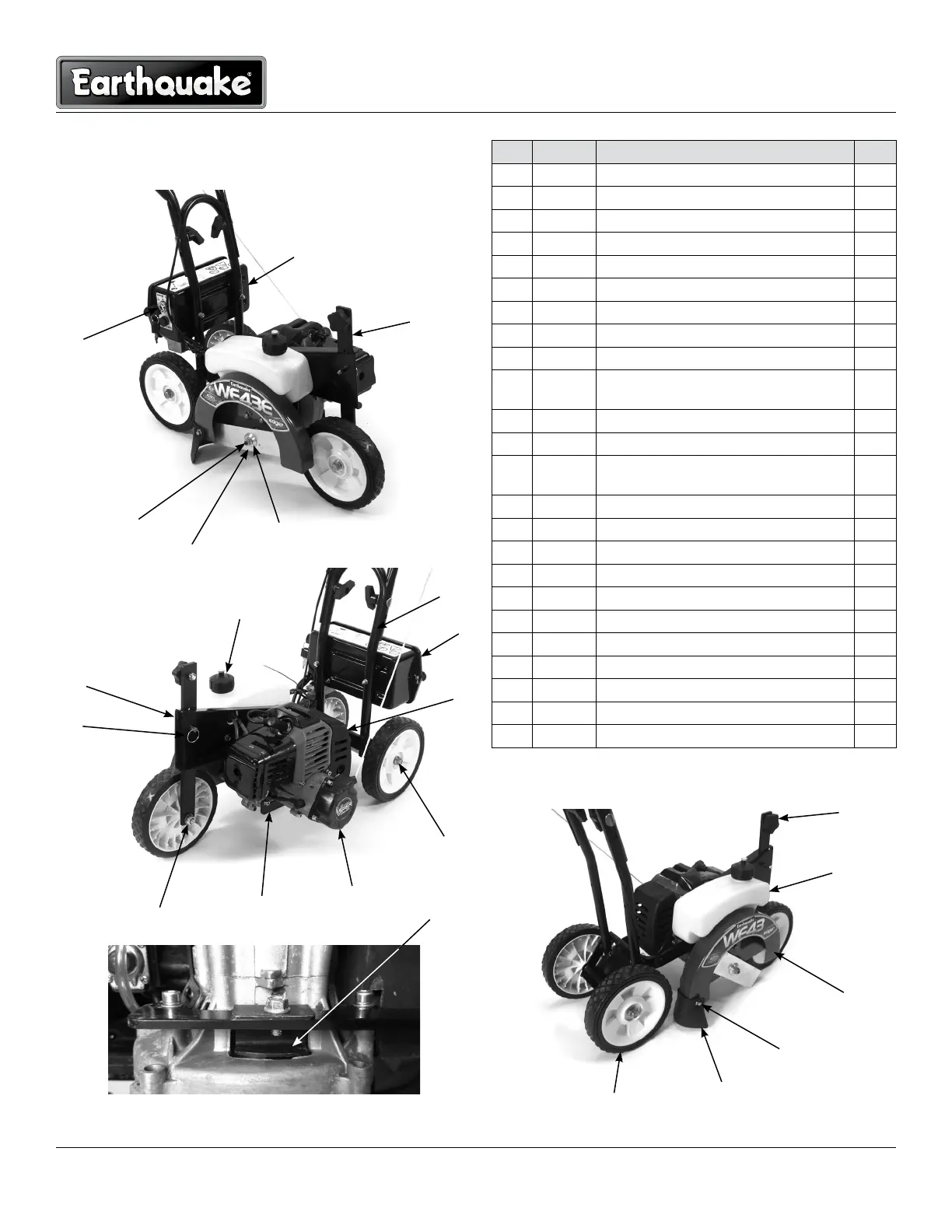

WE43E MAIN PARTS EXPLOSION
2
5
14
13
15
9
21
10
19
6
7
8
12
3
20
4
1
18
22
11
17
16
23
KEY PART # DESCRIPTION QT Y.
1 4634 WHEEL 3
2 4656 BATTERY BOX 1
3 4657 COVER, BATTERY BOX 1
4 4687 BOLT M10 X 1.5 X 225MM HEX HD 1
5 46140 SWITCH ONLY, NO KEY 1
5 46139 KEY ONLY 1
6 46145 PIN DETENT 5/16 X 1-1/2 1
7 300401 GAS CAP, VIPER ENGINE, SCREW VENT 1
8 400003 BRACKET, WHEEL MOUNT 1
9 400005 MOUNT BAR, WHEEL AND HEIGHT AD-
JUSTER
1
10 400006 MOTOR MOUNT, LOWER 1
11 400007 BLADE GUARD 1
12 400008 WELDMENT, HANDLE BAR AND WHEEL
MOUNT
1
13 400009 BLADE 1
14 400013 NUT FLANGE M8 LH BLADE 1
15 400014 CLAMP WASHER (BOTH SIDES) 2
16 4000171 DEBRIS SHIELD, RUBBER 1
17 400018 BOLT FLANGE M5 X 12 2
18 400027 KNOB, HEIGHT ADJUSTER M8 X 16 1
19 400042 BOLT SHOULDER M10 X 55 1
20 400032 MUFFLER, CATALYTIC CONVERTER 1
21 400036 RECOIL STARTER ASSEMBLY 1
22 400037 FUEL TANK 1
23 400017 DEBRIS SHIELD, STEEL 1
