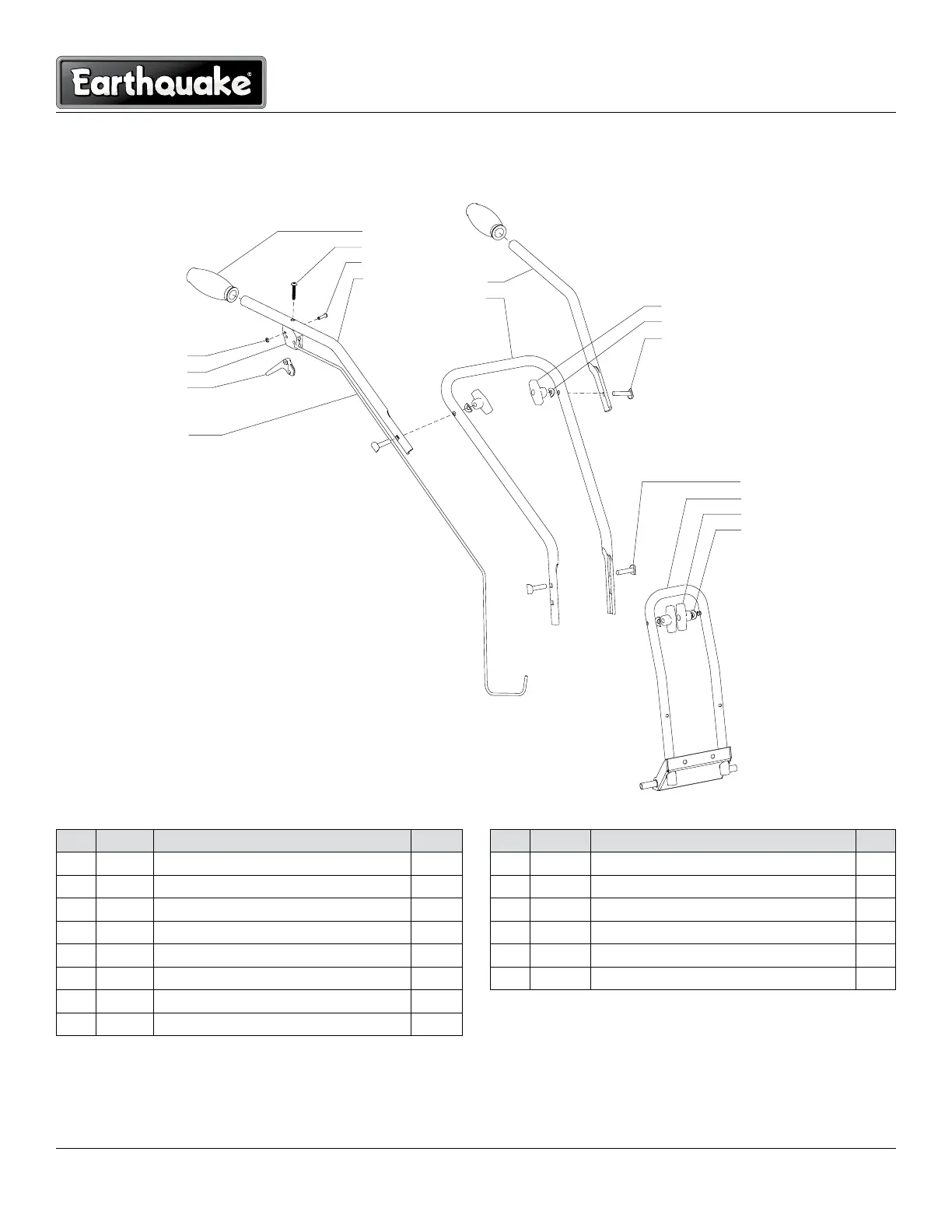

WE43 HANDLEBAR PARTS EXPLOSION
12
10
13
5
1 (2)
14
11
6
7
8
2 (2)
3 (2)
4 (2)
4 (2)
9
2 (2)
3 (2)
KEY PART # DESCRIPTION Q T Y.
1 4639 HANDLE GRIP 2
2 4640 NUT, THANDLE 4
3 4641 WASHER 4
4 4642 BOLT, HANDLE CLAMP 4
5 400041 THROTTLE CABLE 1
6 4689 HANDLEBAR UPPER RIGHT 1
7 4690 HANDLEBAR UPPER LEFT 1
8 4693 HANDLEBAR MIDDLE 1
KEY PART # DESCRIPTION QT Y.
9 400008 HANDLEBAR LOWER 1
10 4800 THROTTLE HOUSING 1
11 4803 CLEVIS PIN, .188 DIA. GROOVED 1
12 4804 E CLIP, RETAINING RING FOR .188 PIN 1
13 4805 THROTTLE TRIGGER, LONG THROW 1
14 4814 BOLT, 1024 X 11/4” PHILLIPS TRUSS HD 1
