WARNING: If any parts are damaged or missing, do
not operate this product until the parts are replaced.
Failure to heed this warning could result in serious
personal injury.
If any parts are damaged or missing, please call
customer service at 1-800-633-1501 for assistance.
WARNING: Do not connect to power supply until
assembly is complete. Failure to comply could result
in accidental starting and possible serious personal
injury.
WARNING: Do not attempt to modify this product or
create accessories not recommended for use with this
product. Any such alteration or modification is misuse
and could result in a hazardous condition leading to
possible serious personal injury.
ASSEMBLY
4
Model TC722011
This product requires assembly.
Carefully remove the product and any accessories
from the box. Make sure that all items listed in the
packing list are included.
Inspect the product carefully to make sure no
breakage or damage occurred during shipping.
Do not discard the packing material until you have
carefully inspected and satisfactorily operated the
product.
PACKING LIST
Tiller
Upper Handle Section
Center Handle Section
Hardware Bag
Battery & Charger
Owner’s Manual
This product must be assembled correctly before use.

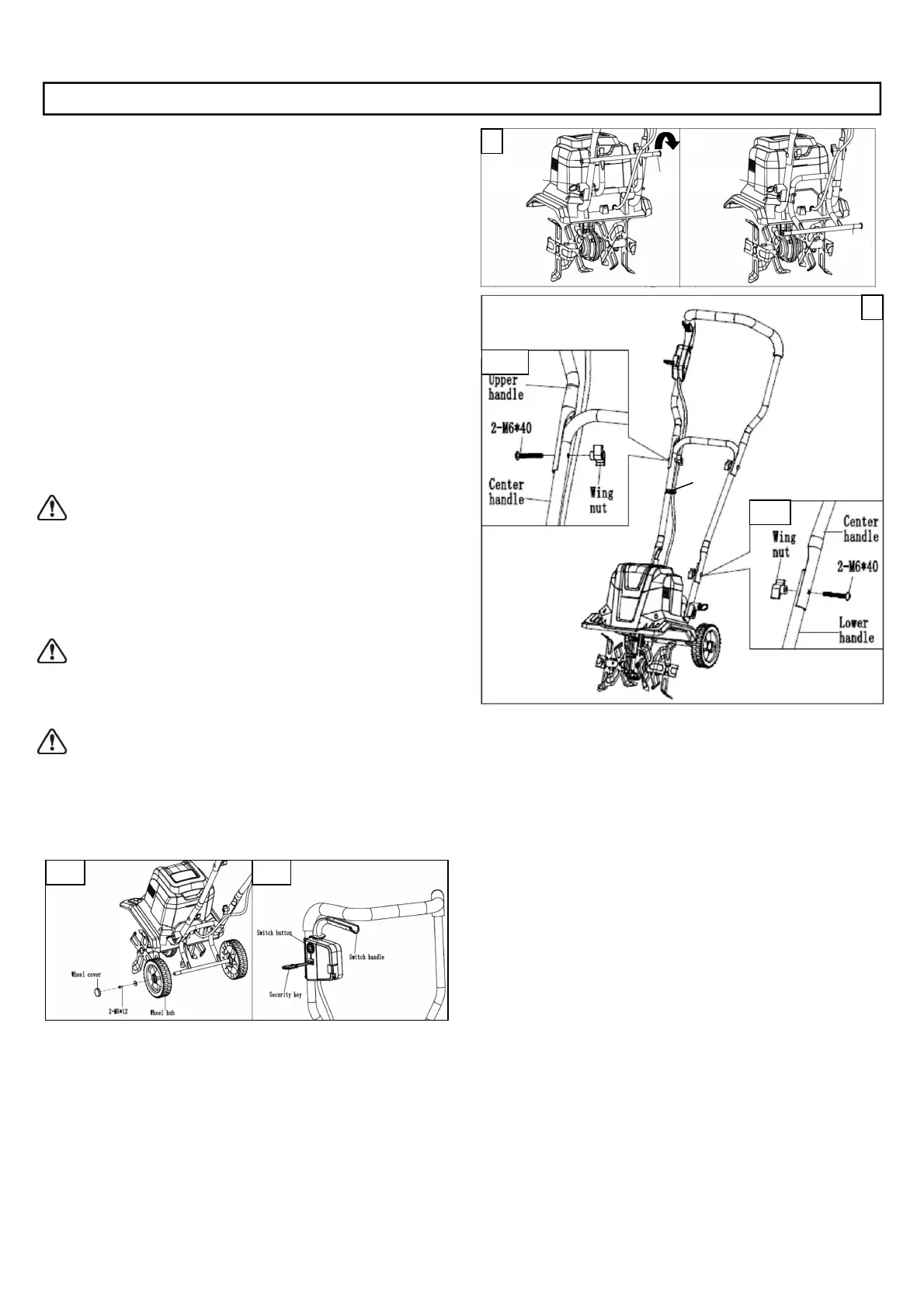

1. Remove the screws ( M5x12) and washers from
each end of the wheel frame axle. Assemble the
wheels onto the axle, then install washers and
screws ( M5x12) to secure. (Fig. 2-1)
2. Press the hub caps into the wheels and cover the
ends of the axles. You may use a hammer to seat
them securely into the wheels. (Fig. 2-1)
3. Pull the tab of the locking pin to turn the wheel frame
downwards. Align the locking pin with the hole of the
supporting rod. (Fig. 3)
4. Attach the center handle section to the lower handle
sections using the two supplied M6x40 bolts and
wing nuts. (Fig. 4-1)
5. Fasten the upper handle section to the center
handle section using the two supplied M6x40 bolts
and wing nuts (Fig. 4-2).
6. Use the supplied cable clip (c) to secure the
cord.
2-1 2-2
4
4-1
4-2
3
a
b
a
b
c
To Next Page
