WATER DRAINGE METHODS
This product has a self-evaporative system. The condensing water
will recycle to cool the condenser. This water-cooled mode can not
only improve cooling efficiency and decrease noise, but also save
energy for you.
* When in cooling mode, the water from the evaporator will flow into a inside
pan. When the water reaches the low level, the water pump will work until
the water is under the low level. When the water reaches the high level, the
compressor will stop working, and the water pump, lower fan motor and
upper fan motor will work on all the time.
* When in heating mode, the water pump won't work.
* When the water is full, the water full indicator will light and the compressor
will stop working. The buzzer will buzz 10 times every 5 minutes until the
water is below the high level or drained by hand. When the alarm stops and
after three-minutes restart delay, the unit will
work normally.
* You can drain the water out with a drain pipe. It
is included in the accessory. But first you
should put some vessel like pan under the
hose, then take out the plug on the drain mouth,
thus the water will flow into the vessel and
won't make the floor wet. (Fig.13) If the
drainpipe is shorter than you need, you can
purchase a pipe (9mmI.D.). Then connect it to
the drainpipe with the drainpipe kit we supply.
* Move the unit gently when the water is high. If
not , the water may spill from the inside of the unit.
* When the water in the cave is not enough for pumping, the pump will stop
working. At the same time, the Water Injection indicator on the control panel
will illuminate ( ), you had better inject some water into the water draw
carefully. In order to avoid the water flooding from the under pan, you should
inject water not more than 1800ml (three cups). This operation helps save
20%-30% energy for you.
MAINTENANCE
Cleaning
Turn off the unit and pull the plug out of the socket before any cleaning.
1.Clean the surface
Clean the surface of the unit with a duster or a half-wet soft cloth.
Do not use chemical solvent like benzene, alcohol, gasoline and etc,
Or the surface may be damaged or even deformed.
2. Clean the air filter
If the air filter is blocked with a lot of
dust, the efficiency will reduce. You’d
better clean the filter every two weeks.

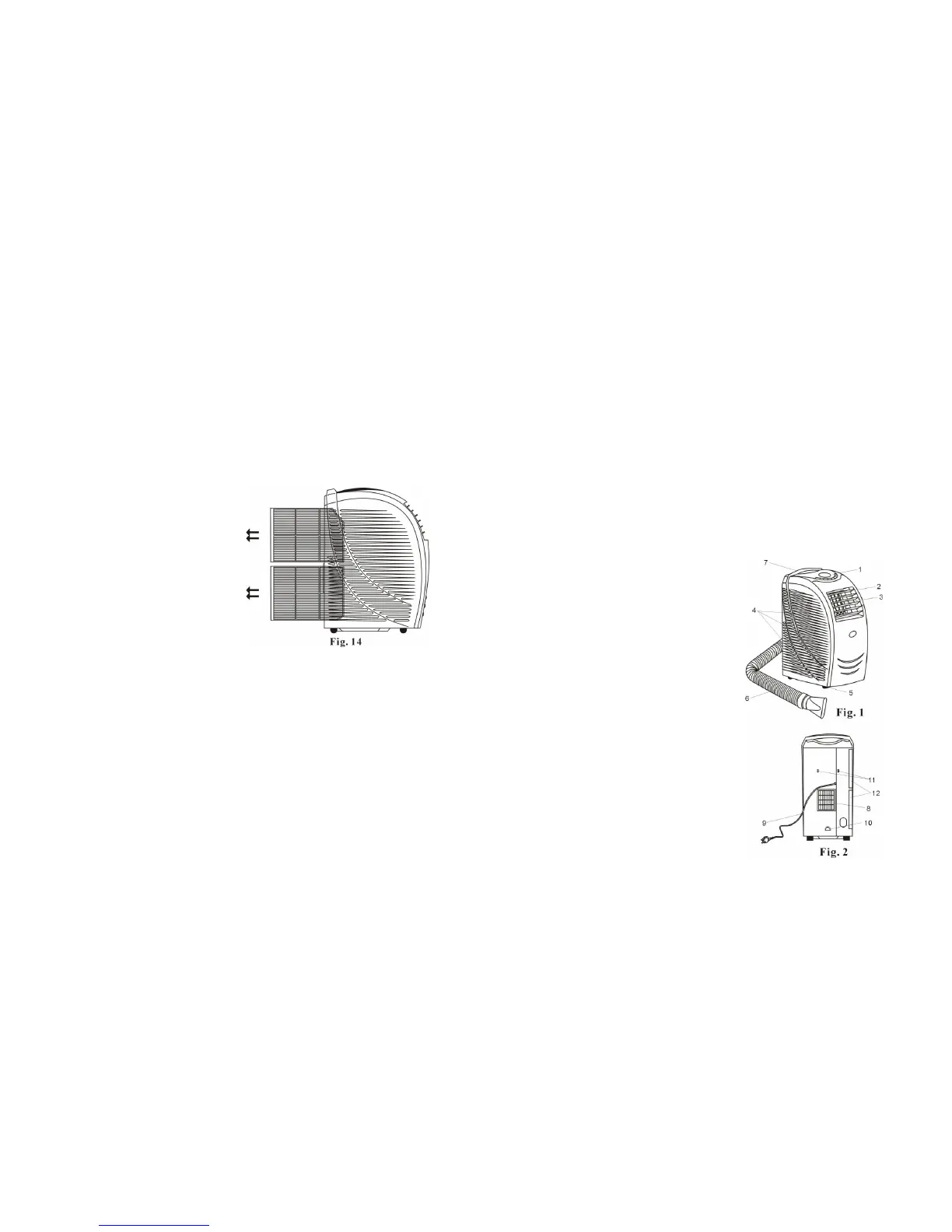

1) Pull out the air filter as Fig.14.
2) Wash the air filter by immersing
it gently into warm(under 40°C or 104°
F)water with neutral detergent. Rinse
the filter and dry it in a shaded place.
3) Push the air filter back into the
original position.
End of season
1.Pull out the plug from the drain mouth and remove the water from the drain
pan. You can remove the water entirely by slanting the unit back.
Setting the fan mode, then press the Fan button for 5 seconds until the lower
fan works. After that, operate the unit in fan mode for half a day until the pipe is
dry. In this way the inside of the unit can be dried and the mildew growth can
be suppressed.
2.Switch off the unit and disconnect the plug from the power supply.
3.Tie the cable with sting.
4.Remove the air exhaust duct and keep it carefully.
5.Wrap the unit with the plastic bag, and keep it in a dry place.
6.Take the batteries out of the remote control and keep them well.
4
FEATURES AND PARTS LIST
Features:
·No installation is required.
·Easily moved . The handle makes moving more convenient.
·Streamline colorful screen display .
·LED colorful screen display.
·Water-cooled mode is most energy saving and environment protect.
·Low noise and strong wind .
·Unique economic function.
·Auto swing makes wind blow from left to right automatically.
·Three-minute restart delay to protect compressor.
Parts list:
1. control panel
2. horizontal louver
3. vertical louver
4. air inlet grille
5. castor
6. exhaust duct
7. handle
8. air outlet grille
9. power cord and plug
10. water injection port
11. power and hook
12. air filter
