83
DESCRIZIONE ED USO DELLA MACCHINA
DESCRIPTION AND USE OF THE MACHINE
R
130

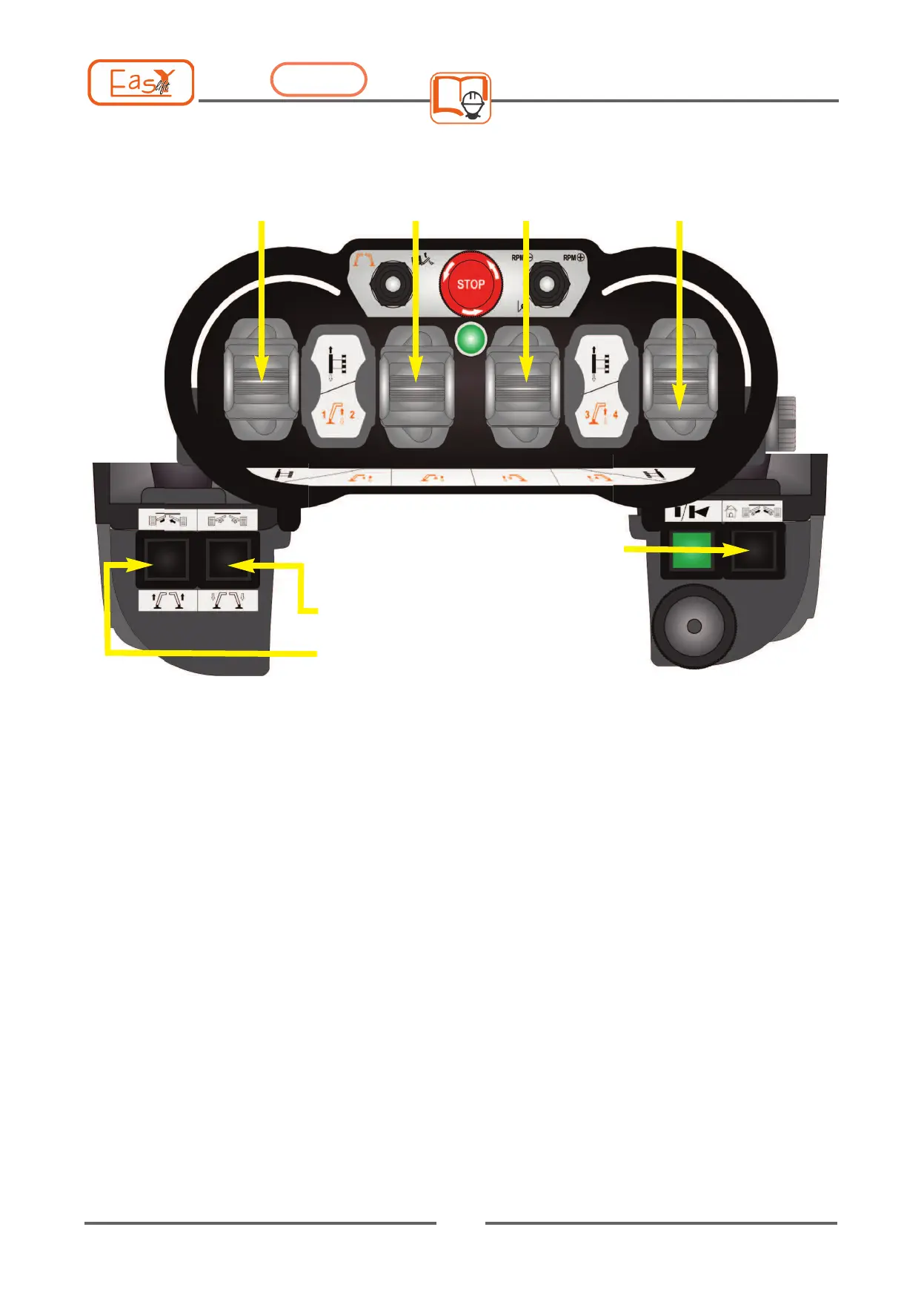

CABLE CONTROL (OPTIONAL)
5 Paddle lever Left track/Outrigger 1.
With togle switch (3) in midle position, Left track ac
tive. With togle switch (3) in left side position, outrig
ger 1 active.
6 Paddle lever Outrigger 2.
With togle switch (3) in midle position, no function
active. With togle switch (3) in left position, funtion
outrigger numer 2 active.
7 Paddle lever Outrigger 3.
With togle switch (3) in midle position, no function
active. With togle switch (3) in left position, funtion
outrigger numer 3 active.
8 Paddle lever Right track/Outrigger 4.
With togle switch (3) in midle position, right track ac
tive. With togle switch (3) in left side position, outrig
ger 4 active.
9 Outrigger lowering - Automatic self-leveling (opt)
Track opening - Extendale truck (optional)
See specific dedicated sections.
10 Outrigger lifting - Automatic self-leveling (opt).
Track closing - Extendale truck (optional)
See specific dedicated sections.
11 Extendale truck function enabling (optional)
See specific dedicated sections.
11
FILO COMANDO (OPTIONAL)
5 Leva traslazione cingolo sinitro/stabilizzatore 1.
Con switch (3) in posizione centrale, funzione cin
golo sinistro. Con switch (3) in posizione sinistra,
funzione stabilizzatore numero 1.
6 Leva stabilizzatore 2.
Con switch (3) in posizione centrale, nessuna fun
zione.Con switch (3) in posizione sinistra, funzione
stabilizzatore numero 2.
7 Leva stabilizzatore 3.
Con switch (3) in posizione centrale, nessuna fun
zione.Con switch (3) in posizione sinistra, funzione
stabilizzatore numero 3.
8 Leva traslazione cingolo destro stabilizzatore 4.
Con switch (3) in posizione centrale, funzione cin
golo destro. Con switch (3) in posizione sinistra, fun
zione stabilizzatore numero 4.
9 Discesa stabilizzatori - autolivellamento (opt.).
Apertura cingoli - carro allargabile (optional).
Vedi paragrafi dedicati.
10 Salita stabilizzatori - autolivellamento (opt.).
Chiusura cingoli - Carro allargabile (optional).
Vedi paragrafi dedicati.
11 Abilitazione carro allargabile (optional).
Vedi paragrafi dedicati.
5
10
9
6 7 8
