easymaxx MS-202 - Items Supplied and Device Overview

EN 22
Items Supplied and Device Overview
1
5
6
4
7
8
2
3
9
11
10
12
15
16
14
17
13
20
19
8
22
3
20
6
21
18

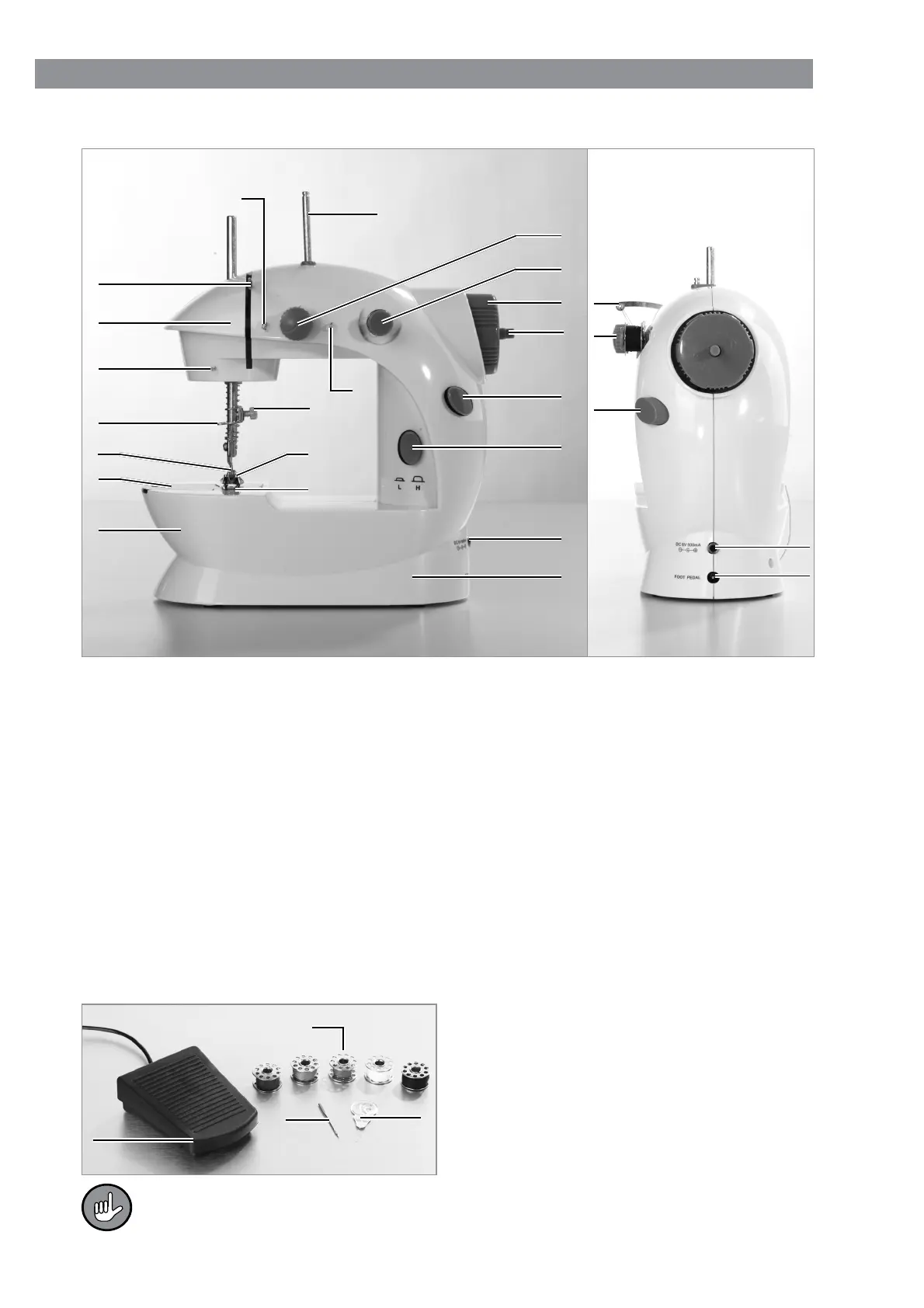

1 Thread spool pin (holds the thread
spool)
2 Upper thread tension regulator (sets
the tension of the upper thread)
3 Bobbin holder for the upper thread
4 Hand wheel (Turn the wheel towards
you (anticlockwise) to raise and lower
the needle.)
5 Winder pin (spools the thread onto the
lower thread bobbin)
6 Ein / Stand-by button (when sewing
WITHOUT the foot control)
7 Speed button: L = slow, H = fast
8 Connecting socket for adapter cable
9 Battery compartment
10 Thread guide 1
11 Needle clamp screw
12 Presser foot
13 Needle plate with transporter
14 Slide table
15 Bobbin compartment
16 Needle
17 Thread guide 5
18 Thread guide 4
19 Presser foot lever (on the back; raises
and lowers the presser foot)
20 Articulated thread pick-up with thread
guide 3
21 Thread guide 2
22 Connecting socket for foot control
23
26
25
24
23 Bobbins with thread
24 Threader
25 Spare needle
26 Foot control (This allows you to
start / stop sewing as an alternative to
the Ein / Stand-by button.)
• Not shown: mains adapter
For battery mode you also require 4 x 1.5 V AA batteries.
