EasyPro ECF10 - Maintenance Procedures; Lamp Replacement

Figure5
Figure4
Figure3
Figure2
Lamp Replacement
1. Makesuretheunitis
disconnectedfromthe
powersource.
2. FortheECF10(U)
proceedtostepthree,
thenproceedtostep
veandcontinue.For
theECF25(U)and
ECF40(U)proceedto
stepfour,thenpro-
ceed.
3. Loosenthescrewsonthetopretainingring.Do not
remove the screws - do not remove the retaining
ring.TwisttheUV
housingandmatch
thearrowontheUV
coverwiththearrow
ontheretainingring.
Gentlypulluponthe
cordandcoverinthe
backtoloosentheUV
cover.(seegure1
and9)
4. Loosenandremove
thethreescrewson
topoftheUVcover.
(seegure2)

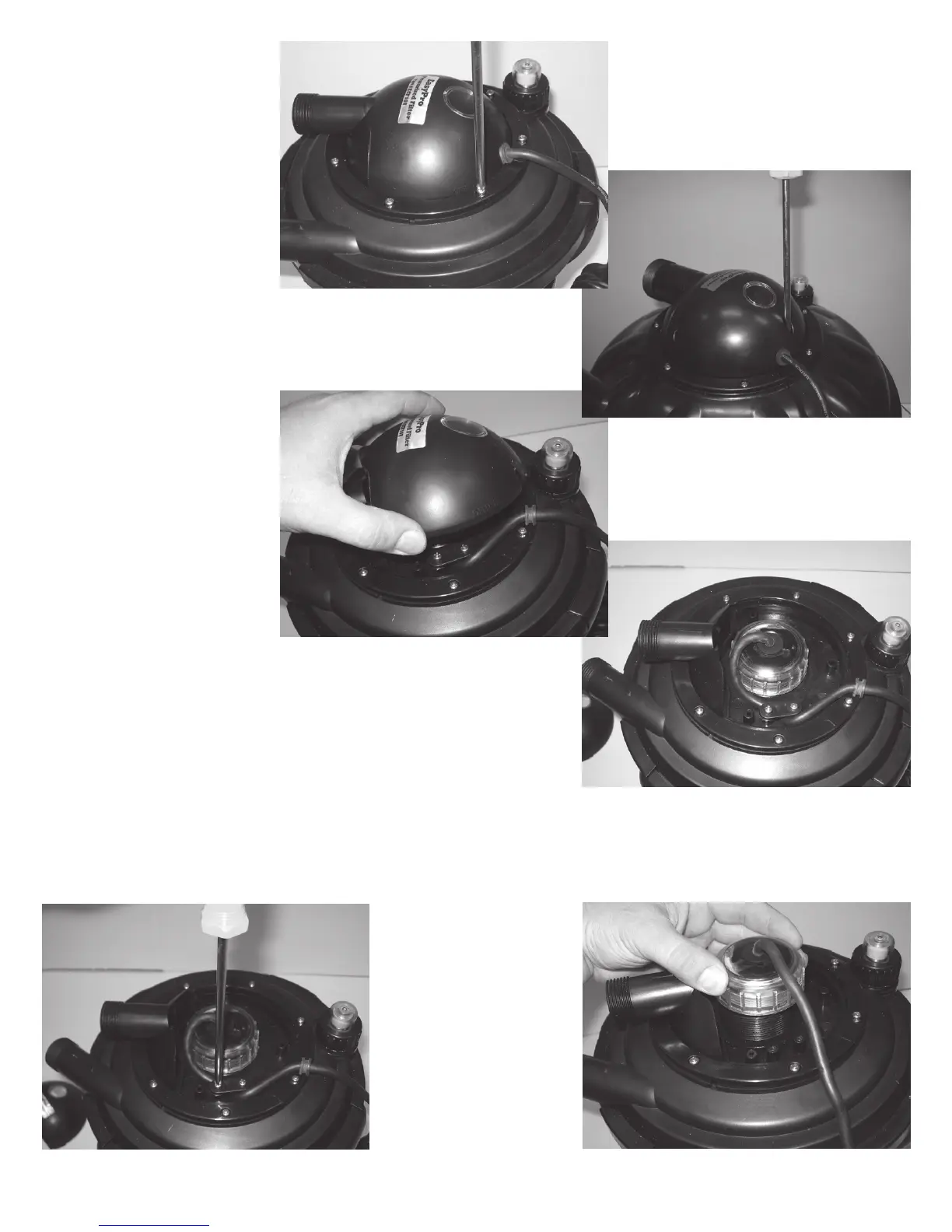

5. RemovetheUVcoverandsetaside.(seegures3&
4)
6. Removethetwoscrewsandtheplasticretainerclip
thatholdthecordinplaceandsetaside.(seegure5)
7. UnscrewtheUVlightandcarefullyremovefromthe
housing.(seegure6)
Figure6
3
Figure1
