Eaton 2 Series User Manual

13
12
12-13
12-3
12-4
12-6
12-8
12-10
12-9
12-7
12-5
12-11
12-12
12-14
12-2
12-B
12-A

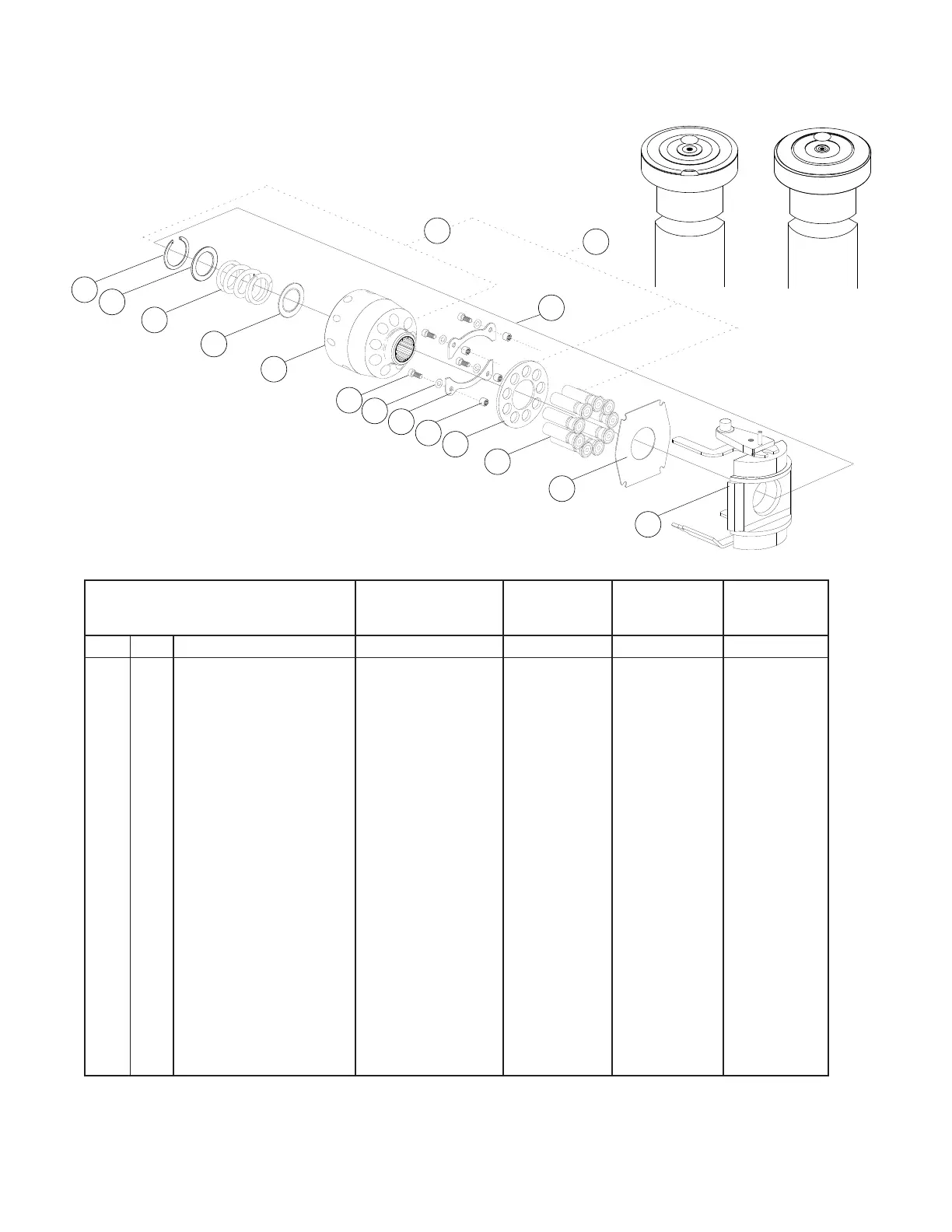

Item 12 B (from page 6)
Rotating/Swash Plate Assembly
Parts List – Series 2 Variable Displacement Pump
Wide Land Slipper
Standard Slipper
Note: The Bearing Plate is item 14 on page 6
and is listed on Pages 8 and 12.
The Hold Down Springs and Hold Down
Washers are listed on Pages 6 and 9
Model 33, 39 Model 46 Model 54 Model 64
54,4 - 63,7 cm
3
/rev 75,4 cm
3
/rev 89,2 cm
3
/rev 105,5 cm
3
/rev
Item Qty Description Part Number Part Number Part Number Part Number
12 1 Rotating/Swash Plate Assy. 109752* 109367* 108424* 109435*
Wide Land ✔ 110292* ✔ 110563* ✔ 110290* ✔ 110546* ✔
12-A 1 Rotating Group Kit** 109428 109419 109431 109434
Wide Land ✔ 110291 ✔ 110562 ✔ 110289 ✔ 110545 ✔
12-B 1 Barrel Kit 990730-000 990731-000 990732-000 990733-000
12-2 1 Retaining Ring ‡ 103278-200 ‡ 130278-200 ‡ 103278-225 ‡ 103278-225
12-3 1 Spacer Cyl Barrel Spring ‡ 103242 ‡ 103242 ‡ 103815 ‡ 103815
12-4 1 Cylinder Barrel Spring ‡ 103240 ‡ 103240 ‡ 103813 ‡ 103813
12-5 1 Spacer Shaft Spring ‡ 107758 ‡ 107758 ‡ 108337 ‡ 108337
12-6 1 Barrel and Sleeve ‡ 109427 ‡ 109418 ‡ 109430 ‡ 109433
12-7 4 Cap Screw (Kit) NSS ‡ 990723-000 ‡ 990723-000 ‡ 990724-000 ‡ 990724-000
12-8 4 Washer (Kit) NSS ‡ 990723-000 ‡ 990723-000 ‡ 990724-000 ‡ 990724-000
12-9 2 Hold Down Strap (Kit) NSS ‡ 990723-000 ‡ 990723-000 ‡ 990724-000 ‡ 990724-000
12-10 4 Fixed Clr. Spacer (Kit) NSS ‡ 990723-000 ‡ 990723-000 ‡ 990724-000 ‡ 990724-000
12-11 1 Slipper Retainer Plate 103244 104211 103853 103817
12-12 9 Slipper Piston S/A 109768 109748 109757 109758
9 Slipper Piston S/A ✔ 110216 ✔ 106609 ✔ 110220 ✔ 110222 ✔
12-13 1 Fixed Clr Thrust Plate 107854 107854 108341 108341
12-14 1 Swash Plate S/A 109366 109366 109254 109254
NSS - Not Sold Separately S/A - Sub Assembly ‡ – Parts included in Rotating/Swash Plate Assy. ✔ – Wide Land Slipper
* These are Complete Rotating/Swash Plate Group Assemblies and include Items 12-2 through 12-14.
** Rotating Group Kit includes item 12-B (Barrel Kit), item 12-11 (Slipper Retaining Plate) and item 12-12 (Slipper piston S/A).
Rotating/Swash Plate Assembly
