Eaton 2 Series User Manual

18
Parts List – Series 2 Control Valve Assemblies

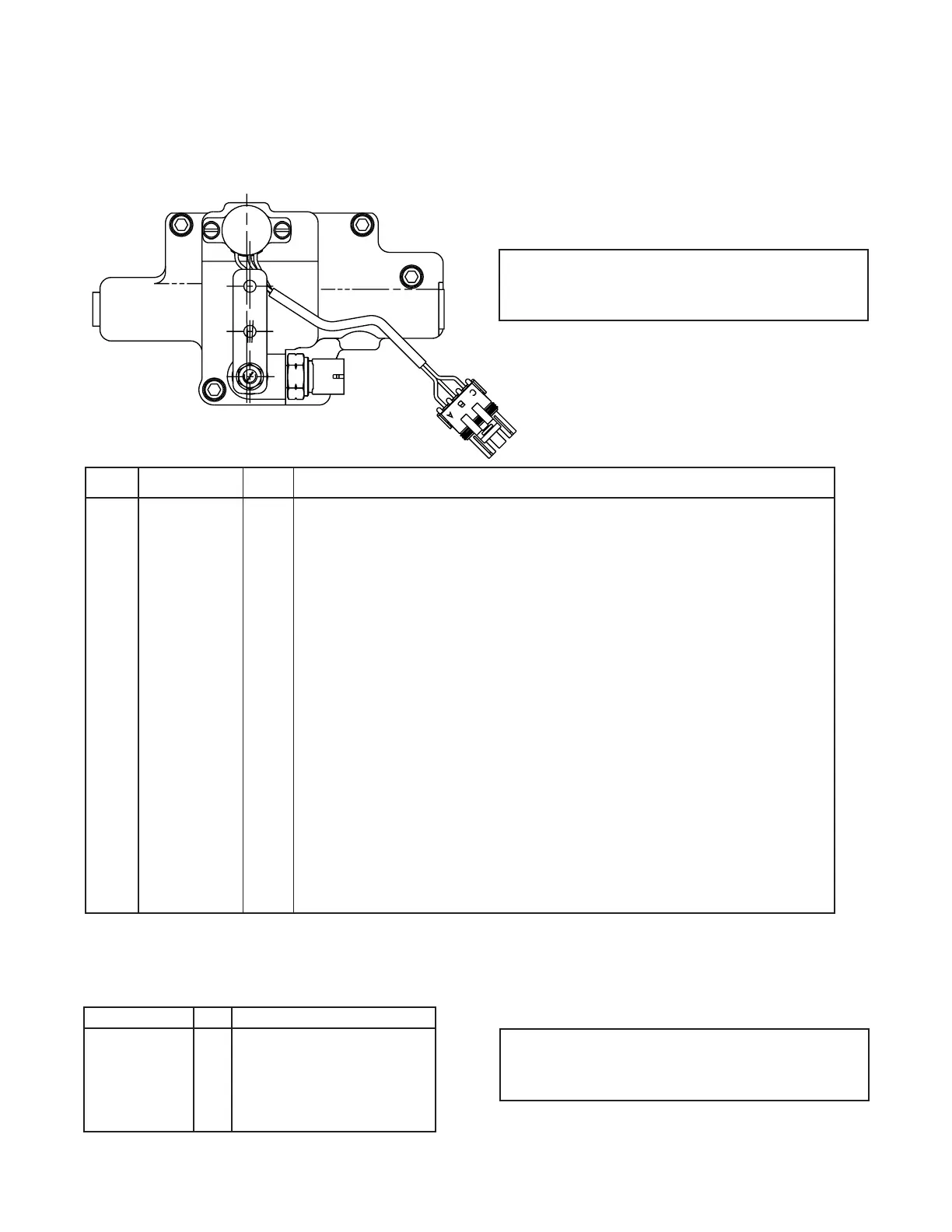

990706-000 – Manual Control Valve with N/C Neutral Lockout
& Potentiometer (Kit)
Item Part No. Qty. Description
6 C 990706-000 1 Manual Control Valve with N/C Neutral Lockout & Potentiometer (Kit)
includes below;
110040-000 1 Manual Control Valve with N/C Neutral Lockout & Potentiometer
7 C 108992-000 1 Control Gasket
95912-088 1 Cap Screw SOC HD 5/16-18 GR 8
95912-150 4 Cap Screw SOC HD 5/16-18 GR 8
109280-000 1 Control Link S/A
96081-031 1 Nut 5/16-18
96100-031 1 Washer
103048-000 1 Control Lever
95729-000 1 Control Lever
◊ 107851-000 1 Potentiometer
◊16040-208 2 Screw 8-32 UN
◊ 95897-008 2 Washer
◊ 107762-000 1 Potentiometer Gasket
109195-000 1 Feedback Shaft S/A
8761-010 1 O-Ring
109196-000 1 Hollow Dowel
N/C = Normally Closed ◊ = Parts included in Kit P/N 990719-000 see Below
990719-000 – Potentiometer Kit
Part No. Qty. Description
107851-000 1 Potentiometer
16040-208 2 Screw SF Head Mach 8-32 UN
95897-008 2 Washer
107762-000 1 Potentiometer Gasket
Connector (1) – Cross Reference Delphi/Packard P/N 1201 5792
Terminal (2) – Cross Reference Delphi/Packard P/N 1208 9040
Cable Seal (2) – Cross Reference Delphi/Packard P/N 1201 5323
Recomended wire size: 18 - 20 AWG
Recomended cable diameter: 2.03 - 2.85 mm
* Alternate reference source: Pioneer Standard Electronics 1-800-257-6613
990764-000 – Neutral Lockout
Switch Mating Connector Kit*
Connector (1) – Cross Reference Delphi/Packard P/N 1201 0717
Terminal (3) – Cross Reference Delphi/Packard P/N 1208 9040
Cable Seal (3) – Cross Reference Delphi/Packard P/N 1208 9679
Recomended wire size: 18 - 20 AWG
Recomended cable diameter: 1.6 - 2.15 mm
* Alternate reference source: Pioneer Standard Electronics 1-800-257-6613
990763-000 – Potentiometer
Mating Connector Kit*
