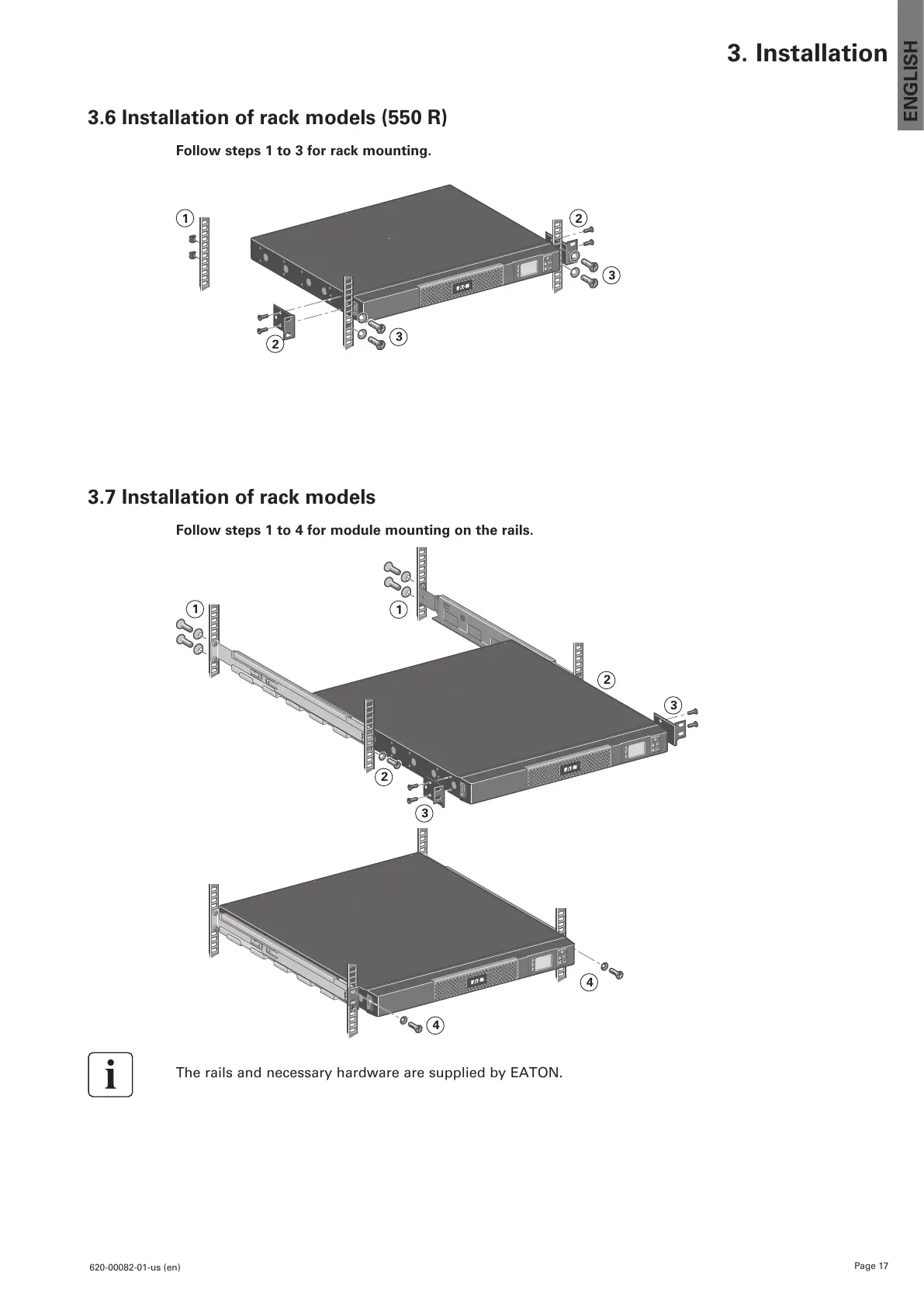

3.7 Installation of rack models
Follow steps 1 to 4 for module mounting on the rails.
1
1
2
2
3
3
4
4
The rails and necessary hardware are supplied by EATON.
3.6 Installation of rack models (550 R)
Follow steps 1 to 3 for rack mounting.
2
3
2
3
1
