35OPERATION AND INSTALLATION INSTRUCTIONS MN280075EN July 2018
Form 6 microprocessor-based rack-mount recloser control
TRIP CLOSE
Left Side View Front View
Top View
1
1
2
2
2
2
3
3
3

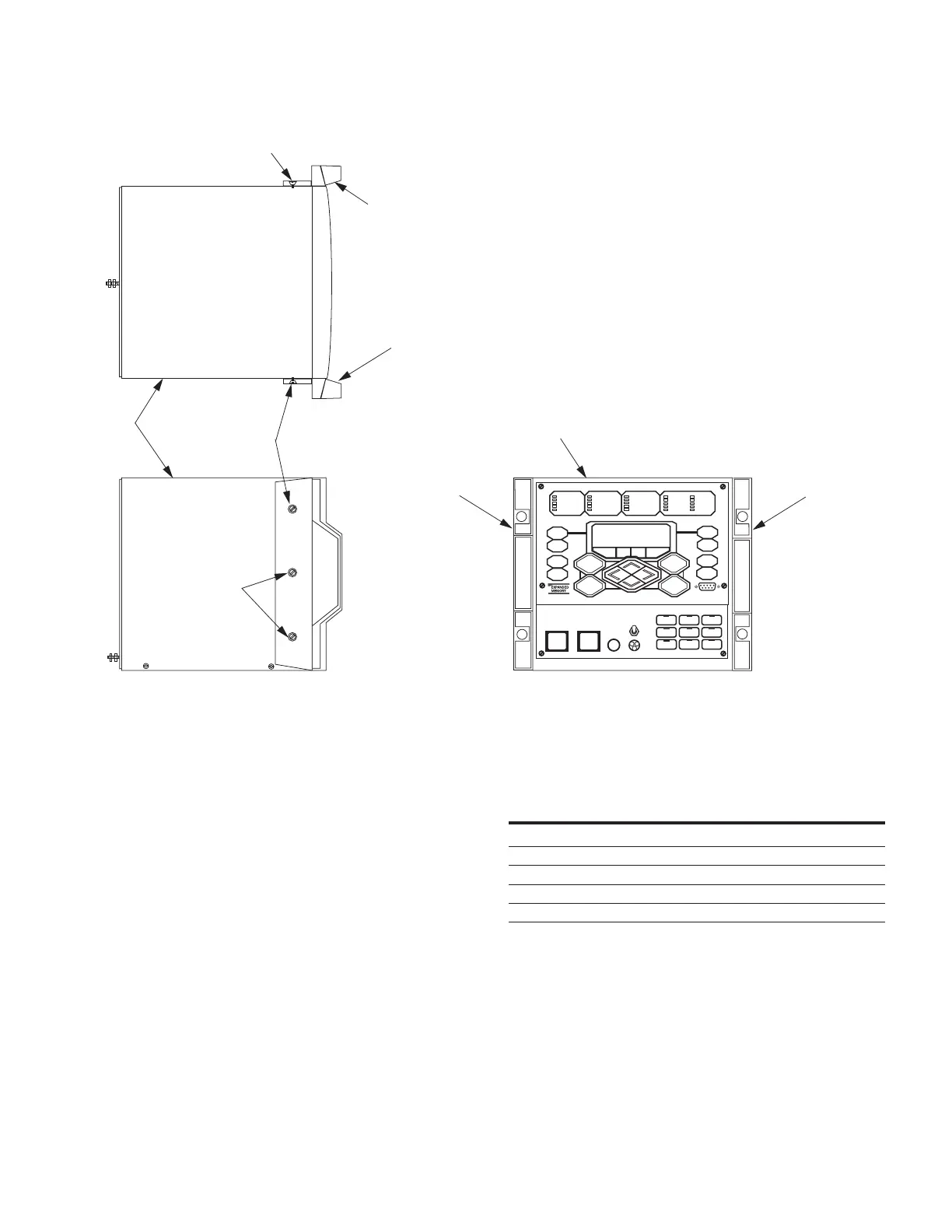

Figure30. Form 6 single rack mount recloser control
Double Rack – Single Mount Handle and Filler
Plate Attachment Instructions
These instructions apply to the attachment of two handles
and one filler plate to the Form 6 Double Rack – Single
Mount Recloser Control (Figure31).
The control is shipped without the handles or filler plate
attached. Follow this procedure to attach the handles to
both sides and the filler plate to one side.
ote:N The filler plate can be mounted on either side of
the control.
ote:N This procedure is required prior to mounting one
Form 6 recloser control in the 19" rack.
Table14. Form 6 Recloser Control Single Rack Mount
Handle and Filler Plate Attachment Parts List (Figure31)
Item Description Part Number Quantity
1 Form 6 Control (for reference) 1
2 Filler Plate 6A00166801 1
3 Form 6 Handle 6A00163901 2
4 #10-32 Fl Hd Screw 722915310050A 3
5 #10-32 Pan Hd Screw 723315310050A 5
1. Orient the handles as illustrated in the left side view in
Figure31.
2. Attach one handle (Item 3) with three #10-32 Flat Head
Screws (Item 4) to the side of the control the filler plate
is not going to be mounted to.
3. Tighten hardware completely. Do not torque.
4. Align the holes in the other handle over the pre-drilled
holes on the side of the control.
