Eaton 600 A 15 kV class push-OP Assembly/Installation Instructions

Catalog data MN650002EN
Effective February 2019
Deadbreak apparatus connectors
Step 7.
Clean insulation
ote:N Do not apply solvent directly to cable.
•
Clean insulation thoroughly with solvent dampened rag,
wiping from conductor end toward insulation shield.
(Refer to Figure 19.)
•
Ensure that all traces of conductive residue are re moved.
Step 8.
Lubricate and install cable adapter
•
Lubricate exposed cable insulation.
•
Lubricate inside of cable adapter.
•
Slide small end of cable adapter over cable using twisting
motion until small end is flush with tape marker. (Refer to
Figure 20.)
•
After sliding the cable adapter into position make sure
that no bulge is present (see Figure 21).

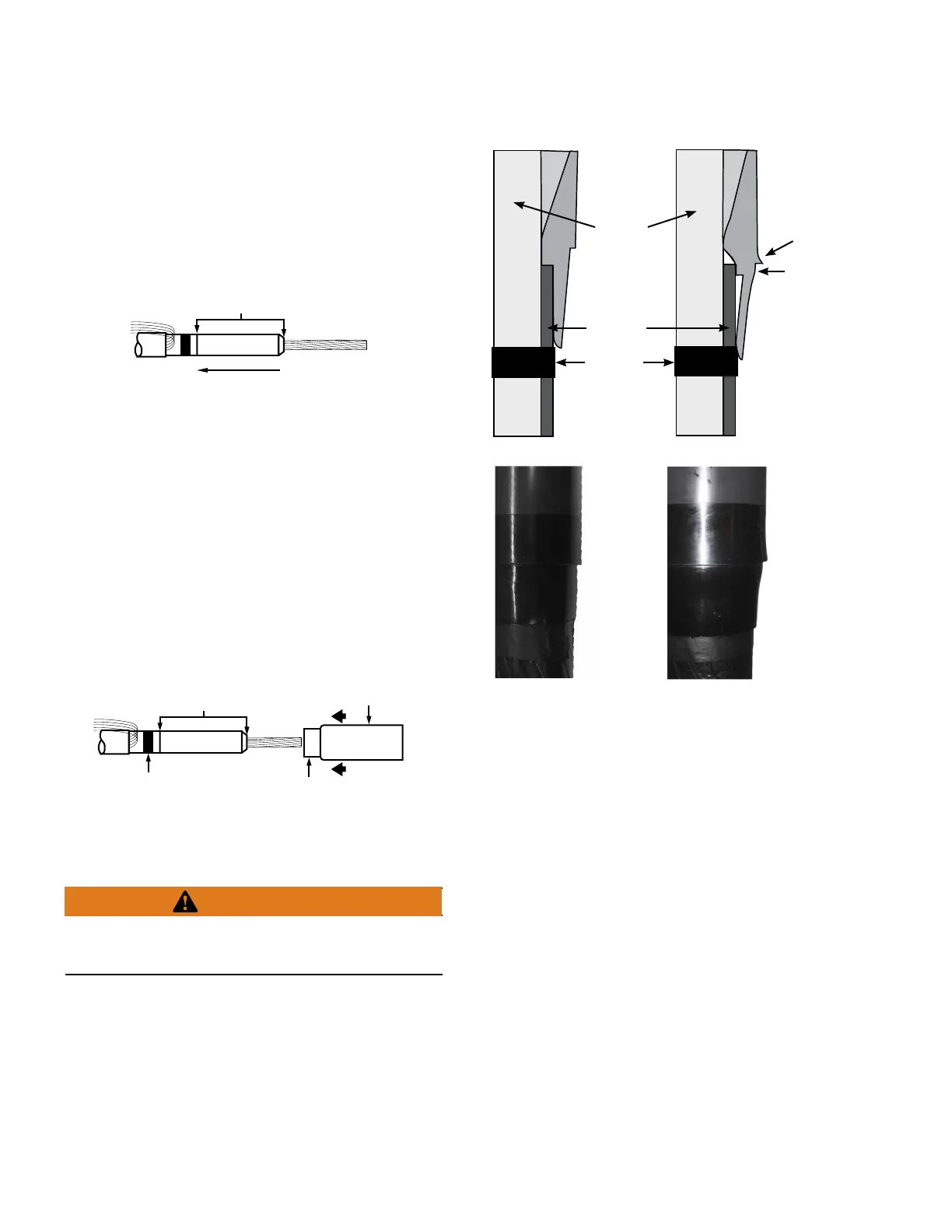

Figure 19. Line illustration of insulation cleaning.
Wiping Direction
Wipe Insulation
Equipment Damage/Personal Injury. Improperly
positioned cable adapter may result in equipment
damage or personal injury.
Figure 20. Line illustration of insulation cable adapter.
Lubricate insulation
Lubricate
Cable adapter
Tape marker
Step 9.
Install compression connector
ote:N Refer to the chart supplied with the crimp
connector for tool and die to be used.
•
Wire brush conductor (aluminum only).
•
Remove protective cap from compression connector.
•
Insert conductor completely into compression connector
and rotate connector to distribute inhibitor.
ote:N Connector must be fully seated on cable conductor.
•
Align flats of connector and apparatus bushing for
minimum conductor strain.
•
Make first crimp 1/2" (13 mm) below shoulder of
compression connector. (Refer to Figure 22).
•
Rotate each successive crimp 90° on compression
connector and allow 1/8" (3 mm) between crimps.
•
Wipe excess inhibitor from connector and adapter
surfaces.
Straight
Straight
Not straight
Not straight
bulge
Correct positioning
Cable
insulation
Cable
insulation
shield
Tape
marker
Incorrect positioning
Major OD
flared out
Figure 21. Cross sectional view of cable adapter
positioning.
WARNING
10
600 A 35 kV class BOL-T connector assembly installation instructions for MN650002EN February 2019
