13EATON 620 Mobile Open Circuit Piston Pump Service Manual E-PUPI-TS018-E2 November 2017

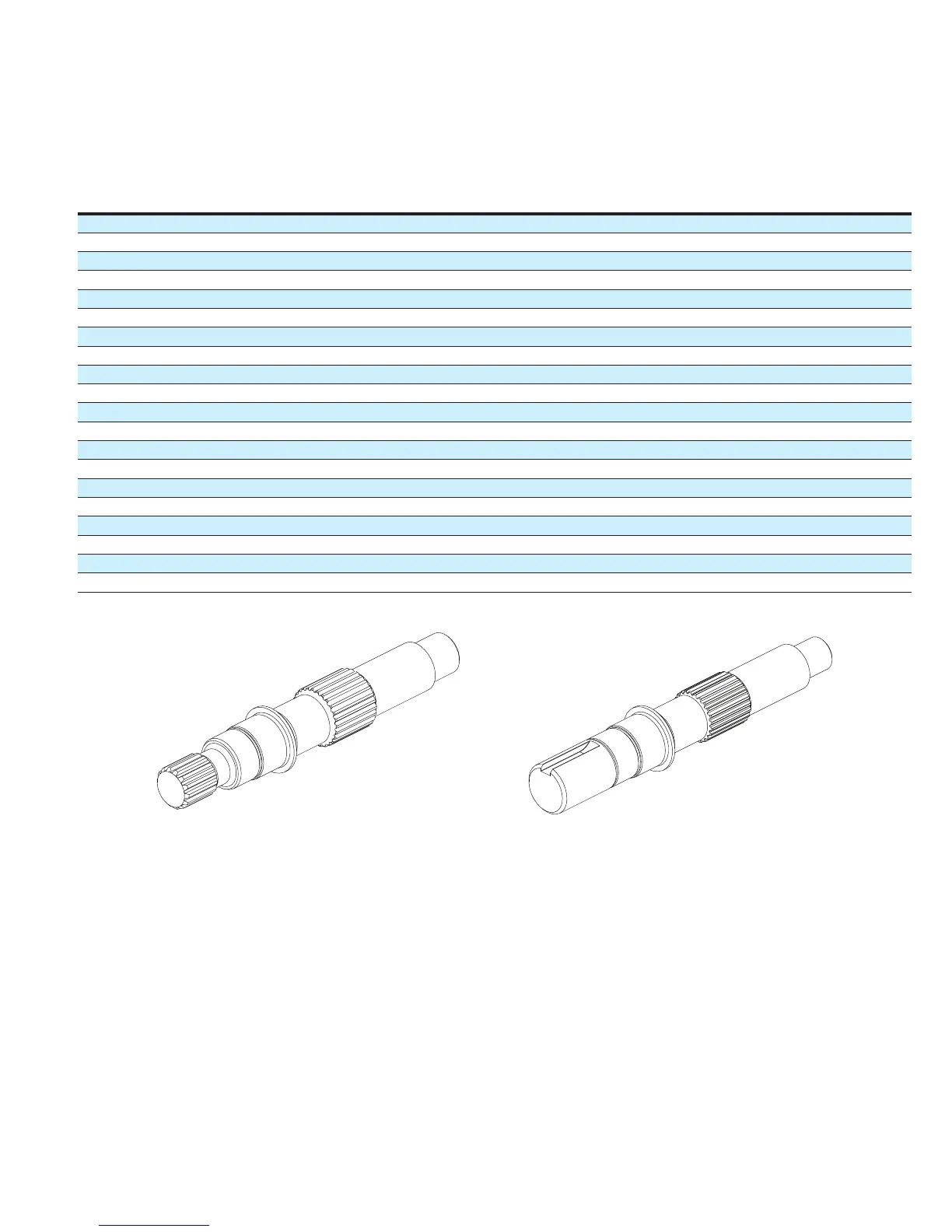

Shaft drive and key – Items 9 & 10
Table 4
Table 4 - Shaft drive and key (Items 9 & 10)
Code position
4,5,6 8,9 26,27 Key Part Description
074 05 00 4992730-004 6025210-001 Shaft, drive, 1.25 straight key, 56 ext
074 05 not 00 4992730-004 6025210-003 Shaft, drive, 1.25 straight key, 56 ext thru drive
074 06 00 - 6025208-001 Shaft, drive, input 14 tooth, 56 ext
074 06 not 00 - 6025208-003 Shaft, drive, input 14 tooth, 56 ext thru drive
074 07 00 4992730-005 6025211-001 Shaft, drive, 1.50 straight key, 62 ext
074 07 not 00 4992730-005 6025211-003 Shaft, drive, 1.50 straight key, 62 ext thru drive
074 08 00 - 6025209-001 Shaft, drive, input 17 tooth, 62 ext
074 08 not 00 - 6025209-003 Shaft, drive, input 17 tooth, 62 ext thru drive
098 05 00 4992730-004 4999808-001 Shaft, drive, 1.25 straight key, 56 ext
098 05 not 00 4992730-004 4999809-001 Shaft, drive, 1.25 straight key, 56 ext thru drive
098 06 00 - 6021804-001 Shaft, drive, input 14 tooth, 56 ext
098 06 not 00 - 4999303-001 Shaft, drive, input 14 tooth, 56 ext thru drive
098 07 00 4992730-005 4999810-001 Shaft, drive, 1.50 straight key, 62 ext
098 07 not 00 4992730-005 4999811-001 Shaft, drive, 1.50 straight key, 62 ext thru drive
098 08 00 - 4999806-001 Shaft, drive, input 17 tooth, 62 ext
098 08 not 00 - 4999807-001 Shaft, drive, input 17 tooth, 62 ext thru drive
098 10 not 00 14392-004 6023400-001 Shaft, drive, 1.25 tapered, str key, thru drive
098 16 00 16246-614 6036654-001 Shaft, drive, 1.25 straight key, 56 ext
098 12 not 00 - 4999303-002 Shaft, drive, input 14 tooth, thru drive
098 10 00 14392-004 6035973-001 Shaft, drive, 1.25 Tapered, str key
