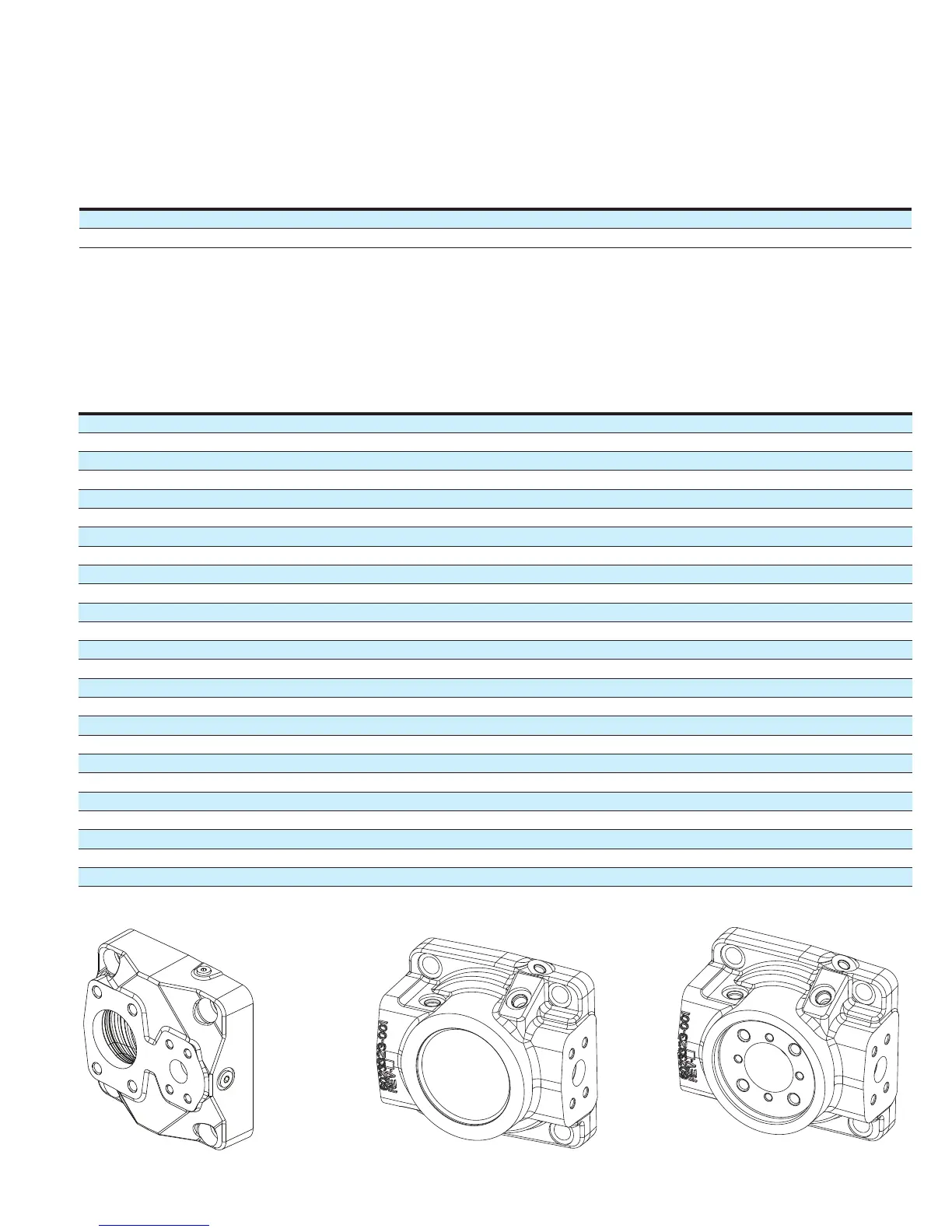

15EATON 620 Mobile Open Circuit Piston Pump Service Manual E-PUPI-TS018-E2 November 2017
Bearing assembly – Item 13
Table 7
Table 7 - Bearing assembly (item 13)
Code position
4, 5, 6 Part number Description
074 6025207-001 Bearing assembly 74 cc
098 6021946-001 Bearing assembly 98 cc
End cover S/A – Item 17
Table 8
Table 8 - End cover S/A (item 17)
Code position
4, 5, 6 7 10, 11 13 26, 27 Part number Description
074 L,R AF 1 00 6028767-001 End cover S/A, side port 74 cc (diag ports)
074 L,R AF 1 not 00 6030266-001 End cover S/A, thru drive 74 cc (diag ports)
074 L,R AH 2 00 6028767-002 End cover S/A, side port 74 cc metric (diag ports)
074 L,R AH 2 not 00 6030266-002 End cover S/A, thru drive 74 cc metric (diag ports)
074 L,R AF 0 00 6028767-003 End cover S/A, side port 74 cc
074 L,R AF 0 not 00 6030266-003 End cover S/A, thru drive 74 cc
074 L,R AH 0 00 6028767-004 End cover S/A, side port 74 cc metric
074 L,R AH 0 not 00 6030266-004 End cover S/A, thru drive 74 cc metric
074 R AJ 1 00 6033171-001 End cover S/A, rear port 74 cc
074 R AG 2 00 6033171-002 End cover S/A, rear port 74 cc
098 L,R AB 1 00 6023848-001 End cover S/A, side port 98 cc (diag ports)
098 L,R AB 1 Not 00 6023824-001 End cover S/A, thru drive 98 cc (diag ports)
098 L,R AD 2 00 6023848-002 End cover S/A, side port 98 cc metric (diag ports)
098 L,R AD 2 Not 00 6023824-002 End cover S/A, thru drive 98 cc metric (diag ports)
098 L,R AB 0 00 6023848-003 End cover S/A, side port 98 cc
098 L,R AB 0 Not 00 6023824-003 End cover S/A, thru drive 98 cc
098 L,R AD 0 00 6023848-004 End cover S/A, side port 98 cc metric
098 L,R AD 0 Not 00 6023824-004 End cover S/A, thru drive 98 cc metric
098 R AE 0 00 6023848-005 End cover S/A, side port 98 cc metric
098 R AE 0 AG 6023824-005 End cover S/A, thru drive 98 cc metric
098 L,R AA 1 00 6028558-001 End cover S/A, rear port 98 cc
098 L,R AC 2 00 6028558-002 End cover S/A, rear port 98 cc
098 L,R AC 0 00 6028558-004 End cover S/A, rear port 98 cc
098 L,R AD 0 00 6023848-004 End cover S/A, side port 98 cc metric
098 L,R AD 0 not 00 6023824-004 End cover S/A, thru drive 98 cc metric
Thru drive
Side portedRear ported
620 Series mobile piston pump end cover views
