17EATON 620 Mobile Open Circuit Piston Pump Service Manual E-PUPI-TS018-E2 November 2017
Plugs – Items 21 & 22
Table 11
Table 11 - Plugs (Item 21 & 22)
Code position
12 Part number Description
1 115046-016 Plug 1.3125-12
2 115046-016 Plug 1.3125-12
5 115046-016 Plug 1.3125-12
3 9237-006 Plug M33 X 2.0
4 9237-006 Plug M33 X 2.0

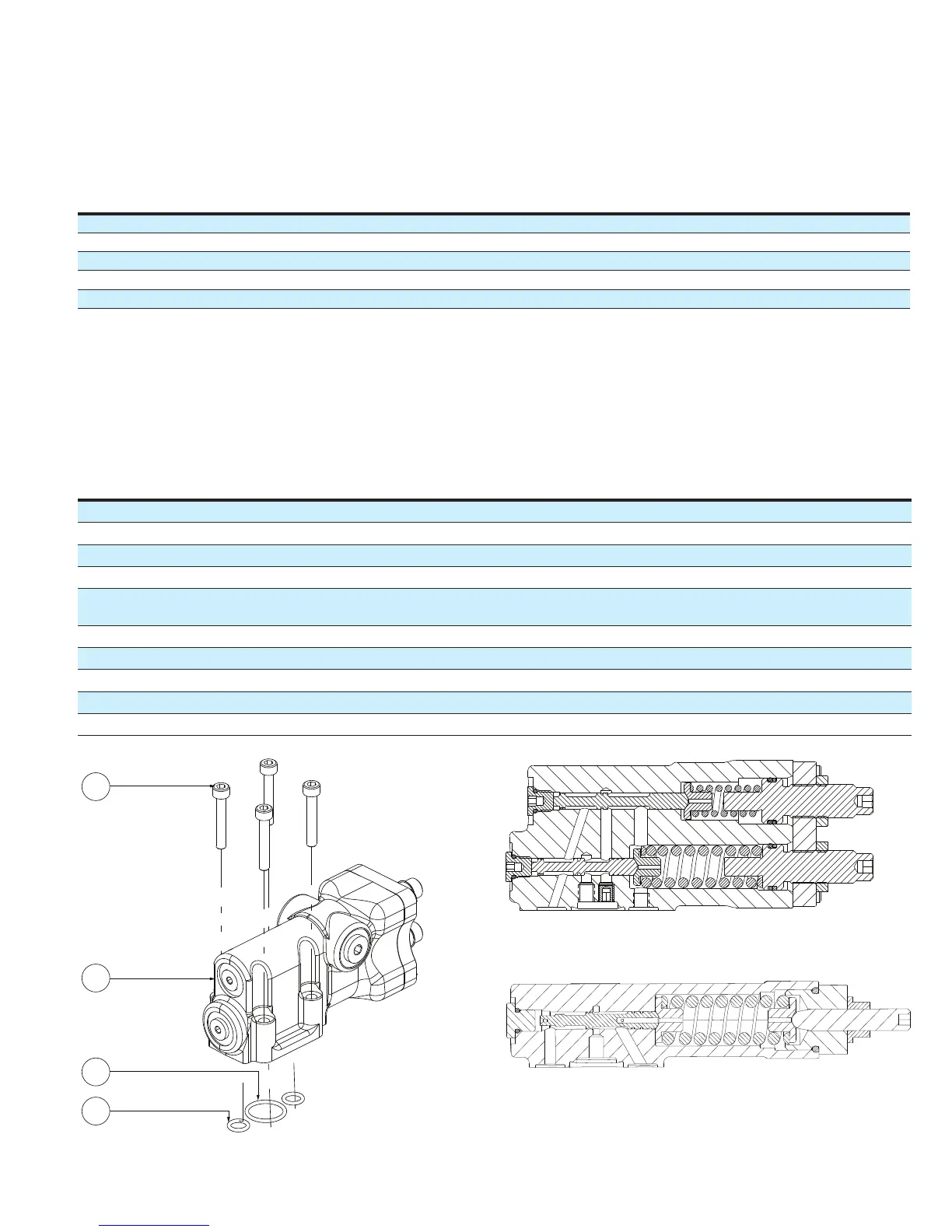

Compensator kits – Items 24, 25 & 26
Table 12 - Factory set
27
26
Torque
8.2 ± 0.8 Nm
24
25
Pressure flow compensator
Pressure compensator only
Table 12 - Compensator kits (Items 24, 25, & 26)
Code position
14, 15 16,17 Pressure limit setting 18,19 Flow setting 22, 23 Kit number
AA 28 206.8-213.7 bar [3000-3100 lbf/in
2
] 23 23.10-25.17 bar [335-365 lbf/in
2
] 00 9901219-001
AA 32 226.5-233.4 bar [3285-3385 lbf/in
2
] 16 13.79-16.55 bar [200-240 lbf/in
2
] 00 9901219-002
AA 27 199.9-206.8 bar [2900-3000 lbf/in
2
] 25 23.44-26.89 bar [340-390 lbf/in
2
] 00 9901219-003
AA 43 275.8-282.7 bar [4000-4100 lbf/in
2
] 16 13.79-16.55 bar [200-240 lbf/in
2
] 00 9901219-008
AA 39 258.6-265.4 bar [3750-3850 lbf/in
2
] 28
26.20-28.96 bar [380-420 lbf/in
2
]
00 9901219-049
AA 15 151.7-158.6 bar [2200-2300 lbf/in
2
] 34 4.50-6.90 bar [66-100 lbf/in
2
] 00 9901219-063
AA 19 168.9-175.8 bar [2450-2550 lbf/in
2
] 20 17.24-19.99 bar [250-290 lbf/in
2
] 00 9901219-080
AA 12 137.9-144.8 bar [2000-2100 lbf/in
2
] 10 9.65-12.41 bar [140-180 lbf/in
2
] 00 9901219-081
AC 28 276-284 bar [4003-4119 lbf/in
2
] 00 - 00 9900771-006
AC 20 196-204 bar [2843-2959 lbf/in
2
] 00 - 0A 9900771-007
