19EATON 620 Mobile Open Circuit Piston Pump Service Manual E-PUPI-TS018-E2 November 2017

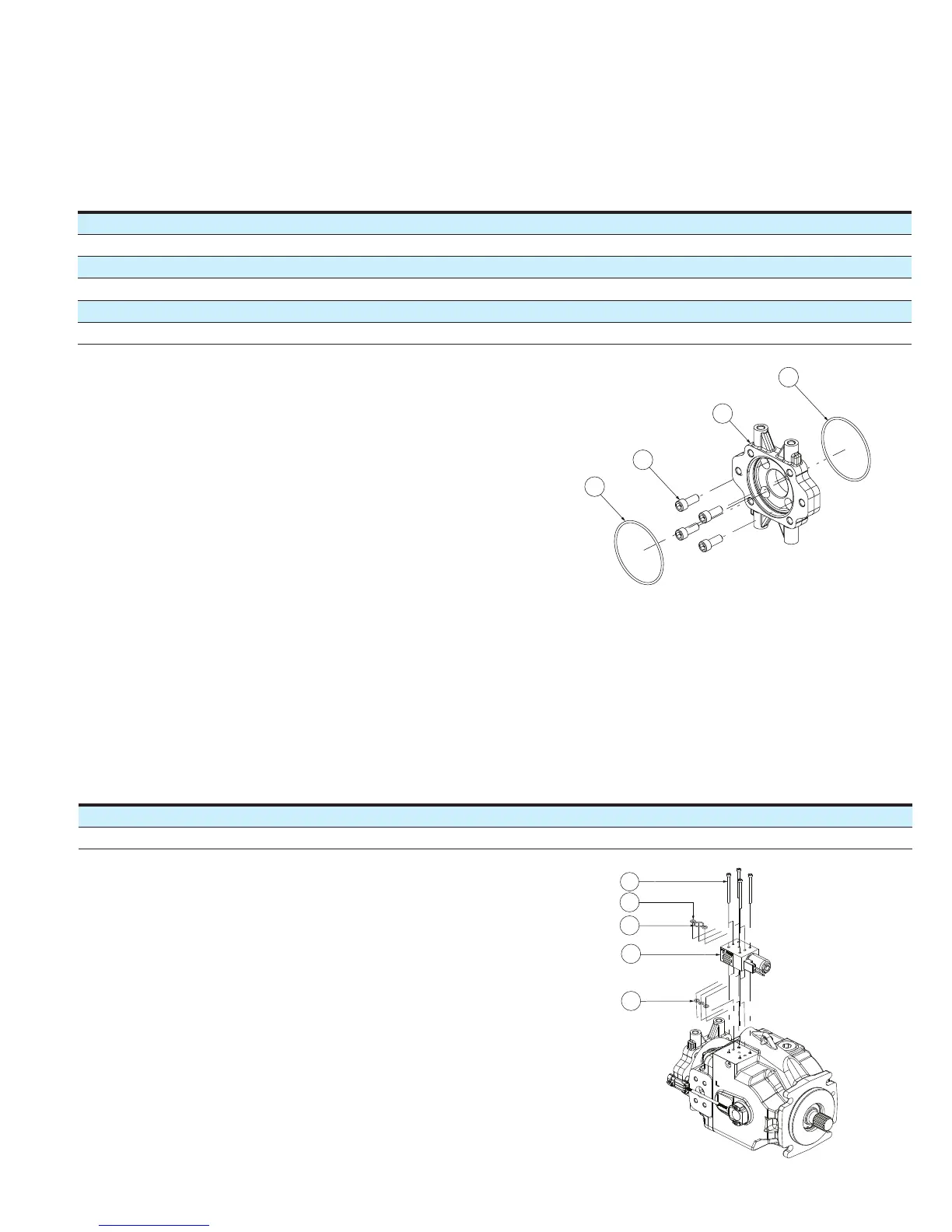

Thru drive adapter kit – Items 29, 30, 31 & 32
Table 15
Cold start manifold (Destroke) – Item 33
Table 16
Table 15 - Thru drive adapter kit (Items 29, 30, 31 & 32)
Code position
4,5,6 26, 27 Part number Item 29 Item 30 Item31 Item32 Description
074, 098 AA, AB 9900774-002 104166-155 4999463-001 8761-152 114977-030 SAE A-pad adapter 13T (74, 98cc)
074 AD 9900774-005 104166-155 4999351-001 8761-155 114977-050 SAE B-pad adapter 15T (74 cc)
074 AE, AF 9900774-004 104166-155 4999353-001 8761-159 114977-055 SAE C-pad adapter (74 cc)
074 AC 9900774-006 104166-155 4999351-001 8761-155 114977-025 SAE adapter 13T(74 cc)
098 AC, AD 9900774-003 104166-155 4999351-001 8761-155 114977-030 SAE B-pad adapter (98 cc)
098 AE, AF 9900774-001 104166-155 4999353-001 8761-159 114977-035 SAE C-pad adapter (98 cc)
Table 16 - Cold start manifold (Destroke) (Item 33)
Code position
22, 23 Part number Description
0B,0C 631AA00288A-009 Destroke manifold with metri-pack connector
0D 631AA00288A-003 Destroke manifold with integrated deutsch connector
29
30
32
31
27
25
24
33
34
Torque 8.2 ± 0.8 Nm
