39EATON 620 Mobile Open Circuit Piston Pump Service Manual E-PUPI-TS018-E2 November 2017
2
1
3
Torque
24.5 ± 2.5 Nm
Torque
15.0 ± 1.5 Nm
2
4
6
5
7
Torque
24.5 ± 2.5 Nm
Press to bottom
of hole split to
be on this AZIS
within ± 5°
Install seat
ushed to .25
recessed
3
Torque
15.0 ± 1.5 Nm

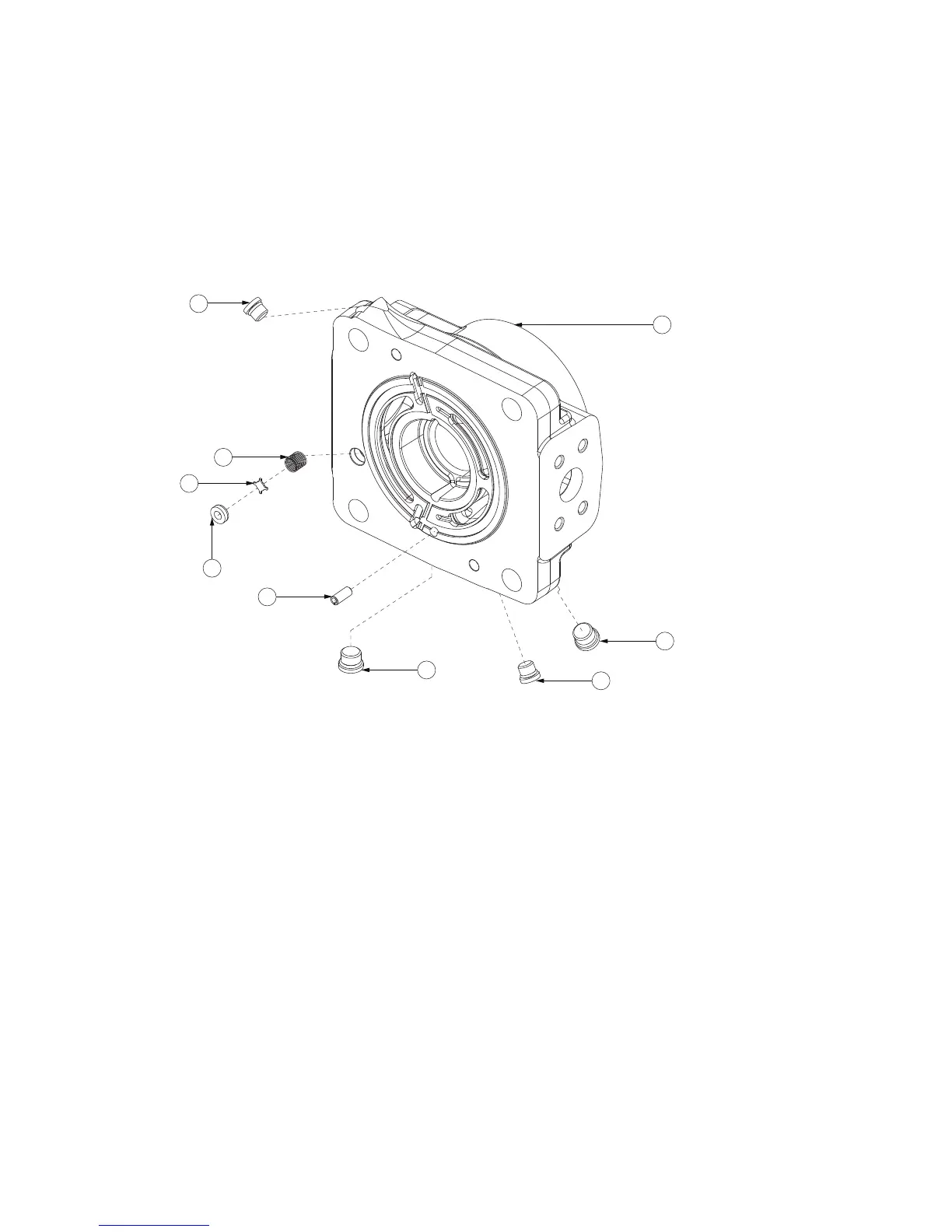

Assembly torque values
Instructions
End cover
