viii
Instruction Booklet IB 52-01-TE
Effective October 2010
Instructions for the Eaton Type CM52
Network Protectors 800 to 4500 Amperes
EATON CORPORATION www.eaton.com
viii IB -52-01-TE
Effective 11/05/08 (super cedes 11/19/03) IB 52-01-TE

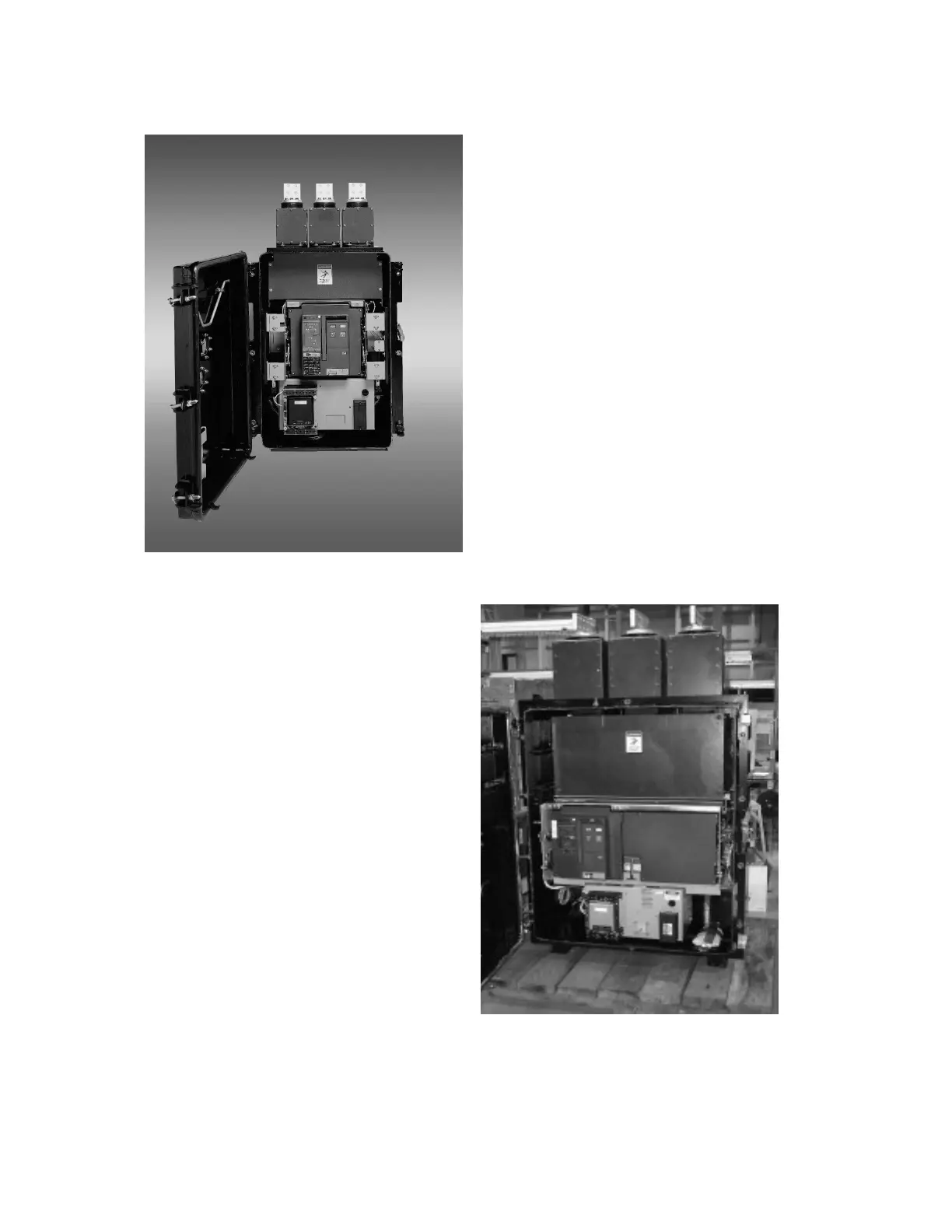

Fig. 1 CM52 800A - 2000A Network Protector
Fig. 1A 3500A - 4500A Network Protector
(NOTE: 2250A – 3000A Not Shown)
