Installation and User manual for the
conventional range of fire panels
EATON www.eaton.com
Technical Data PR000-00-513-05
Effective January 2018
User Information
There are 2 access codes used by the control panel:
access code level 2 - client code (3112)
and
access code level 3 - engineers code
These codes are displayed on the rear of the front panel.
The access level 2 code is also shown on the panel key fob.
Level 2 access permits the following functions:
Silence alarm
Evacuate
Enable and disable zones
Enable or disable sounders
System reset

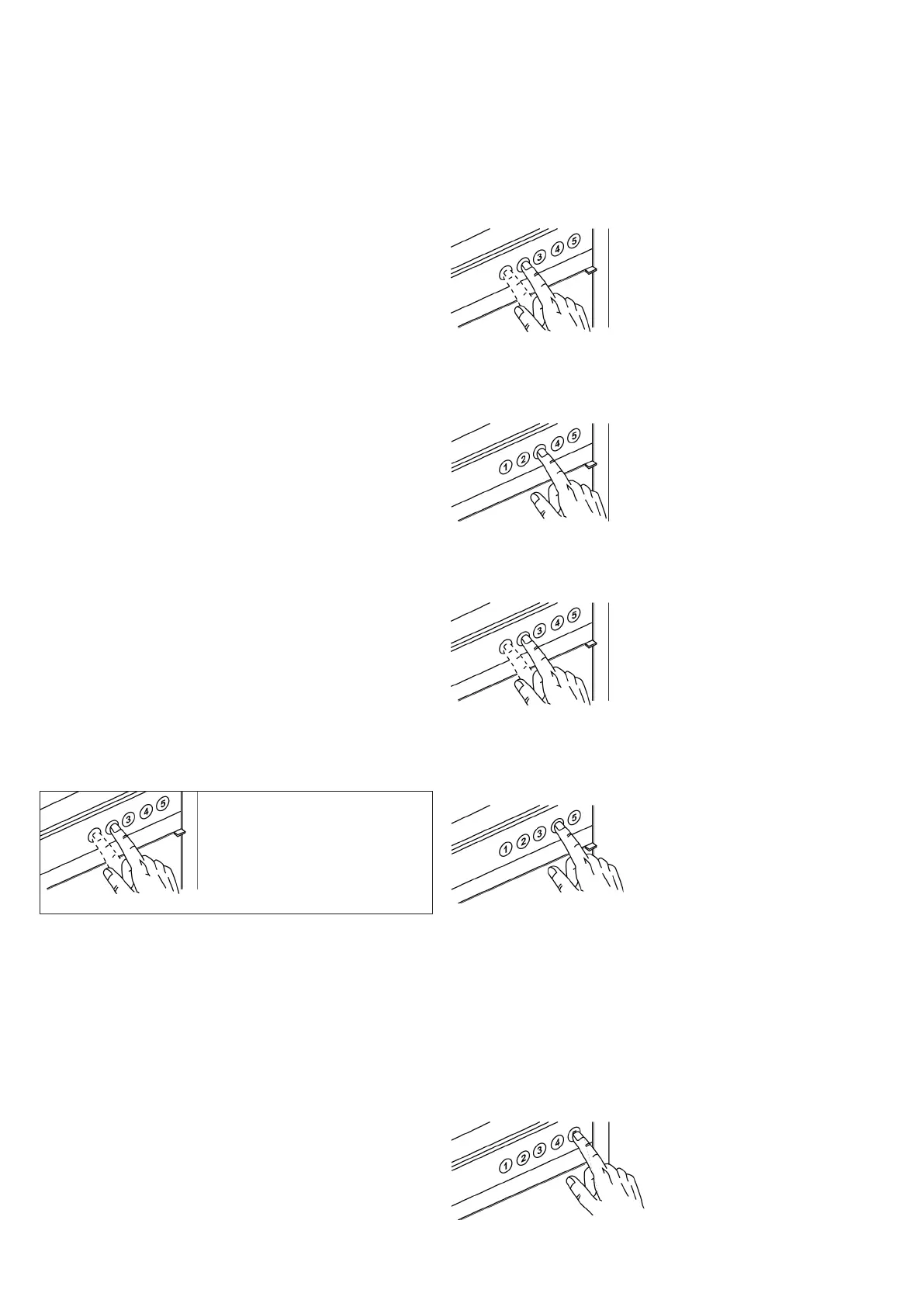

The access code (level 2 or 3) is enabled by pressing the five
control panel front buttons in the correct sequence.
①②③④⑤
An audible signal indicates that the access code keyed in is
correct.
Mute buzzer
Silences control panel’s internal buzzer.
Enter access code level 2, then press button
Silence alarm
Silences external sounders and mutes internal buzzer
Enter access code level 2.
Then press button
followed by
Reset after fire alarm activation
Silences buzzer, resets the panel indicators, resets detectors and
resets control relays.
Enter access code level 2.
Then press button followed by
Ensure any smoke still in the activated detector is blown clear, as
the control panel will activate back into alarm should any smoke
remain.
Reset panel without a fire activation
(e.g. to reset a fault indication when fault latch facility set)
Silences buzzer, resets the panel indicators and resets faults relay.
Enter access code level 2
Then press button followed by
Evacuate
Operates the control panel’s sounder circuits and fire relay(s)
Enter access code level 2, then press button
To silence the alarm during evacuate period
Enter access code level 2
Then press button followed by
Disable zone
Isolates required detection zone from the system
Enter access code level 2, then press button
The yellow LED of the zone 1 will light and the internal buzzer will
pulse rapidly.
Push button several times until both the required zone and
disabled yellow LEDs are lit.
Push button to disable the indicated zone.
Repeat this procedure to disable further zones.
The internal buzzer will pulse at a slow rate and the disabled and
zone disabled LEDs will remain lit.
To silence the internal buzzer
Enter access code level 2, then press button
