4
iLumin Plus
www.eaton.com/lightingsystems
General Information

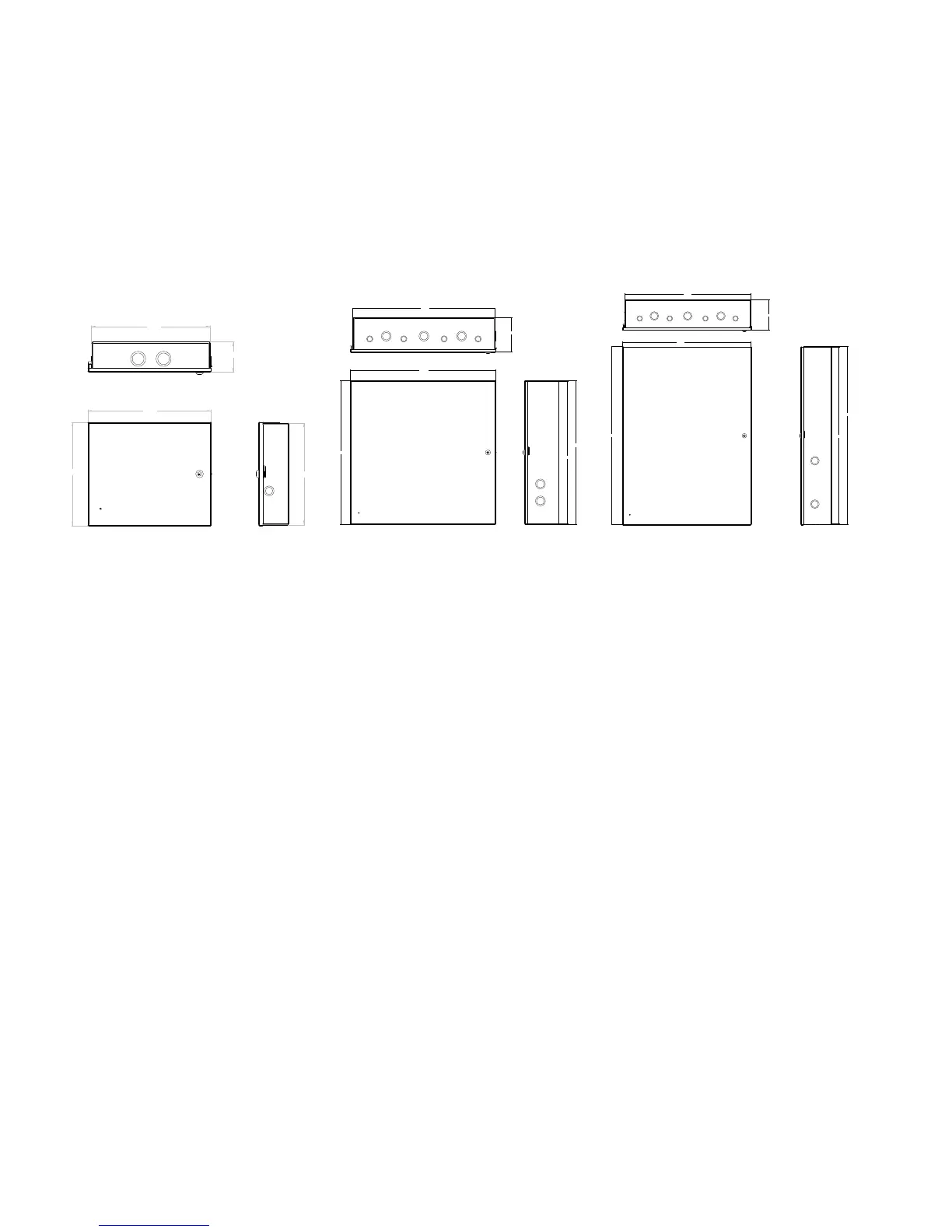

Cabinet Dimensions
ILS-*: Small Enclosure (two DIN rail modules)
ILM-*: Medium Enclosure (four DIN rail modules, plus
optional ethernet)
ILL-*: Large Enclosure (eight DIN rail modules, plus optional
ethernet)
Mounting the Enclosure
The iLumin Plus modules consist of an enclosure with
interior DIN rail modules. Interior DIN rail modules include:
• SCMR1220-NA: twelve 20A latching relays
• SCMH1200-NA: twelve 0-10V dimmers
• SCMD4: four two wire addressable buses
• EG2: Ethernet gateway
• CR1-RJ: PC network connection
Note: Ensure at least three(3) inches of air space around the
iLumin Plus enclosure.
Location and Spacing
The iLumin Plus models are all fully convection cooled;
therefore it is vitally important to ensure that each unit is
installed in a ventilated location that permits sufficient airflow
and provides the correct operating conditions.
The cabinets do not contain fans. Allowing airflow around
the panel will enhance the reliability and longevity of
all models. Locating panels away from heat generating
equipment will also benefit long term reliability. Also ensure
that the stated ambient atmosphere requirements are not
exceeded.
Ambient Atmosphere Requirements
Temperature 32° F to 104° F (0° C to +40° C)
Humidity 0 to 95% non-condensing
Mounting Considerations
• A minimum of 14 inches (360 mm) must be maintained
from the front of the chassis to any other components or
walls. Please make sure to check and follow local code
requirements if additional clearance is needed per code in
your area
• Allow adequate space for future maintenance of the unit.
Do not install in a location that will later be difficult to
access
• The iLumin Plus panel is designed to be mounted vertically
• Use suitable conduits and couplers to link the raceways to
the controller chassis
25.73
LARGE
35.29
35.54
6.07
25.67
25.493
MEDIUM
6.06
25.12
25.34
14.56
14.00
3.56
12.00
