Eaton Magnum DS Instruction Booklet

6
Instruction Booklet IB01900001E
Effective August 2017
Instructions for Magnum DS Metal-Enclosed
Low-Voltage ARC Resistant Switchgear Assemblies
EATON www.eaton.com

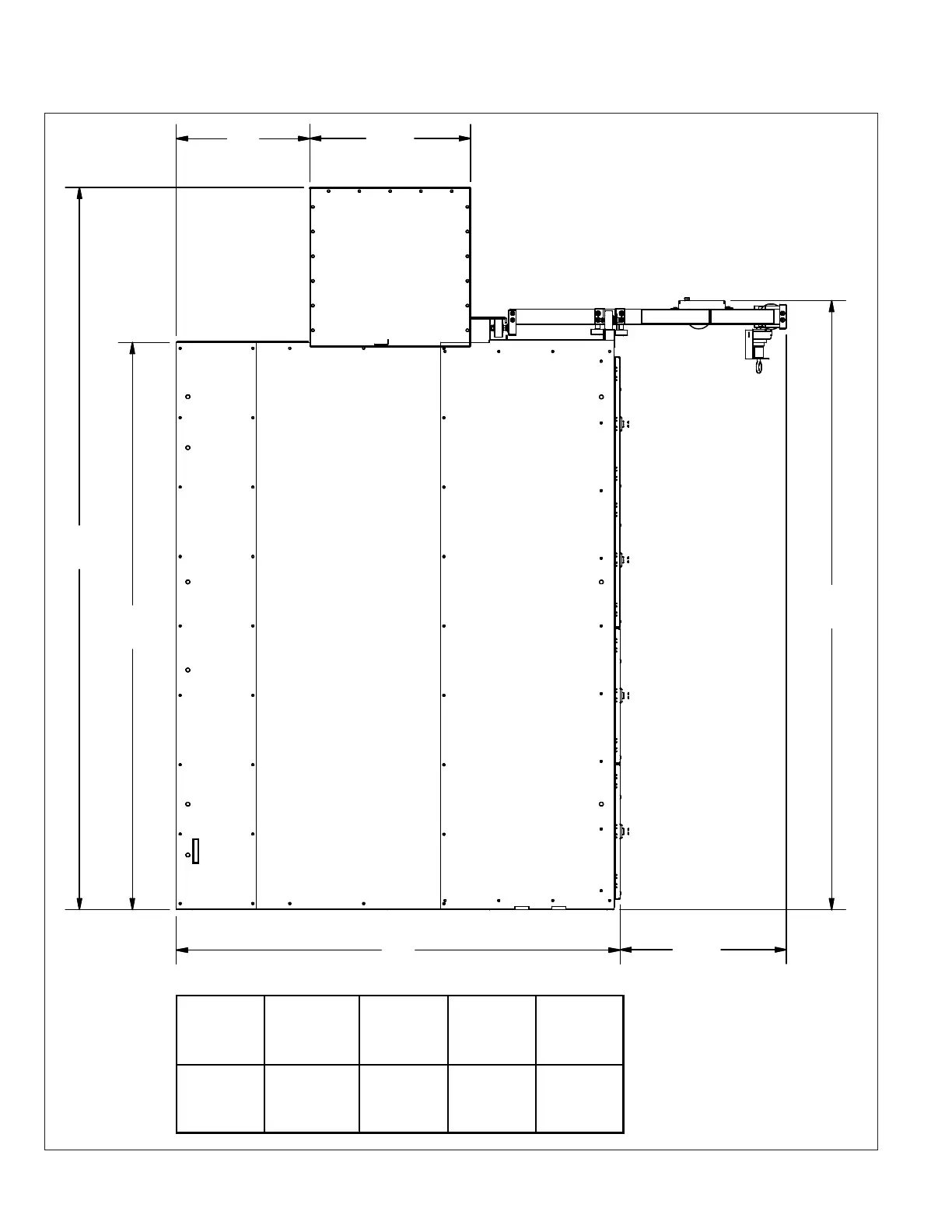

Figure 3. Arc Resistant Switchgear Side Elevation (Rear-Access) With Plenum.
D
72
[1828]
78
[1981]
84
[2133]
90
[2286]
A
22
[550]
28
[702]
34
[855]
40
[1007]
91.9
[2336]
117.1
[2972]
"D"
"A"
26.1
[663]
98.7
[2508]
27.0
[685]

Eaton Magnum DS Specifications

General

Rated Voltage	600V AC
Standards	UL 489, CSA C22.2 No. 5, IEC 60947-2
Voltage Rating	600 V AC
Interrupting Capacity	Up to 200kA
Voltage	600V AC
Poles	3
Interrupting Rating	Up to 200kA
Mounting	Fixed
