Eaton MEMSHIELD 4 User Manual

Support fixings

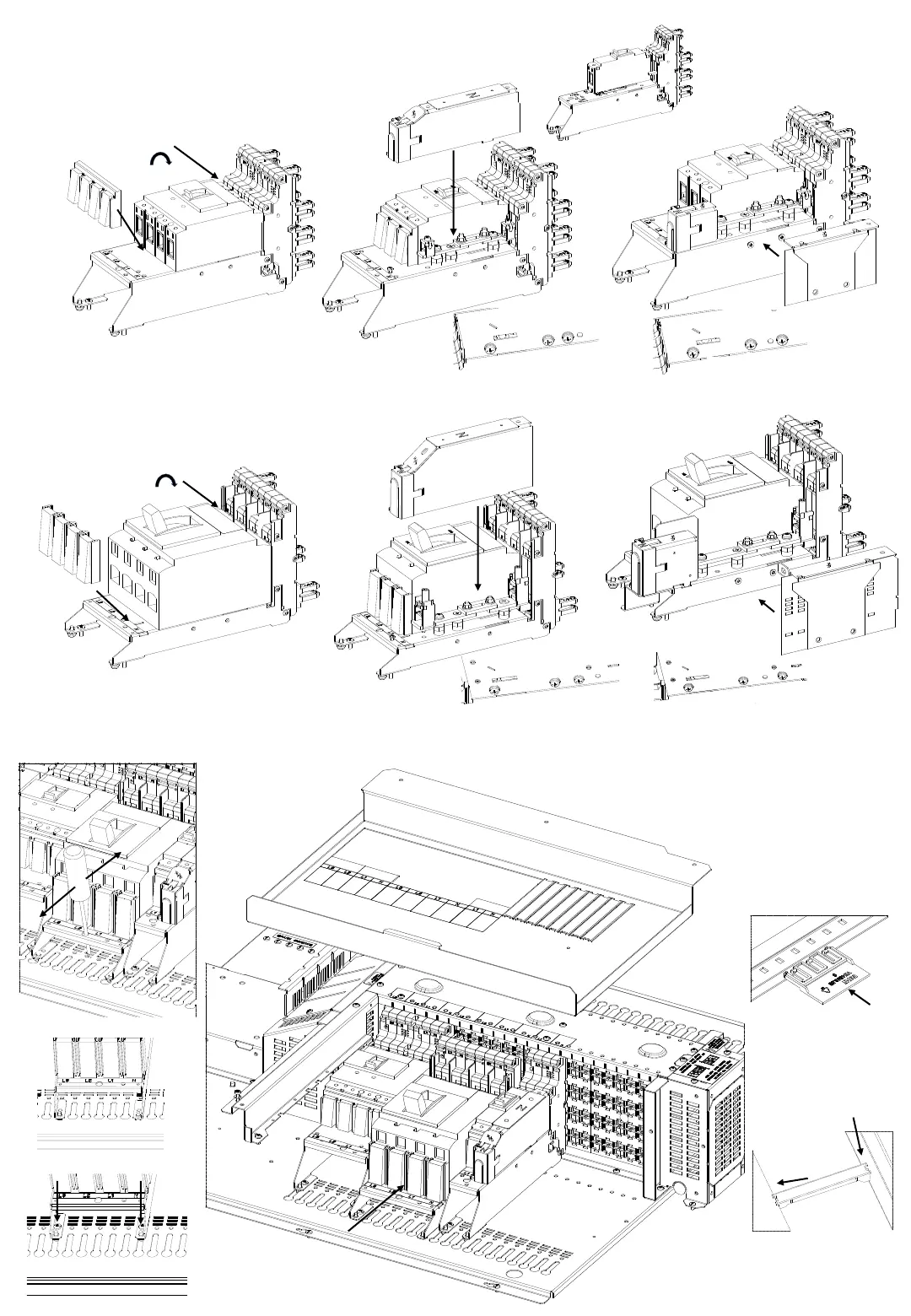

Outgoing MCCB Adaptors and Neutral Modules
NZM1 4 Pole Form 4 Type 6
Compartmentalised/Group Mounted EM4PBFAN14
NZM1 3PN Form 4 Type 6 Group Mounted/
Form 4 Type 2 Compartmentalised. EM4PBGMN1N
NZM1 3PN Form 4 Type 6
Compartmentalised EM4PBCKN1N
Important all Adaptors: Fit MCCB with the adjustment dial end towards
the adaptor stabs
Group mounted
when finger
guard fitted
NZM1 - EM4PBFAN1L1-3N, EM4PBFAN14
EM4PBGMN1N, EM4PBCKN1N
NZM1 SPN Form 4 Type 6
Compartmentalised/Group
Mounted EM4PBFAN1L1-3N
NZM2 - EM4PBFAN24, EM4PBGMN2N, EM4PBCKN2N
Group mounted
when finger guard
fitted
NZM2 4 Pole Form 4 Type 6
Compartmentalised/Group Mounted EM4PBFAN24
NZM2 3PN Form 4 Type 6
Compartmentalised EM4PBCKN2N
9Nm
14Nm
Align adaptor guides in key holes
With screwdriver rack adaptor in or out
Form 4 Type 6 Group Mounted
Group Mounted Cover Blank
EM4PBGMBP
Fit NZM1 Adaptor Cover Shield
NZM2 3PN Form 4 Type 6 Group Mounted/
Form 4 Type 2 Compartmentalised. EM4PBGMN2N
Secure inserted adaptor with x2 fixings
Support fixings
Support fixings
Support fixings
