10
INM MTL83xC PC Modbus Rev 4
5.2 The MTL838C Tab
The items on this tab allow you to configure the MTL838C. Some of these
parameters affect the entire system – others only specific aspects of the MTL838C.
We will cover them in detail below:

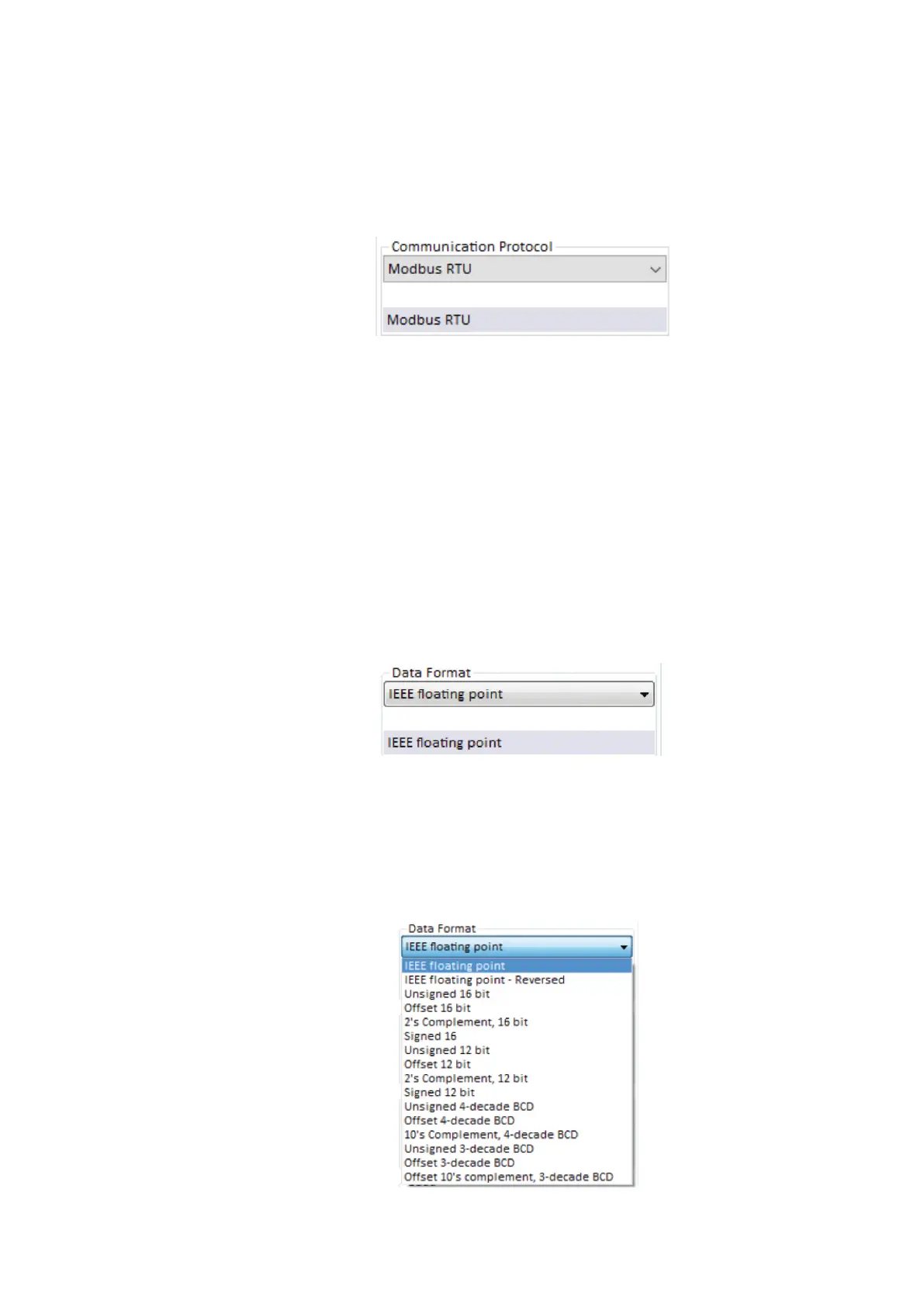

5.2.1 Communication Protocol
Two communication protocols for the RS485 Links are supported by the MTL838C
(Modbus RTU and LLMUX). This manual does not cover the LLMUX protocol
which is Honeywell specific. Please see the INM MTL83xC LLMUX manual for
that protocol. The other Modbus protocol (Modbus TCP) is only supported on the
MTL838C-MBT and is covered in this manual. Note that attempting to download to
the MTL838C when an incorrect protocol is selected will result in an error since the
protocols are hardware dependent.
The protocol is selected by using the dropdown. Make sure the Modbus RTU or
Modbus TCP protocol (whichever is appropriate for your hardware) is selected and
programmed into the unit. Modbus RTU is the default value for this field.
5.2.2 Data Format
Several different formats for the data in the Modbus Registers are supported by
the MTL838C. The list is indicated below. Select the format desired with the
dropdown. Note that changing the Data Format results in several parameters
being reset to their defaults on the MTL831 tabs. Further details on the Modbus
implementation may be found in the document INM838C-MBF. The default Data
Format is IEEE floating point.
