Eaton MTL83*C Modbus User Manual

26
INM MTL83xC PC Modbus Rev 4
6.4 Help

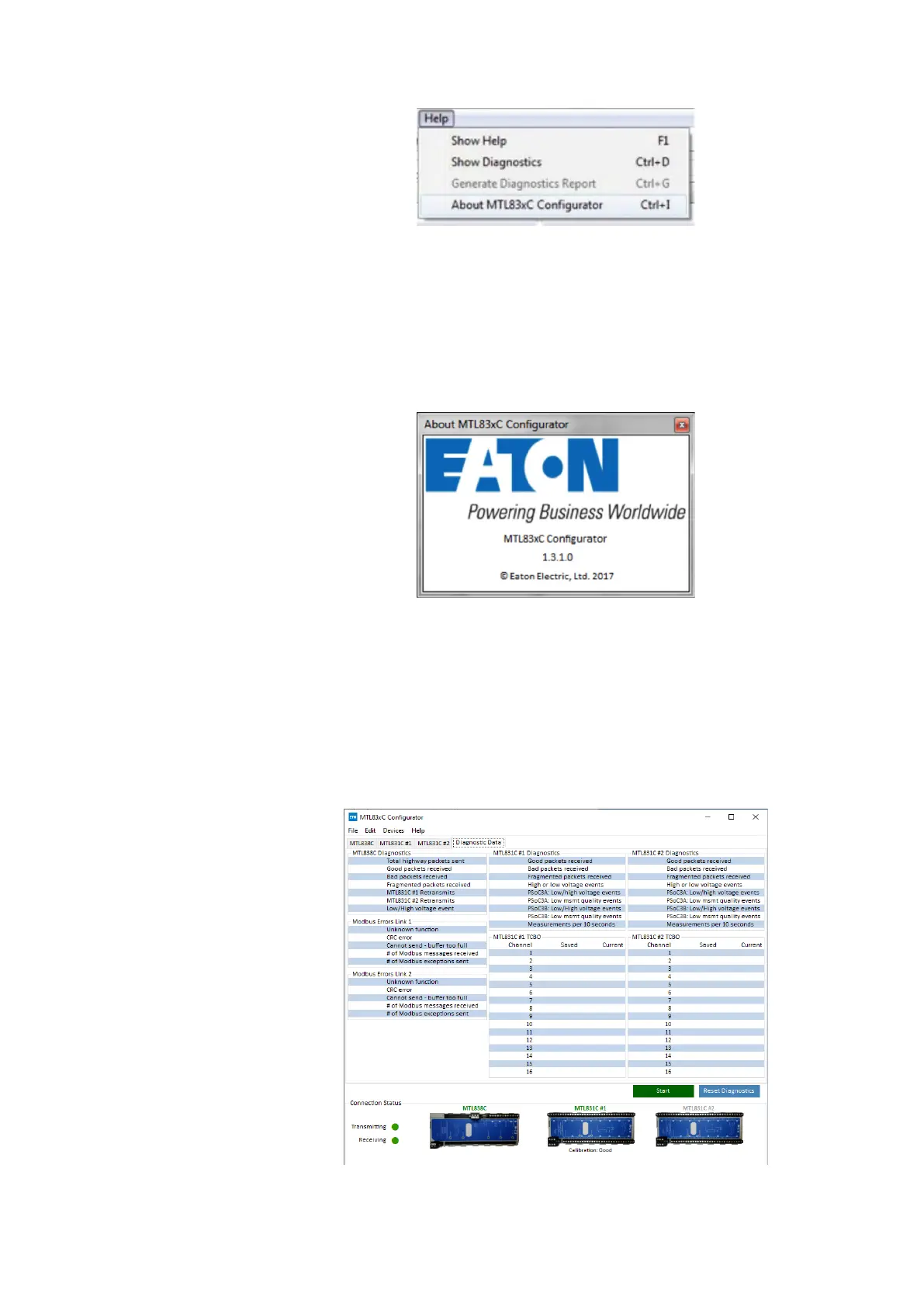

The last menu is the Help menu. Selecting Show Help or pressing F1 opens the
instruction manual for the PC software (this document). This will open the PDF
document for the mode that the software is currently in (Modbus RTU, Modbus
TCP, etc.). If you get the wrong document, change to the mode you wish the
documentation for on the MTL838C tab and try again.
The About MTL83xC Configurator option brings up the following window:
This is where you can find the version of the PC software that you are currently
running. As long as you are connected to the internet, the software will automatically
download and install any updates.
The last two options have to do with diagnostic information. The first option “Show
Diagnostics” causes a fourth (4th) tab to appear that contains diagnostic information.
When the Diagnostic Data tab is displayed, then the menu option changes to “Hide
Diagnostics”. Clicking on this will remove the diagnostic tab. The following is what the
Diagnostic Data tab looks like when it is first opened:
