61

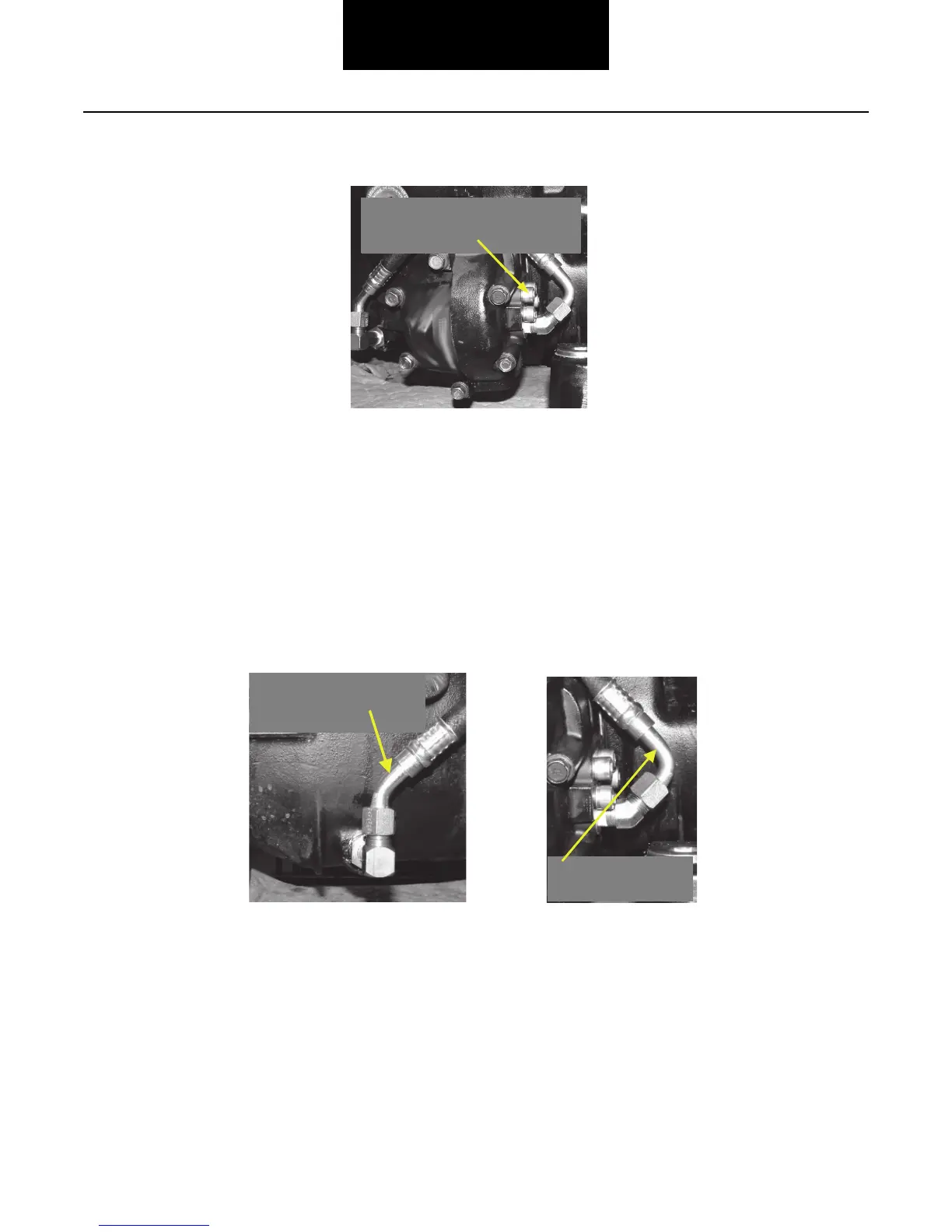

Inertia Brake
Note: The inertia brake is mounted so that the speed sensor is pointed upwards and the 5 allen head bolts and oil hose fitting are
facing the front of the transmission.
These 5 bolts should face
the front of the transmission
Inertia Brake should be mounted in this orientation on the right side.
Install Trim Components
1. Apply thread sealant to filter fitting and install into right side of the transmission case. Torque to 45-55 lb-ft.
(61-75 Nm).
2. Apply thread sealant to the 90º fitting. Install into filter fitting. Torque to 25 lb-ft. (34 Nm) minimum then continue to
ro
tate to position and orient upwards as shown.
3. Install oil supply hose. Connect the 45º end of the hose to the
90º fitting installed in the transmission. Connect the 90º
end of the hose to the 45º fitting on the inertia brake. Tighten hose fittings to 42-48 lb-ft. (57-65 Nm).
Note: Pre
vent the oil supply line from kinking by adjusting the orientation of the two fittings.
45º hose end into
90º hose end into the
45º fitting
To Next Page
