5 Installation
5.3 Cable preparation
MICRO PANEL XV400 5.7"/8.4" 12/2010 MN04802009Z-EN www.eaton.com 29
5.3.1 Overview of interfaces
Connector side:
Service side:
Tab. 9 Overview of interfaces

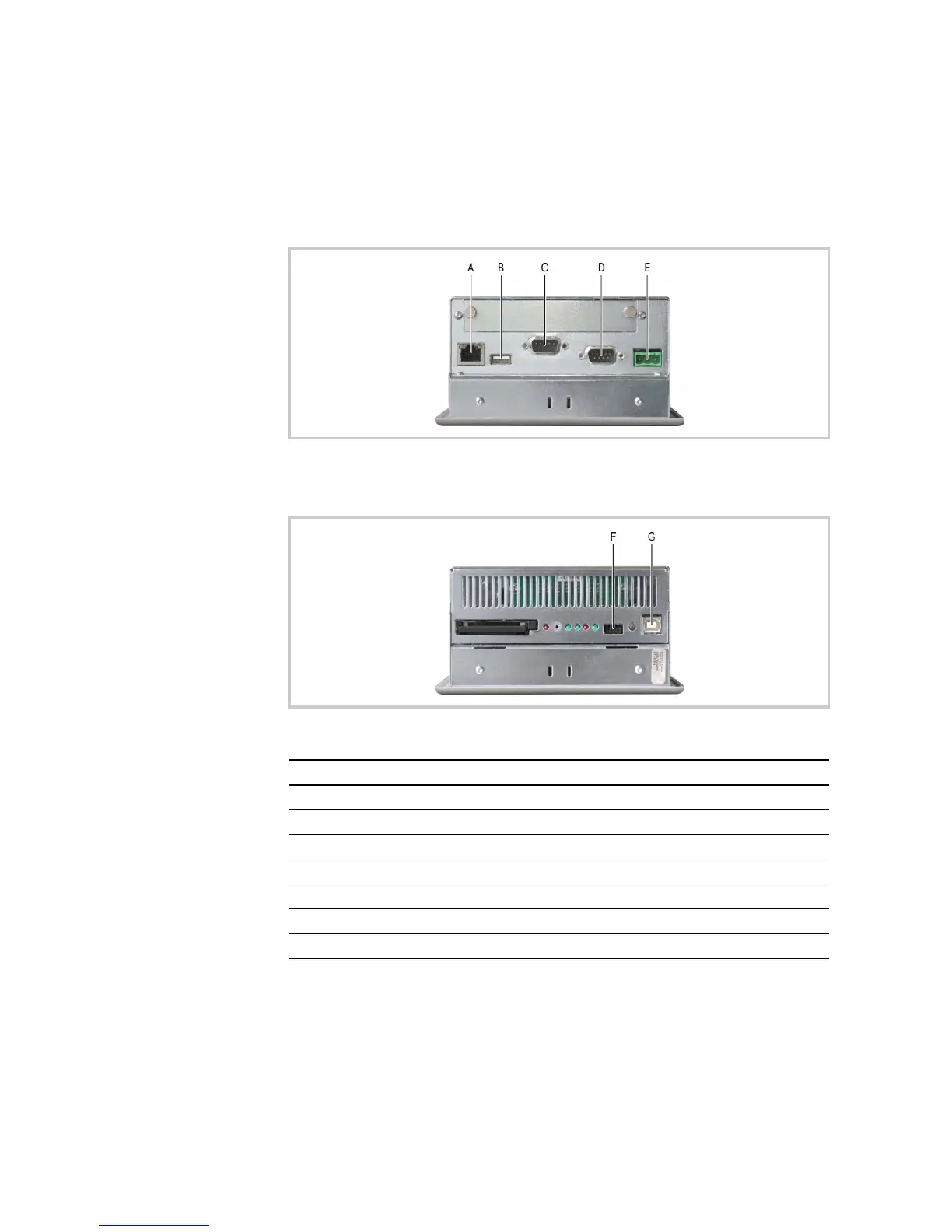

Fig. 10 Connector side of the device
Fig. 11 Service side of the device
Interface Interface description
A Ethernet → Chapter 5.3.5,  34
BUSB Host0 → Chapter 5.3.7,  35
CCAN → Chapter 5.3.8,  36
D System Port → Chapter 5.3.4,  33
E Power supply → Chapter 5.3.3,  32
F DIAG Only for service tasks
G USB Device → Chapter 5.3.6,  35
