14
Rigging Modules to Flybar (Single column Anya)
Note: All complete Anya systems will ship with Flybars already on top of stacks.

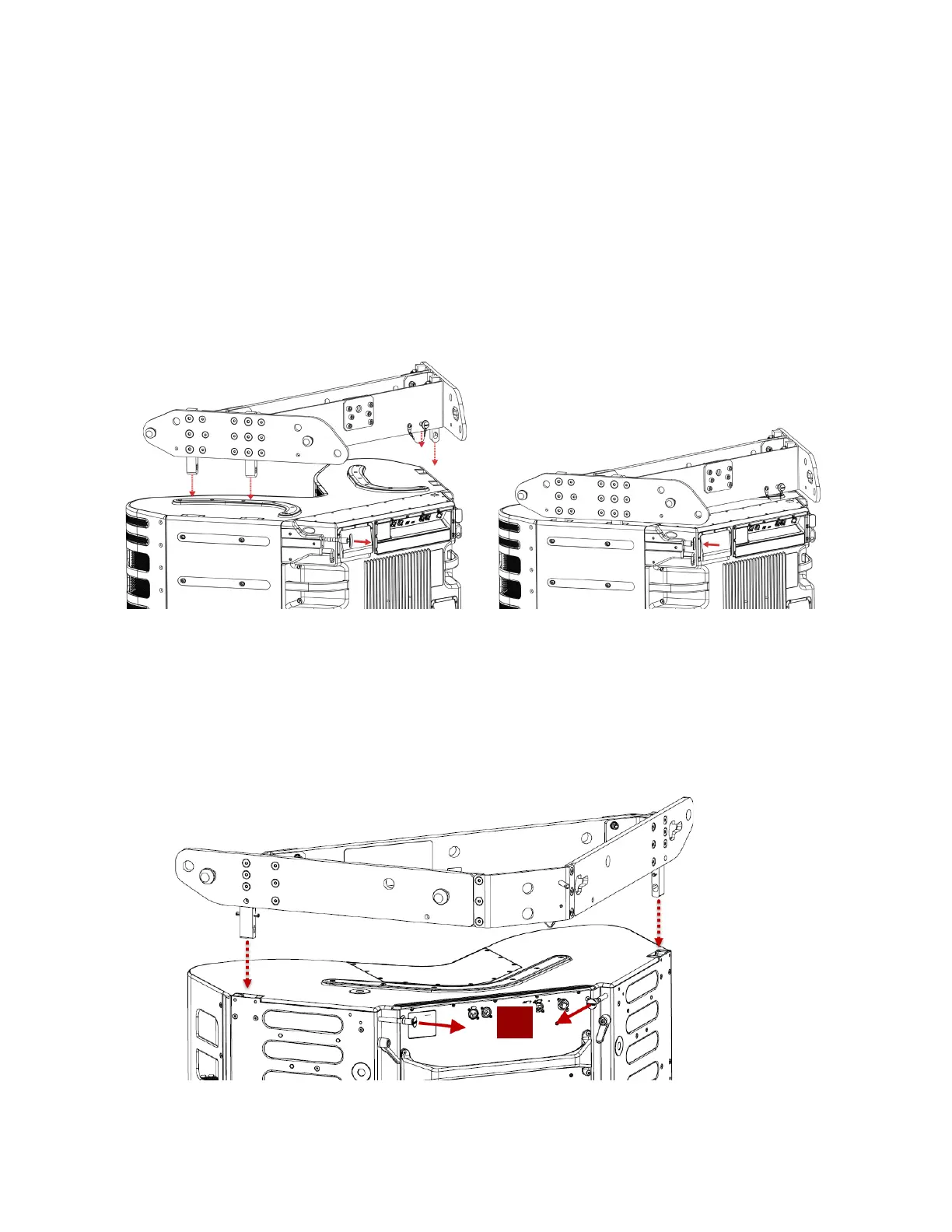

1. The Flybar has built-in Rigging Latches that will slide into the Rigging Channels of the top Anya
module. On the top Anya module, pull back on the Pin Grip to open the Rigging Channel.
2. Lower the Flybar so that the Rigging Latches slide into the Rigging Channels. Once the Rigging
Latches are set into the channel simply push on the Pin Grip to engage the pin
.
3. C
heck each Anya module’s Pin Grip to ensure that you do not see the orange reflective tape.
Any visible orange indicates that the pins are not fully engaged. Pull the Pin Grip all the way
out, then firmly push the Pin Grip in until you feel a positive stop. Re-check the grips fo
r
v
isible orange.
4. Check each rigging engagement mechanism to confirm full connection of all four rigging points.
Rigging Modules to Flybar (Single column Anna)
Note: All complete Anna systems will ship with Flybars in a separate road case.
1. T
he Flybar has built-in Rigging Latches that will slide into the Rigging Channels on the top Anna
module. On the top Anna module, pull back on the Pin Grip to open the Rigging Channel. (Fig. 1)
2. Lower the Flybar so that the Rigging Latches slide into the Rigging Channels. (Fig. 1)
