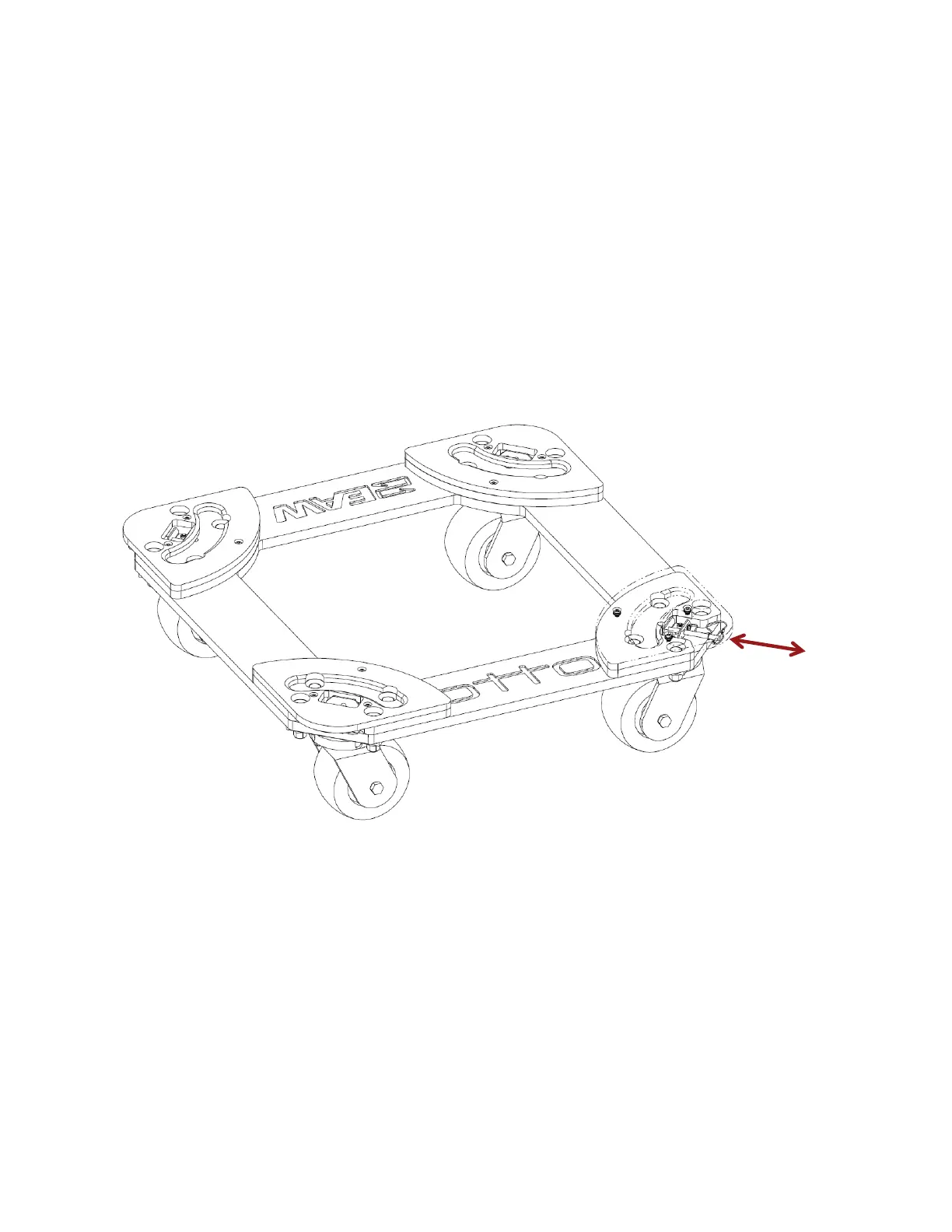

Otto Caster Pallet
The Otto Caster Pallet is designed for transportation of up to 3 Otto modules.
Otto modules attach to the Caster Pallet via quick release pins.
1. Lower the Otto module onto the Caster Pallet so that the stack pads on the Otto module
line up with the recesses in the pallet.
2. Release the 4 quick release pins from the Caster Pallets Rigging Brackets.
3. Push over (to left) the four (4) Latch Grips to release the Rigging Latches from their locked
position, allowing the Rigging Latches to lower into the Caster Pallet’s Rigging Brackets.
(See Step 2b in Rigging Modules from Modules)
4. Secure the 4 quick release pins back into the Caster Pallets Rigging Channels.
