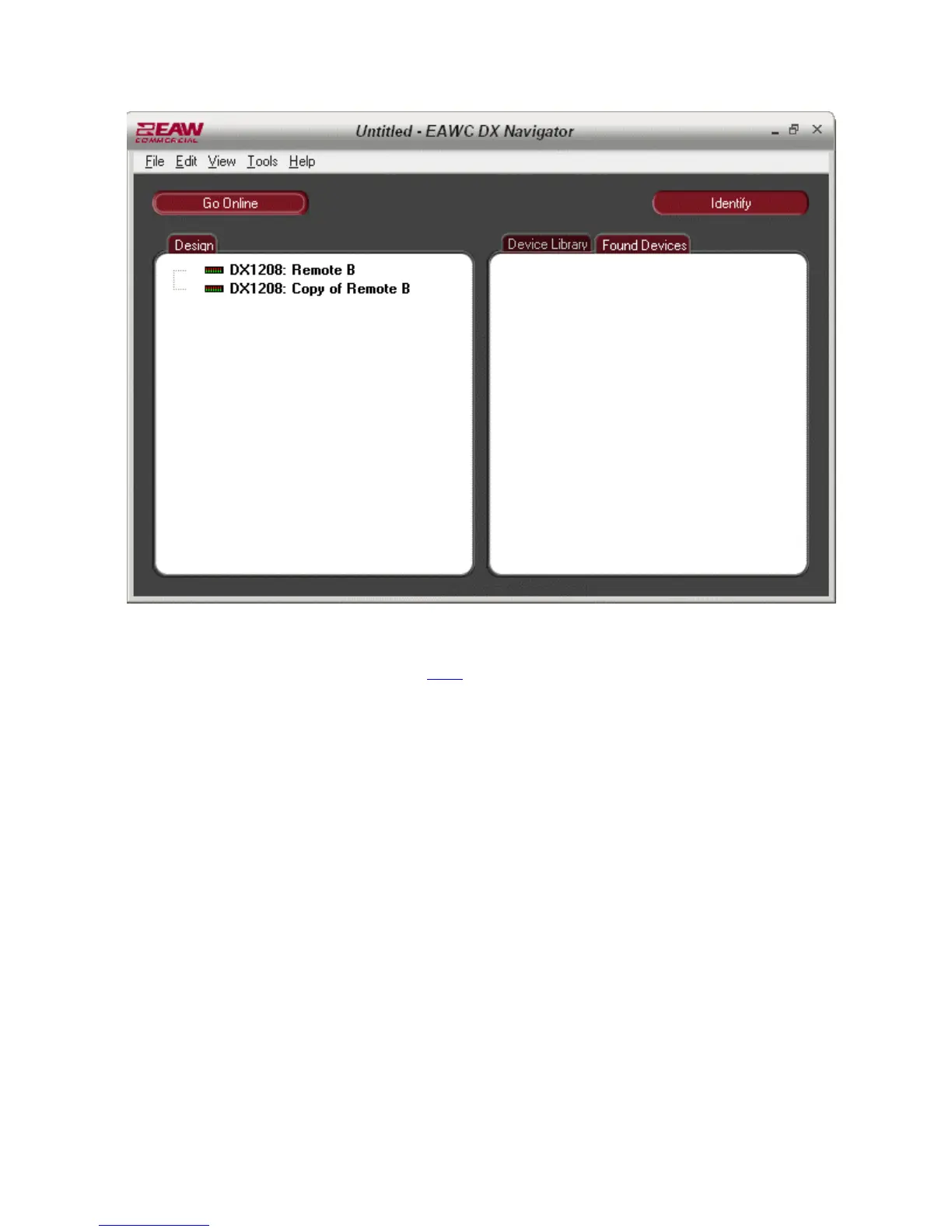

5. A new design named “Copy of [Design Name]” appears at the bottom of the list. All of
the current source design settings are written to new design EXCEPT for Permissions,
Event Log data, and Presets (see Note
); the IP and Master/Slave settings are, however,
copied to the new device.
To delete a design:
1. In the Design tab,
<CLICK> on the device you wish to delete.
2. Select Cut or Delete from the Edit menu, or press the
<Delete> key. Using the Cut
command copies the selected device’s settings to the Windows clipboard (for
subsequent Paste operations), whereas using the Delete command simply removes the
design without affecting the contents of the clipboard.
Found Devices + Design Tabs
Between the two tabs, design settings can be uploaded to online hardware, and online
hardware settings can be downloaded to designs. The examples below illustrates the process
of archiving and restoring the current settings of a hardware setup to/from a Site File. While
the upload/download operations are nearly identical, there are small differences between
them, as noted in the example below.
To archive a system to a Site File:
1. In the Main Window,
<CLICK> the File menu and select New. The Design tab is
cleared, and the Title Bar of the Main Window displays “Untitled.”
2. Go online with DX Navigator.
16
