EAW NT29 - Section 9 Block Diagram; Block Diagram

26
5. Install and refasten the amplifier panel, securely
tightening all screws.

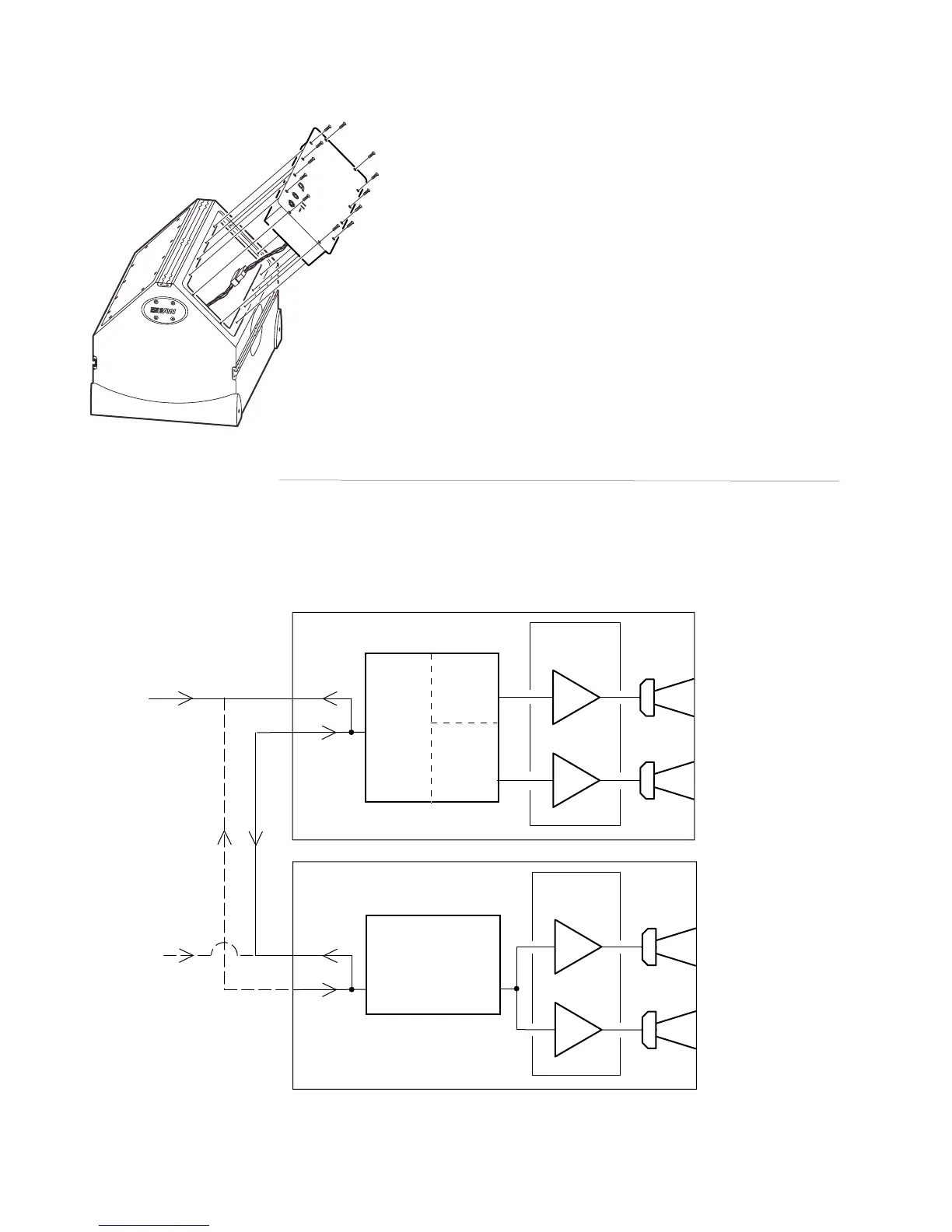

Section 9 Block Diagram
This is a block diagram of an NT Full-Range with an NT subwoofer. A full-range
input signal is connected to the full-range loudspeaker and looped through to the
subwoofer (solid lines). Alternately, the full-range input can be connected to the
subwoofer and looped through to the full-range loudspeaker (dotted lines).
AMP
LF
AMP
LF
EQ
DELAY
LPF
LIMIT
DSP PC
BOARD
INPUT A/D
IN
THRU
D/A
AMPLIFIER &
POWER SUPPLY
ASS'Y
1000 W @ 4 OHM
1000 W @ 4 OHM
NT SUBWOOFER
AMP
HF
AMP
LF
HPF
EQ
LIMIT
DELAY
DSP PC
BOARD
INPUT A/D
IN
THRU
D/A
D/A
AMPLIFIER &
POWER SUPPLY
ASS'Y
500 W @ 4 OHM
1000 W @ 4 OHM
LPF
EQ
LIMIT
DELAY
NT FULL-RANGE
(FULL-RANGE
INPUT SIGNAL)
FULL-RANGE
INPUT SIGNAL
