第二步：零件组装
Step 2 - Parts Assembly

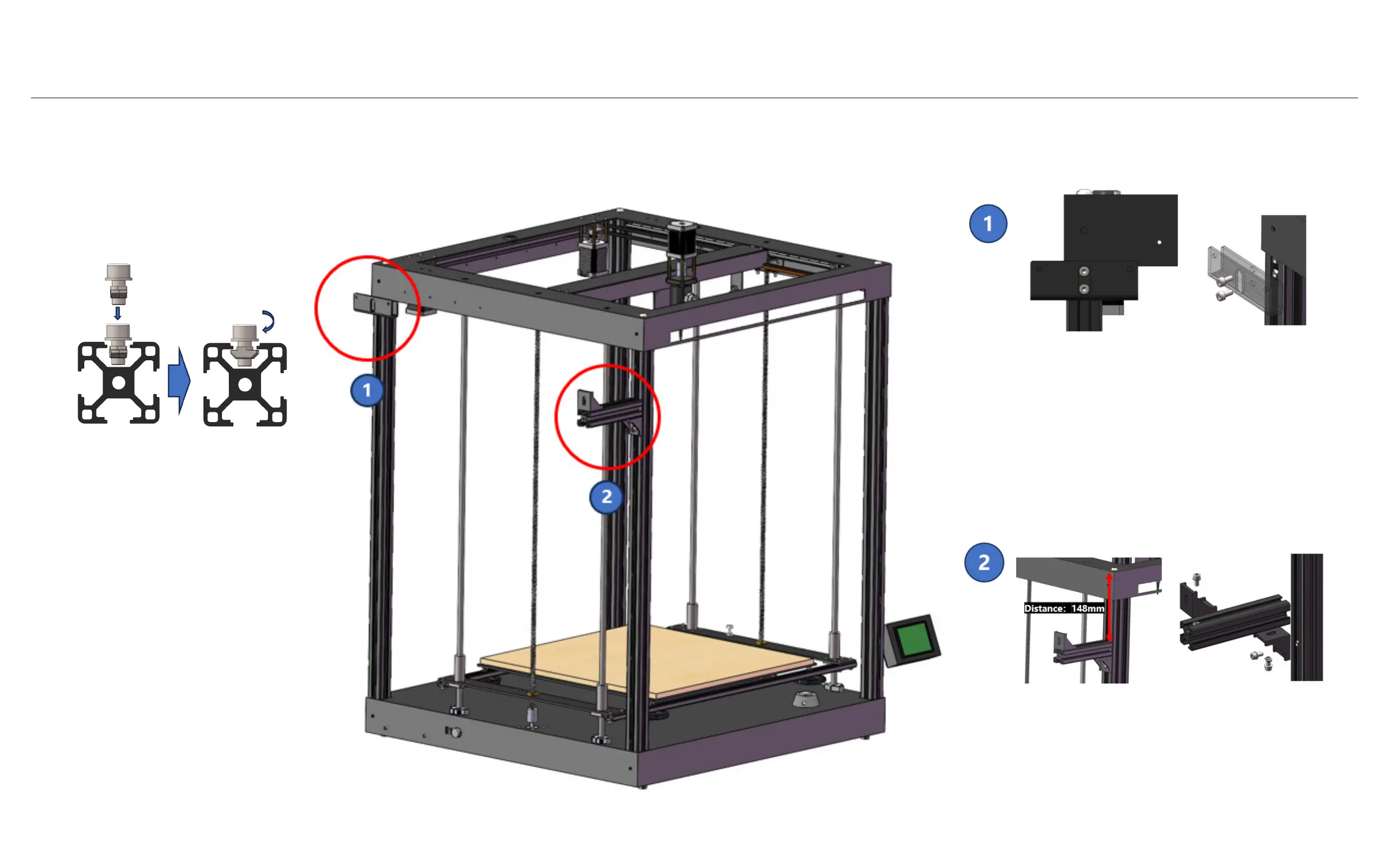

Install 5L cartridge aluminum profile
安装5L 料筒铝型材
Install T-Nuts.
安装T型螺母
First, fix the bolt and the
T-nut, then put the T-nut into
the groove of the aluminum
profile in a parallel direction,
and quickly tighten the bolt
clockwise so that the T-nut
rotates 90° in the aluminum
profile and gets stuck in the
groove of the aluminum pro-
file.
首先将螺栓与T型螺母固定，让后
将T螺母平行方向放入铝型材的槽
内，顺时针快速拧紧螺栓，使T型
螺母在铝型材内旋转90°卡在铝型
材槽内。
The distance between the beam profile and the top
is 148mm.
横梁型材与顶端距离为148mm。
Use 2 M5-10 bolts and T-nuts to install the putter
hanging plate.
使用2个M5-10的螺栓和T型螺母安装putter挂板。
