EB-Therm 500 should not be placed so it
is exposed to direct sunlight and draughts
because these can affect the thermostat
functions. Take into account the thermo-
stat IP class when fiing.
The floor sensor is fied in a spiral tube
placed at the height of the floor surface.
The end of the hose must be sealed in
order to simplify replacement of the floor
sensor.
Fit the EB-Therm in a 65 mm junction box.
Ensure the box is flush with the wall or
alternatively the tiles.

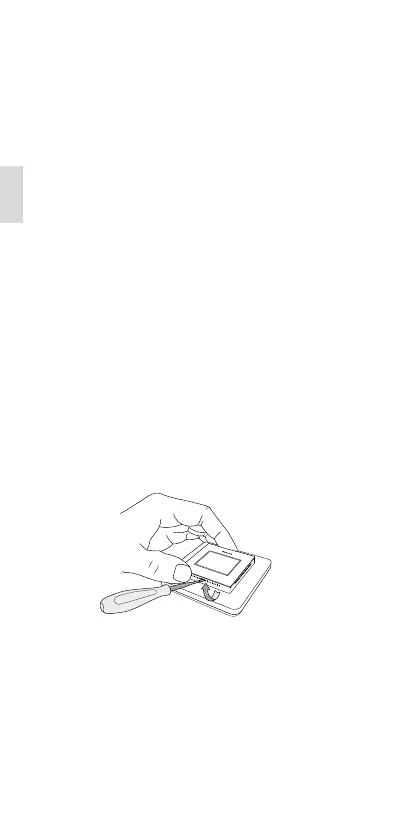

1. Li the front panel and frame by push-
ing a screwdriver into the groove on the
underside, see picture. Li the front panel
upwards until you hear a "click".
2. Connect according to the instructions on
the back of the thermostat. The protective
conductor for incoming supply and heat-
ing cable is connected using a connection
clamp in the box.
