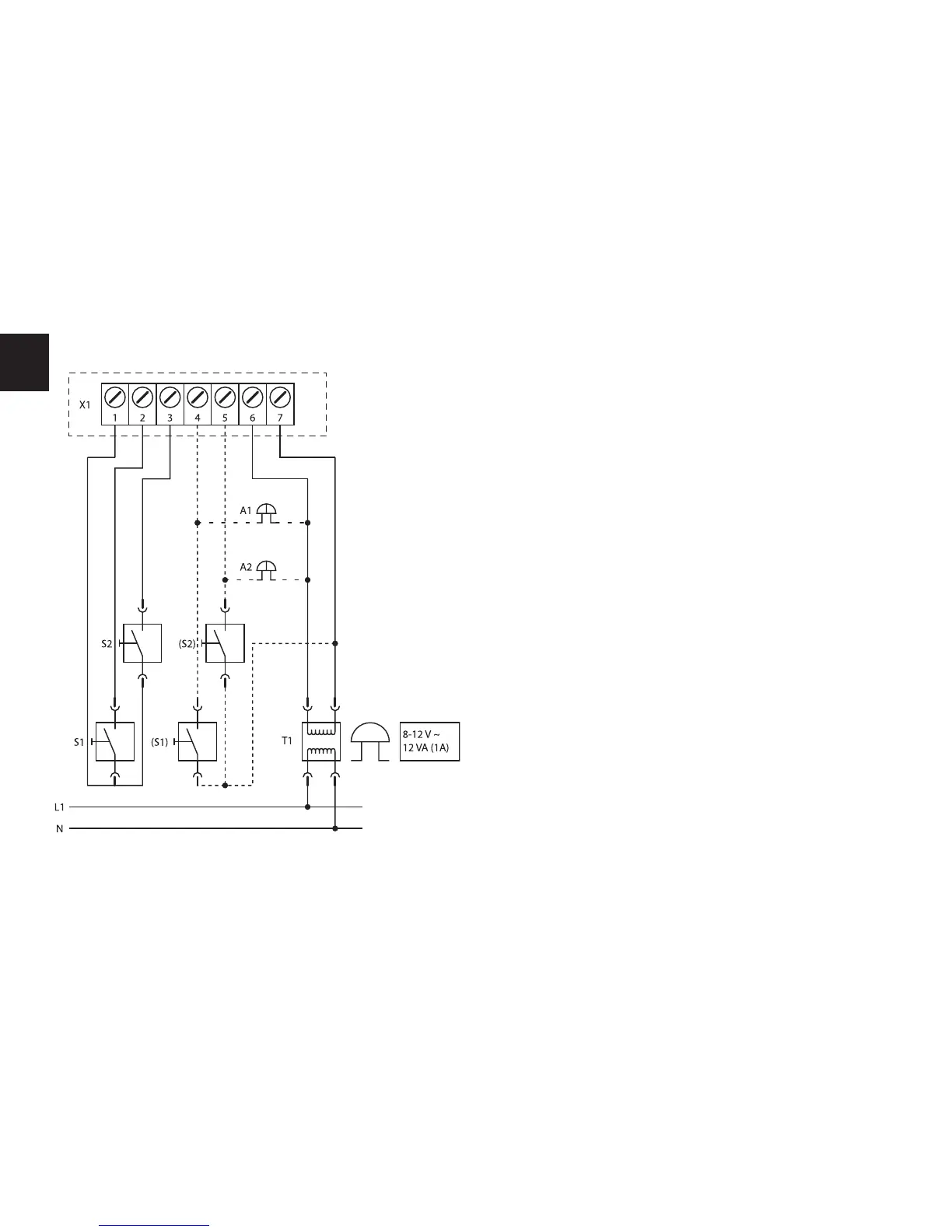

EBENCH KH 2055 - Wiring Plan Diagram


|
Operating Instructions
GB
GB
X: Junction plate
S: Front door bell
S: Backdoor bell
(S): Front door bell with potential
(S): Back door bell with potential
A: Parallel connection (for additional set of chimes)
A: Parallel connection (for additional set of chimes)
T: Isolating bell transformer
L: Current Phase 
N: Neutral wire
Wiring Plan
