ECA PROTEUS PREMIX PPR Series - 15- ANNEXES; 15.1 Characteristic Curve of Water Pressure Height of The Pump (Pump Head-Flow Rate)

43
15-ANNEXES

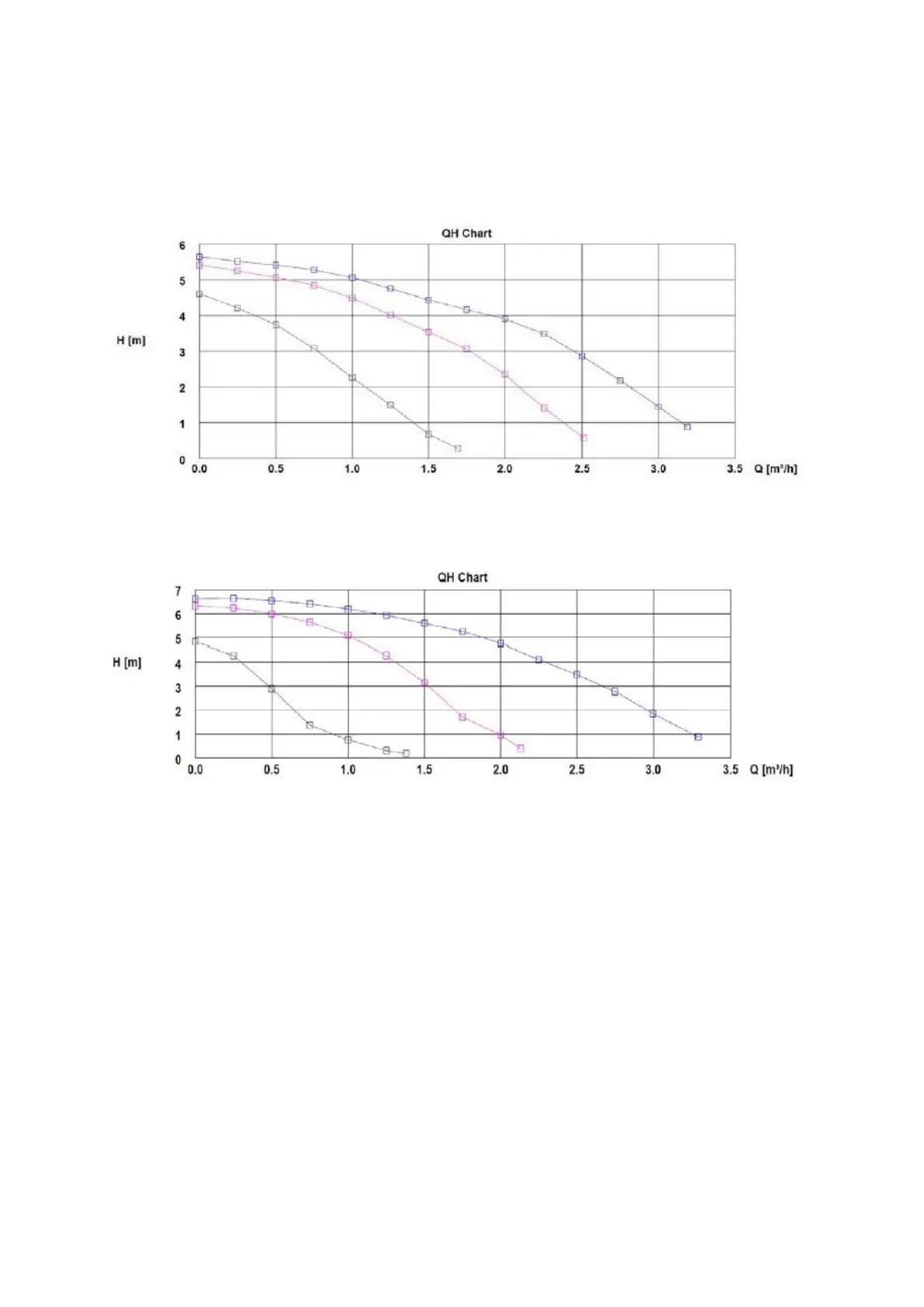

15.1 Characteristic Curve of Water Pressure Height of The Pump (Pump Head- Flow Rate)
15-60 (for 24-3 kW Models)
Graph 2
15-70 (for 35 kW Model)
Graph 3
