Ecco 65S - Illustrations and Parts Identification

Ecco 65S
ECCO FINISHING AB
NACKA - SWEDEN
Made in Sweden
7
65130 F301
Ecco 65S

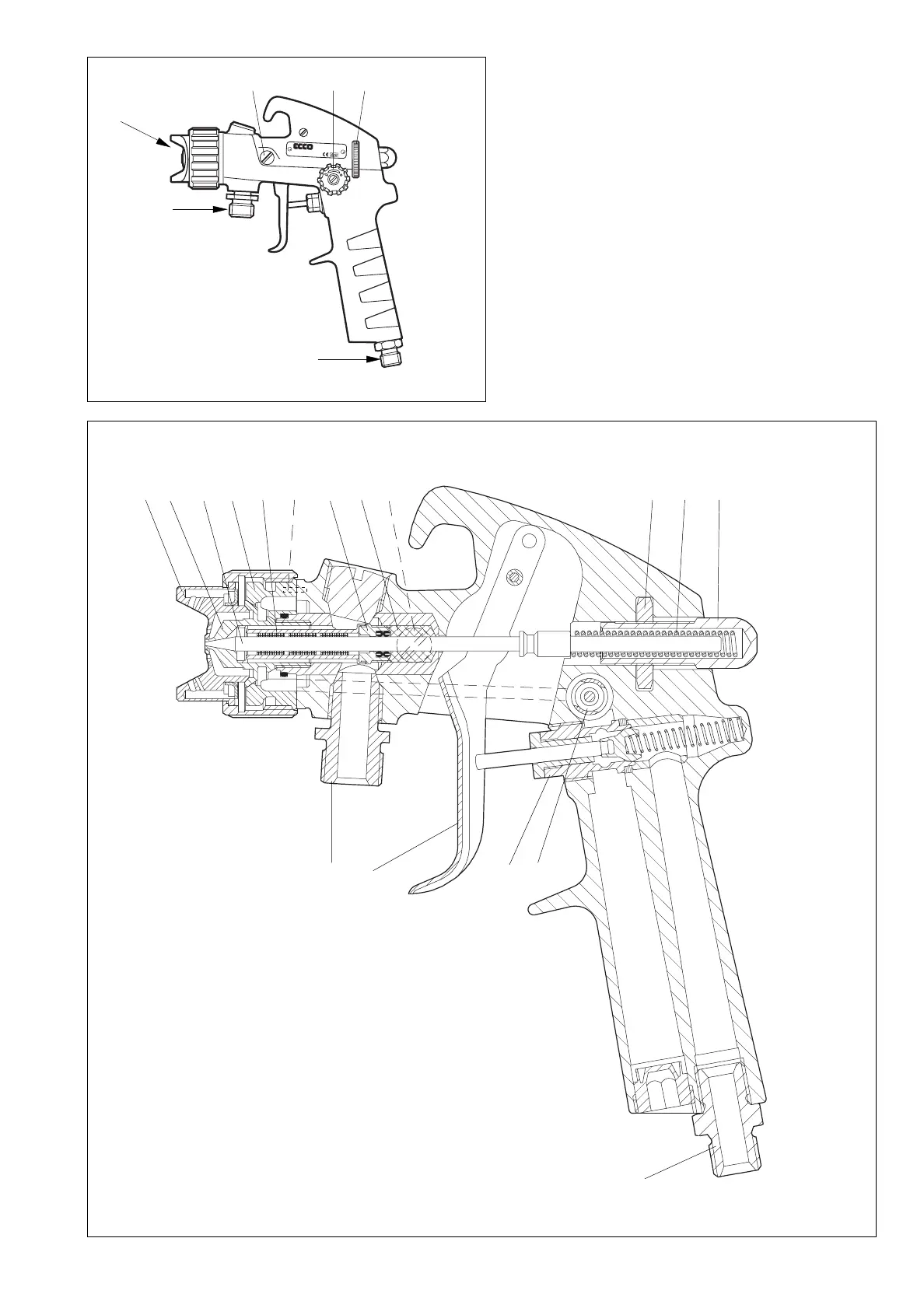

Fig. 2
2. Packing set
3. Packing screws
4. Fan with control
12. Paint needle
14. Back head
15. Spring
16. Wheel (Paint flow adjusting)
17. Trigger
21. Air valve
28. Guide pin
29. Packing screw
30. Distributor ring (Air distrubutor)
32. Paint nozzle
33. Air cap
34. Paint hose connection nipple (G 3/8)
42. Air hose connection nipple (G1/4)
47. Strainer (optional equipment)
33 32 12 30 47 28 29 2 3
16 15 14
42 17
21 4
34
65130 F230
Fig. 1
16
4
3
34
G 1/4
3 bar
42
G 3/8
0.5-1 bar
0.7 bar
