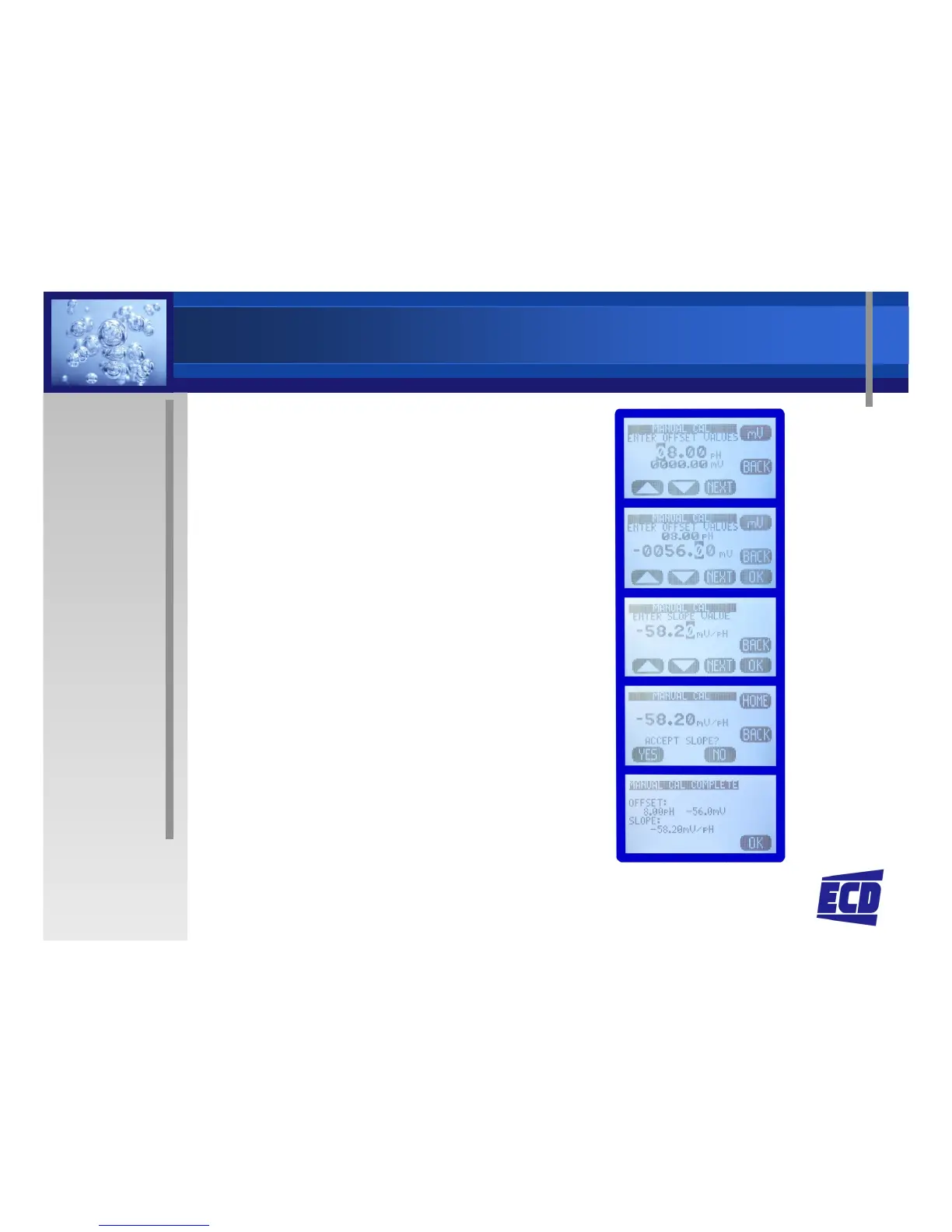

T80 Manual Calibration
Manual Calibrati
on allows
the Offset and Slope to be
entered manually
Test an electrode in the
shop and install it and
enter the Cal Data in the
field
Enter the PV value, Press
Enter the PV value, Press
mV and enter the
associated mV value
Accept the entr
y and
enter the slope value
Accept the Slo
pe, press
OK, Exit and Save the
changes
11
13
Table of Contents
Inputs
4
Outputs
4
Power Requirements
4
6 Point Advantage
6
Three Home Screens
7
Data Screen
7
MV Screen
7
Graphical Screen
7
T80 Calibration
9
New Sensor?
9
Auto Calibration
9
Standardize
9
Configure Transmitter
13
LCD – Display
13
Output
13
Serial
13
Display Set up
14
Line, Gauge or Bar Graphs
14
Tag - 52 Characters
14
Set the 4-20 Ma RANGE
15
Calibrate the Output
15
Choose 4-20 Ma Fault Condition
15
3 Relays
16
Choose Relay Function
16
Configure Alarm Set Point
16
Output → Hold
17
Serial Configuration
17
Password Protection
17
Transmitter INFO
18
Sensor INFO
19
System Simulate
20
Relay Simulation
21
4-20 Ma Simulation
21
Wiring and Power Board
22
T80 Universal Transmitter
23
Model T80 Part Number Guide
24
S80 Intelligent Sensors
25
Electro-Chemical Devices
26
