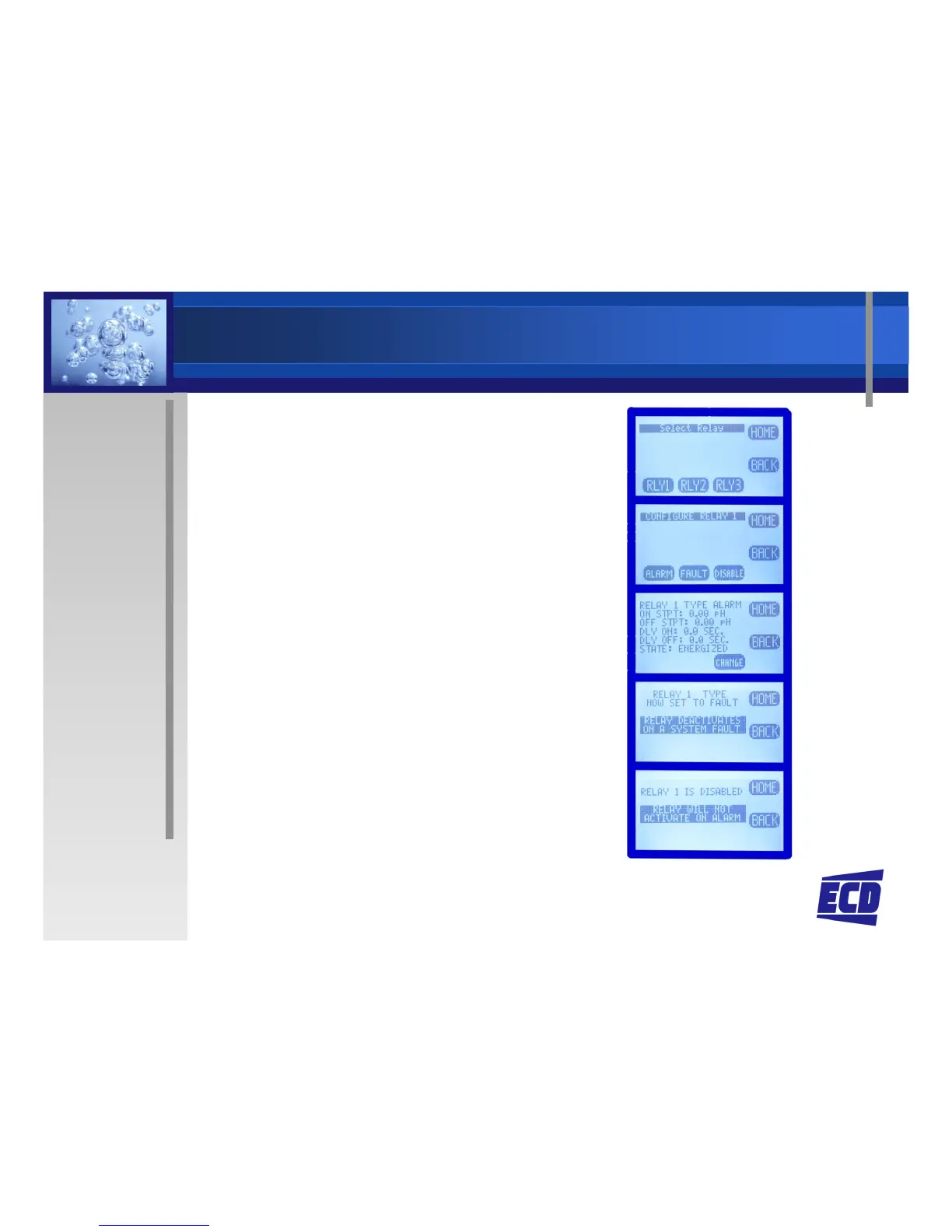

Configure Outputs -
Relays
3
Relays
SPDT,form 1C, 250 VAC, 5
Amp resistive maximum
Ch
oose
Relay function
Alarm –
Set Point
Fault –
Failure Alarm
Disable –
Inactivates relay
and removes Icon from
Home Display
Home Display
Con
figure
Alarm set point
Set Point ON value
Set Point OFF, determines
whether Hi/Lo s
et point
Delay Times, Amount of
time the PV must stay
above or below set point
before activation
15
17
Table of Contents
Inputs
4
Outputs
4
Power Requirements
4
6 Point Advantage
6
Three Home Screens
7
Data Screen
7
MV Screen
7
Graphical Screen
7
T80 Calibration
9
New Sensor?
9
Auto Calibration
9
Standardize
9
Configure Transmitter
13
LCD – Display
13
Output
13
Serial
13
Display Set up
14
Line, Gauge or Bar Graphs
14
Tag - 52 Characters
14
Set the 4-20 Ma RANGE
15
Calibrate the Output
15
Choose 4-20 Ma Fault Condition
15
3 Relays
16
Choose Relay Function
16
Configure Alarm Set Point
16
Output → Hold
17
Serial Configuration
17
Password Protection
17
Transmitter INFO
18
Sensor INFO
19
System Simulate
20
Relay Simulation
21
4-20 Ma Simulation
21
Wiring and Power Board
22
T80 Universal Transmitter
23
Model T80 Part Number Guide
24
S80 Intelligent Sensors
25
Electro-Chemical Devices
26
