ECG tb6560 User Manual

The 3
rd
Generation TB6560 Stepper Driver Set
-
-
-
-
S
S
A
A
V
V
E
E
B
B
A
A
S
S
E
E
Email: ebay@savebase.com Web: http://stores.ebay.co.uk/SAVEBASE 10
7. DIP Switches Settings (Current, Decay Mode, Microstep)
This driver adopts a 6-bit DIP switch to set motor operating current, decay mode (buffer) and microstep resolution, as shown
below:

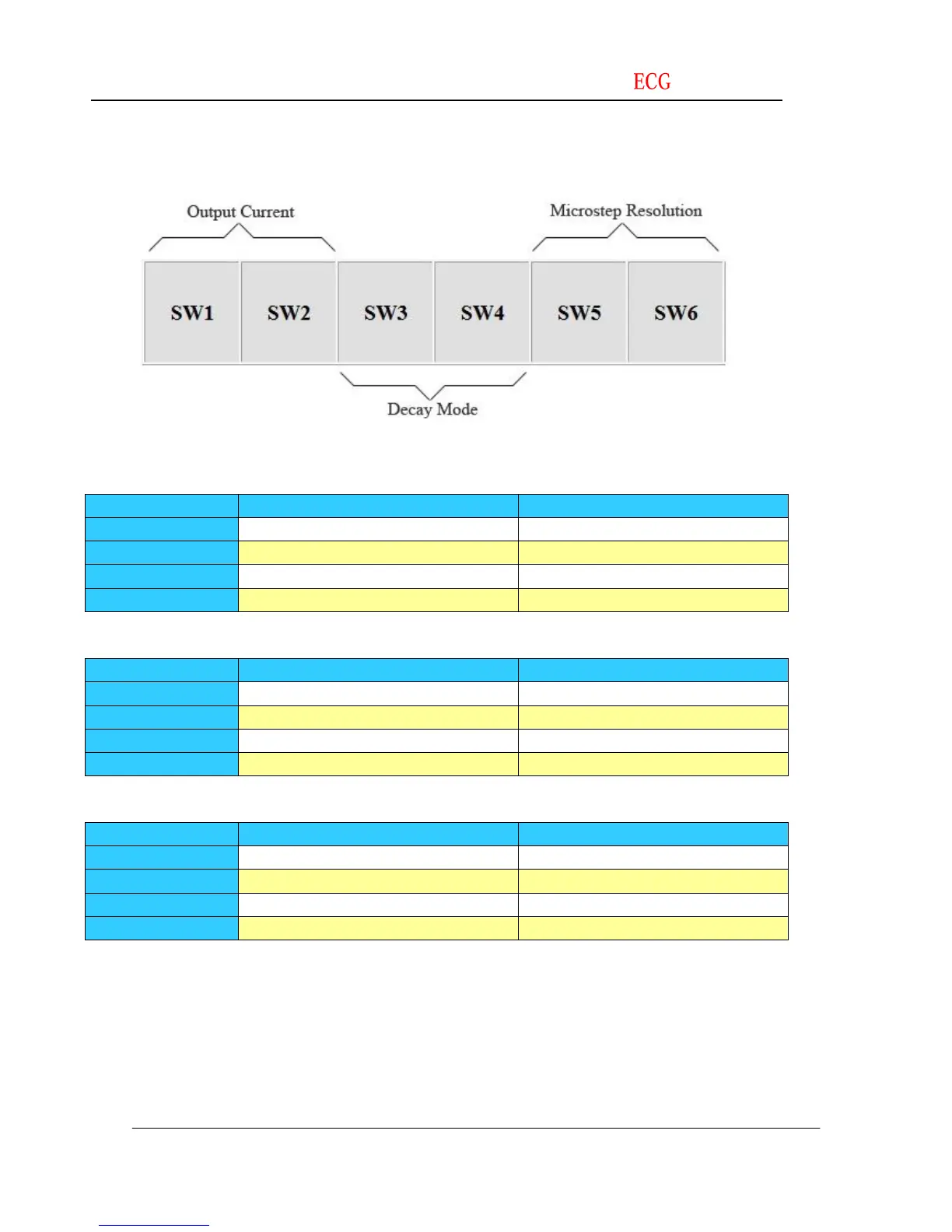

Figure 11: DIP Switches Settings
Output Current Selection:
Output Current
SW1
SW2
100%
ON
ON
75%
ON
OFF
50%
OFF
ON
25%
OFF
OFF
Decay Mode (Buffer) Selection:
Decay Mode (Buffer)
SW3
SW4
25%
ON
ON
50%
ON
OFF
75%
OFF
ON
100%
OFF
OFF
Microstep Resolution Selection:
Microstep Resolution
SW5
SW6
1
ON
ON
2
ON
OFF
8
OFF
OFF
16
OFF
ON
8. Wiring Notes
In order to improve anti-interference performance of the driver, it is recommended to use twisted pair shield cable.
Please shut down the power before plugging or unplugging the connectors from the driver.
