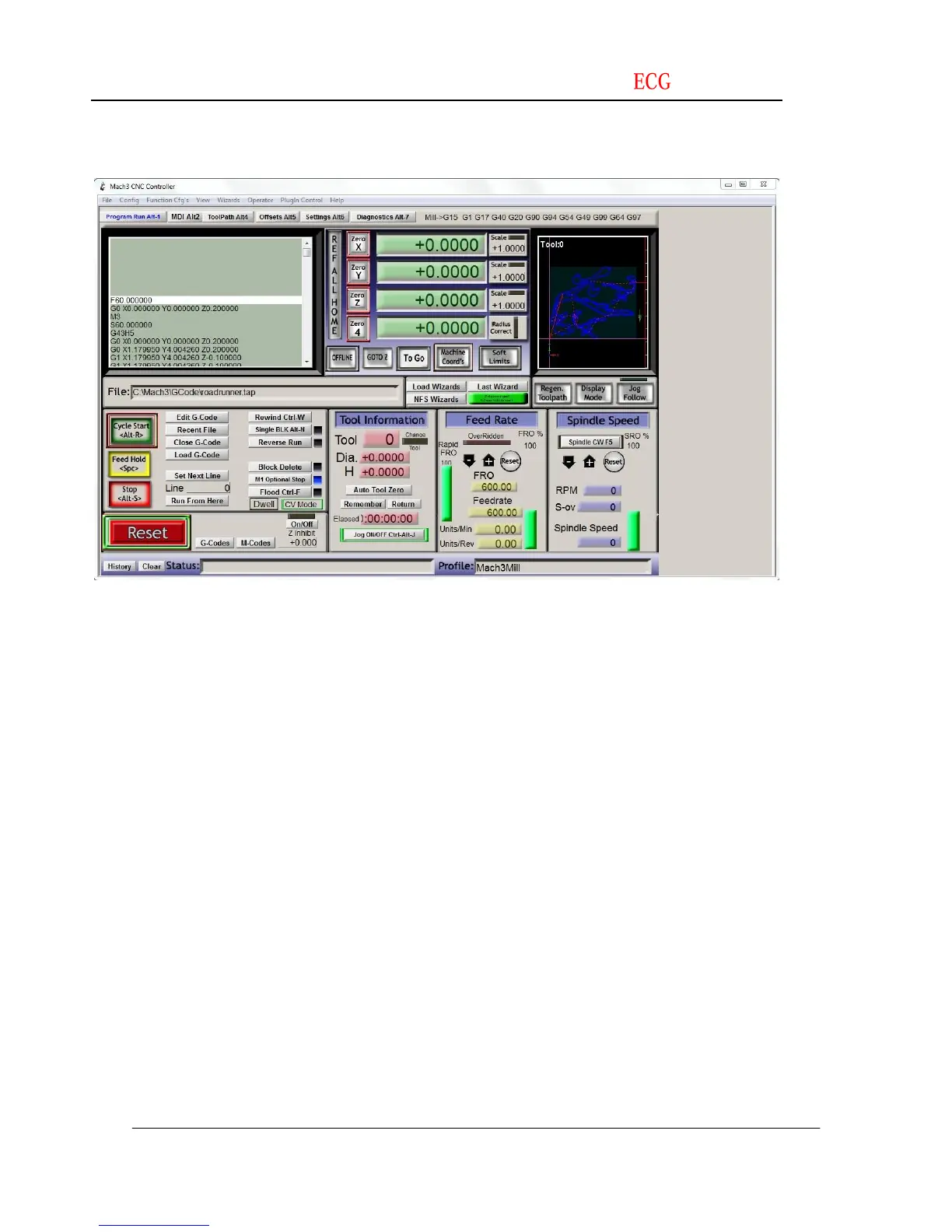

Figure 21: After opening the G-Code, if the “Reset” button below flashes, please press the “Reset” button, it will stop flashing,
and then press the “Cycle Start” to rerun the G-Code to test the TB6560 stepper drivers and motors.
Figure 21
